INSTALLATION

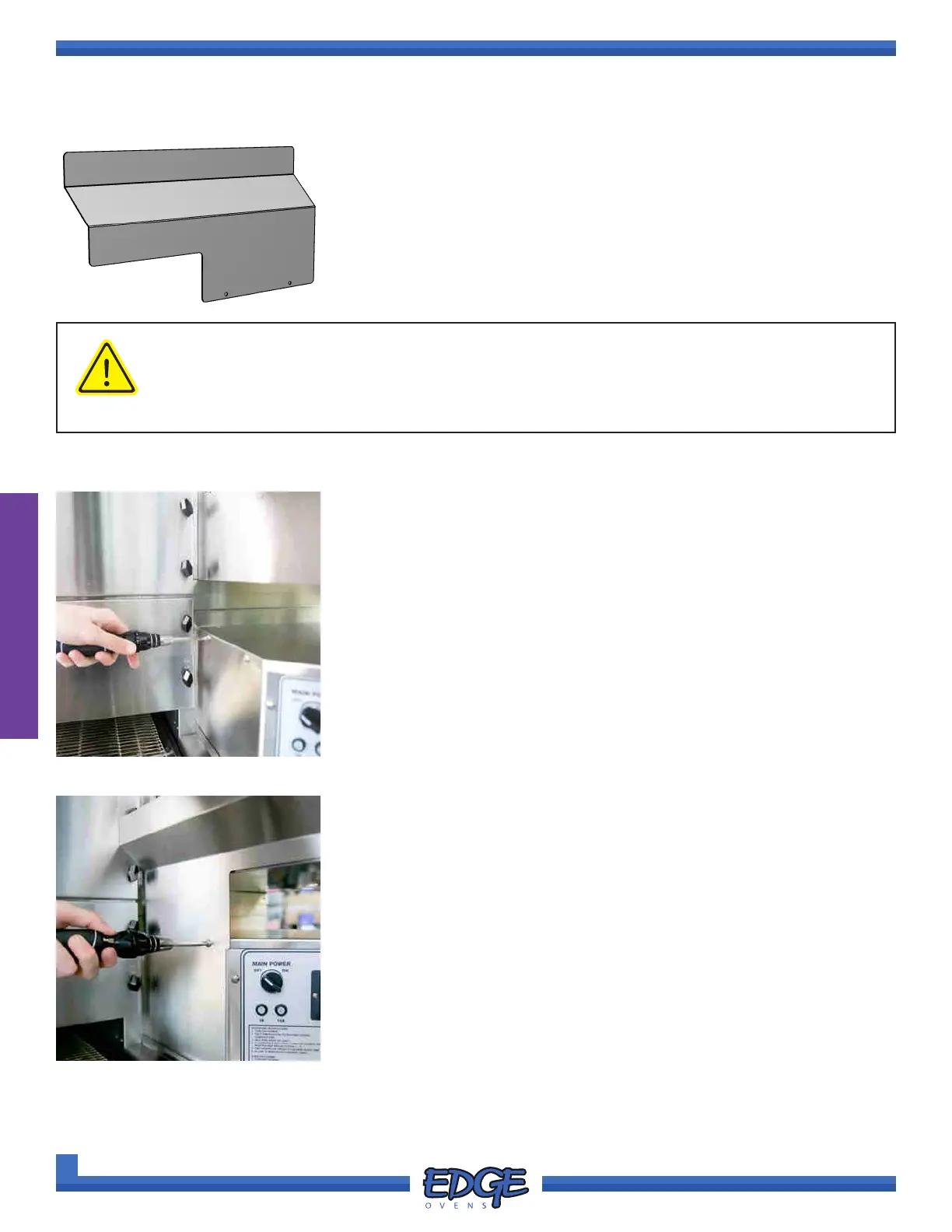

Heat shields are required when stacking two (2) or more ovens. They work
by deecting escaping heat from the lower oven(s), away from the underside
of the control cabinet(s) above.
HEAT SHIELDS
OVEN ASSEMBLY
Failure to install heat shields can result in heat damage to enclosed control cabinet
components. Part degradation or failure as result of improper installation is not
coverable under warranty.
CAUTION
1. Remove the HEAT SHIELD(S) from supplied hardware pack.
2. Using a #2 Phillips screwdriver, remove the two (2) front securing
screws from the front of the control cabinet lid. RETAIN SCREWS
FOR LATER USE. (Figure 2-94)
FIGURE 2-94
3. Align screw holes in heat shield with control cabinet lid holes and
install removed screws. (Figure 2-95)
FIGURE 2-95
