INSTALLATION
OVEN ASSEMBLY
BASE, LEGS & CASTORS ASSEMBLY

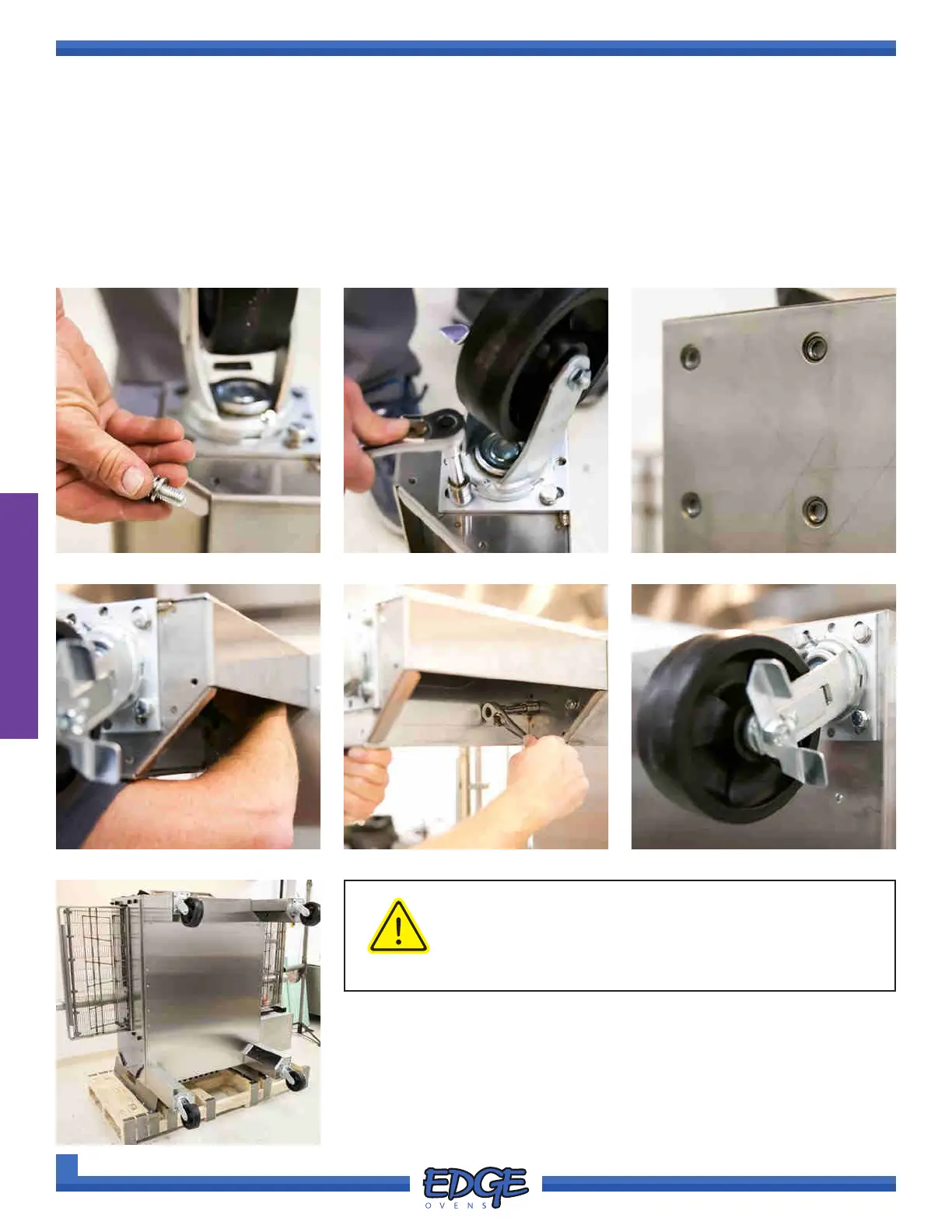

1. Unbolt the legs from the skid and unpack the braked castors.
2. Attach the castors to each leg using four (4) split locking washers and 3/8" bolts (Figure 2-5). Tightening
with a 9/16" socket and ratchet (Figure 2-6).
3. On the base side of the oven (Figure 2-7), align each leg to the sunken nuts and install using four (4) 3/8"
bolts, split locking washers and at washers, per leg (Figure 2-8 & Figure 2-9). If installing as part of a triple
stack oven, legs are not required and the castors should be tted directly to the oven base. (Figure 2-10)
FIGURE 2-5 FIGURE 2-6 FIGURE 2-7
FIGURE 2-8 FIGURE 2-9 FIGURE 2-10
FIGURE 2-11
Ensure all bolts are tight. Damage caused due to
failure to secure is not coverable under warranty.
CAUTION
