FIGURE 4-44
FIGURE 4-43
GAS CONVERSION

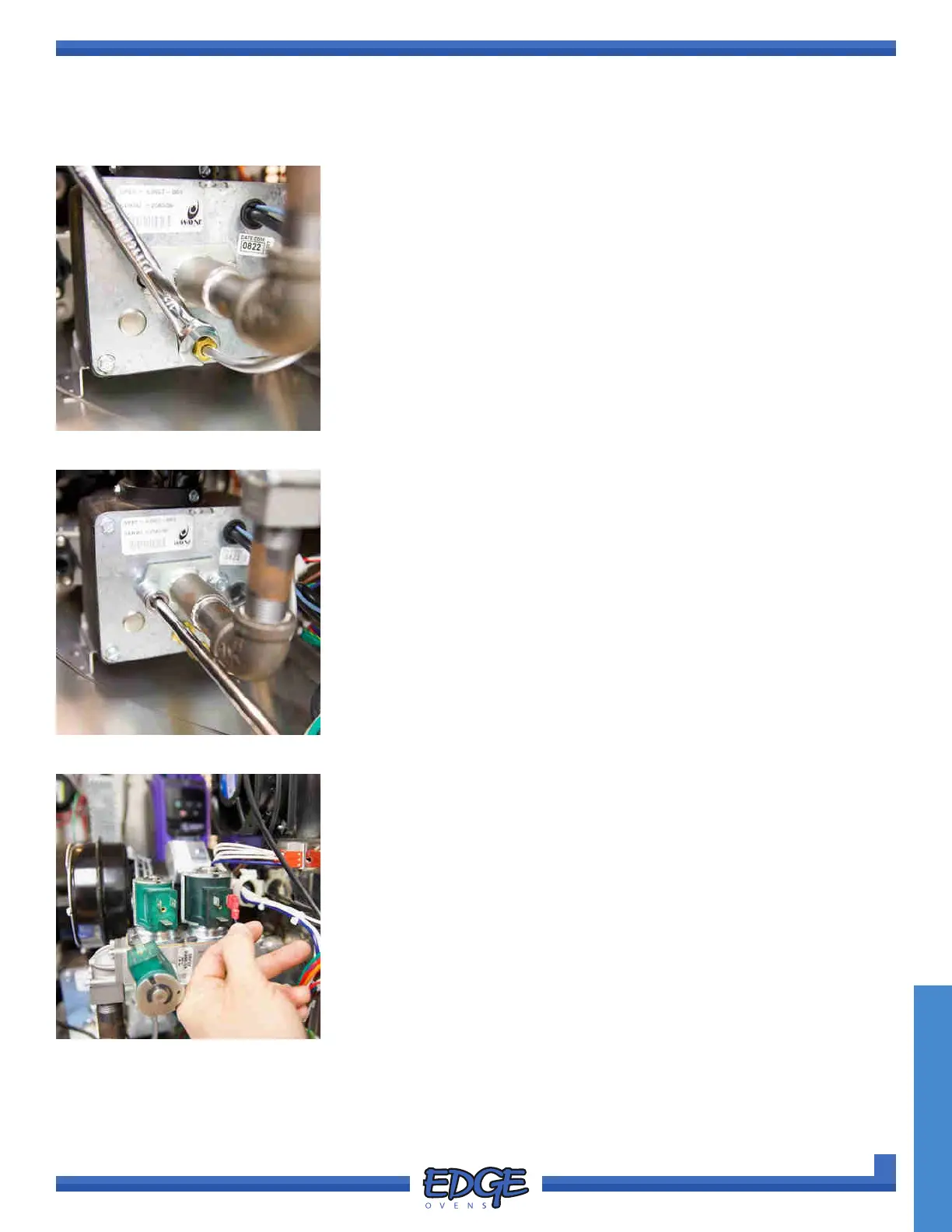

INSTALLING THE GAS TRAIN
4. Install the pilot tube and tighten with a 1/2” wrench. (Figure 4-43)
5. Complete the installation of the two (2) 1/2” nuts which secure the
gas valve train to the burner face plate using a 1/2” socket with long
extension and ratchet. (Figure 4-44)
6. Carefully install the spade connectors (or plugs) back on the gas valve.
(Figure 4-45)
PILOT
T1. White & Green/Yellow
T2. Blue
MAIN (HIGH FLAME)
T1. Red (2 Wire)
T2. White (2 Wire)
BYPASS
T1. Green (2 Wire)
T2. White
FIGURE 4-44
