SERVICE
GAS CONVERSION

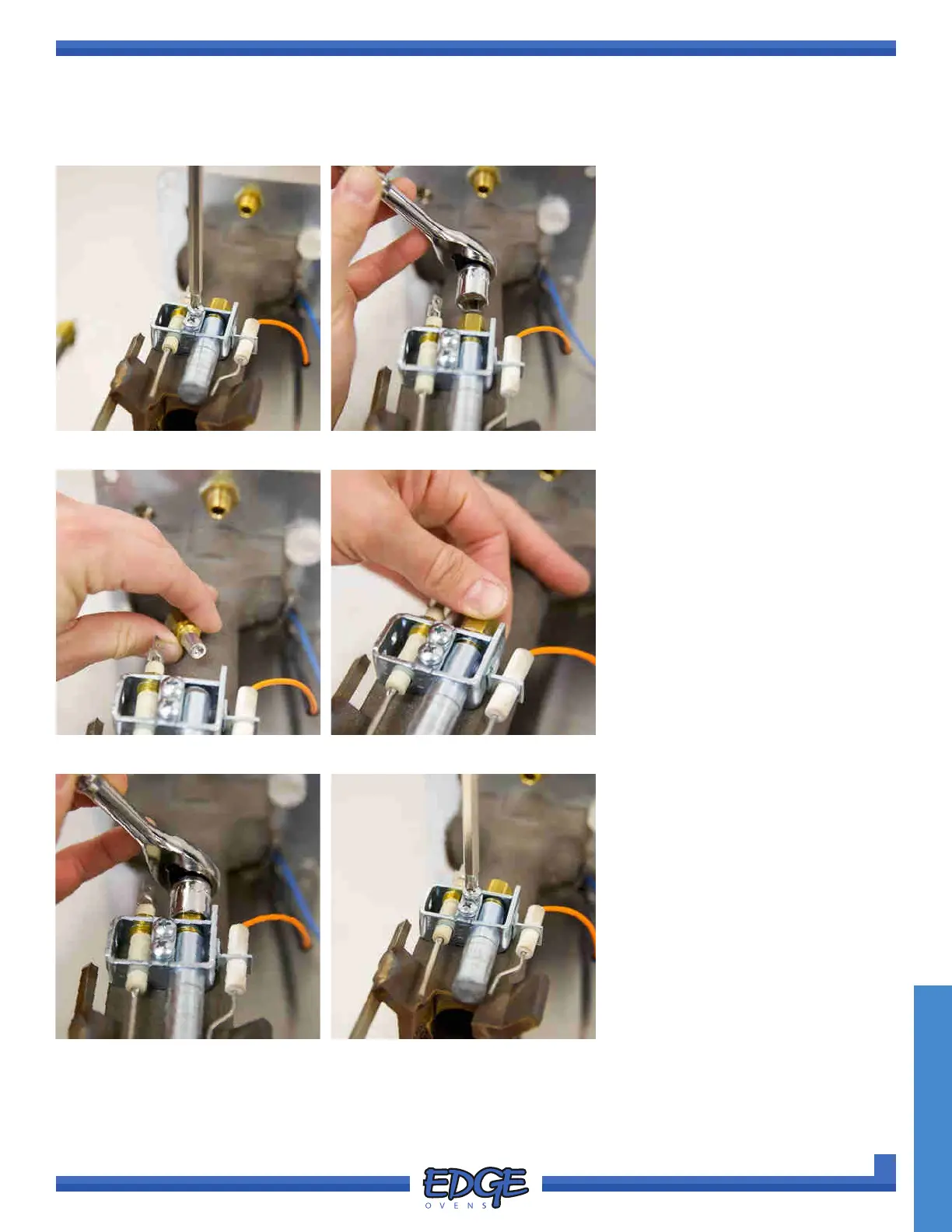

REPLACING THE PILOT ORIFICE (CONTINUED)
FIGURE 4-21
8. Install the replacement PILOT
ORIFICE and tighten by hand.
(Figure 4-23 & Figure 4-24)
FIGURE 4-25
FIGURE 4-23 FIGURE 4-24
FIGURE 4-26
FIGURE 4-22
6. Install the two (2) removed
screws back into the pilot
assembly. DO NOT OVER
TIGHTEN, this will distort and
crush the bracket. (Figure 4-21)
7. Using a 1/2” socket and ratchet,
remove the PILOT ORIFICE
from the pilot assembly. (Figure
4-22)
9. Tighten the PILOT ORIFICE
using a 1/2” socket and ratchet.
DO NOT OVER TIGHTEN.
(Figure 4-25)
10. Remove the two (2) screws from
the pilot assembly. (Figure 4-26)
