INSTALLATION
OVEN ASSEMBLY
STANDARD CONVEYOR DRIVE SYSTEM ASSEMBLY (CONTINUED)

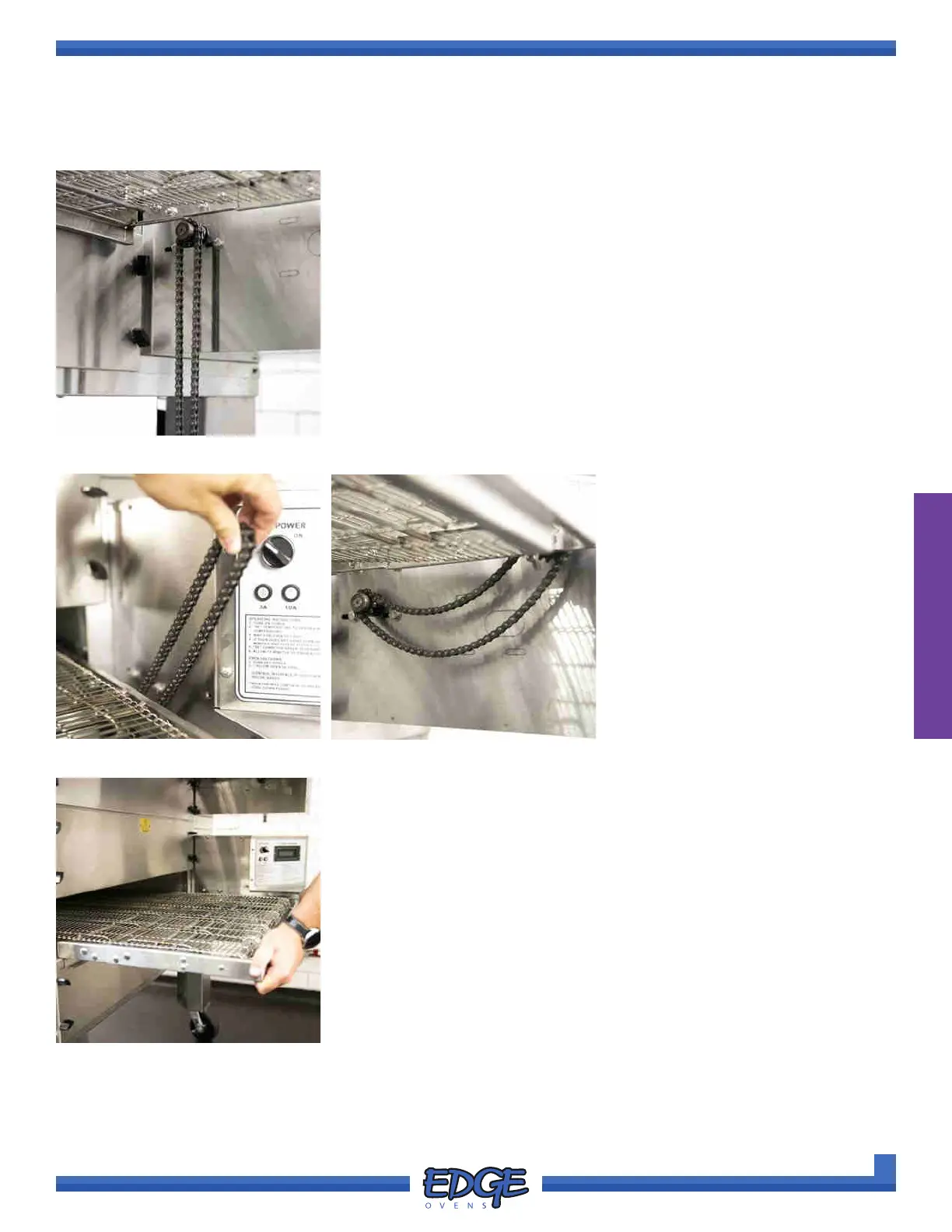

5. Install the conveyor drive chain on conveyor motor sprocket. (Figure
2-63)
FIGURE 2-63
FIGURE 2-64
6. Take the opposing end of the
conveyor drive chain and install
on the conveyor belt sprocket.
(Figure 64 and Figure 65)
FIGURE 2-66
7. Lift and pull the conveyor oven back out of the oven, ensuring that the
crumb pan support bracket sits externally to the oven mouth. If seated
correctly the conveyor frame will sit at. (Figure 2-66)
The conveyor frame should protrude equally from each end of the
oven chamber and the right hand side of the conveyor frame should sit
ush with the control cabinet end.
FIGURE 2-65
