INSTALLATION
OVEN ASSEMBLY
SPLIT-BELT CONVEYOR DRIVE SYSTEM ASSEMBLY (CONTINUED)

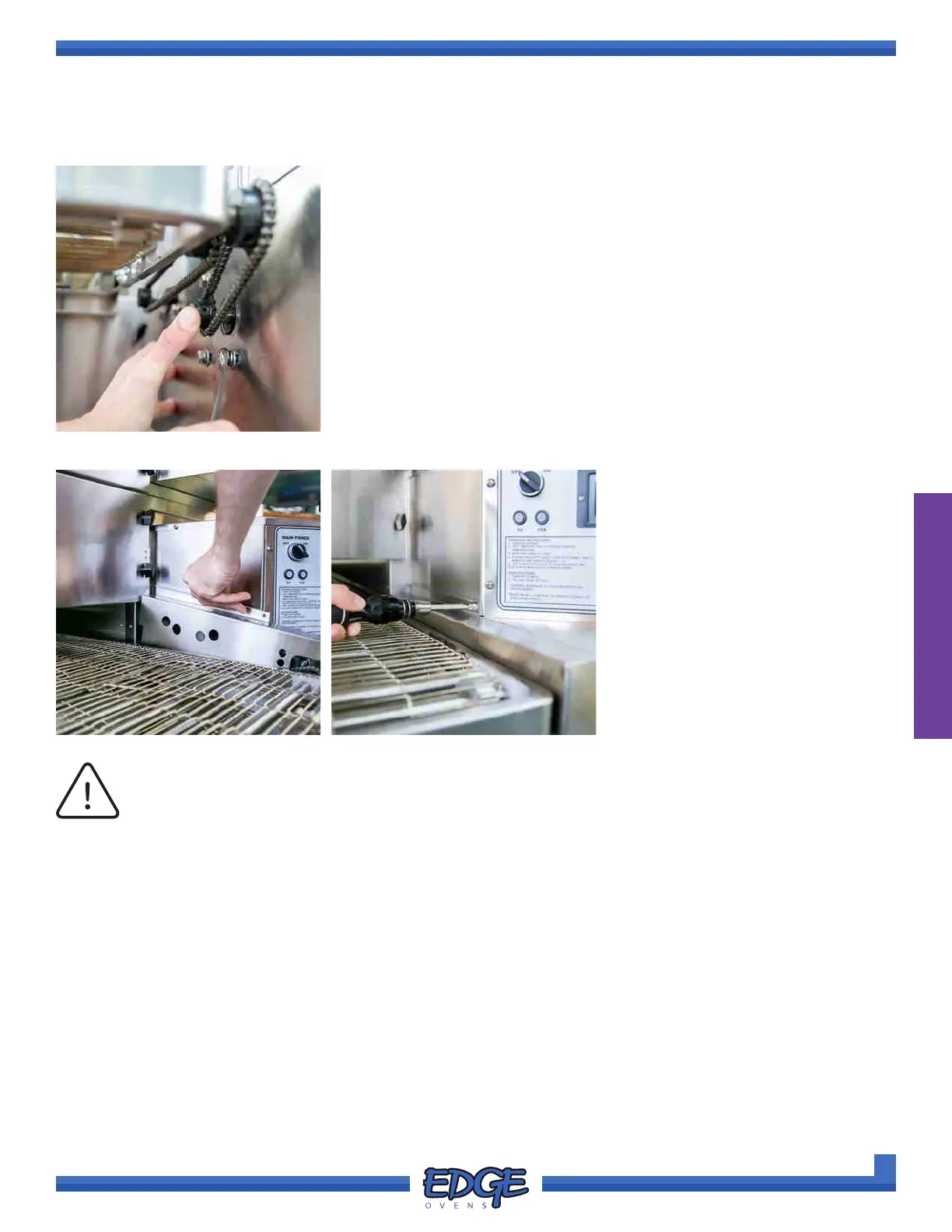

FIGURE 2-84
9. Remove the slack from the conveyor drive chains by pushing each
conveyor motor towards the oven mouth and tightening the previously
loosened 1/2” x 1/4-20 bolts securing bolts. DO NOT exceed 40 inch-
lbs torque on the motor bolts. (Figure 2-84)
FIGURE 2-85
10. Install the chain guard and secure
in place with the previously
removed #2 Phillips screw. (Figure
2-85 and Figure 2-86)
Removing and reversing the belt when changing the oven belt direction is NOT required. The
conveyor belting used for the EDGE Oven is C-CureEdge, a product of Wire Belt Company of
America. This belting is bi-directional.
NOTICE
FIGURE 2-86
