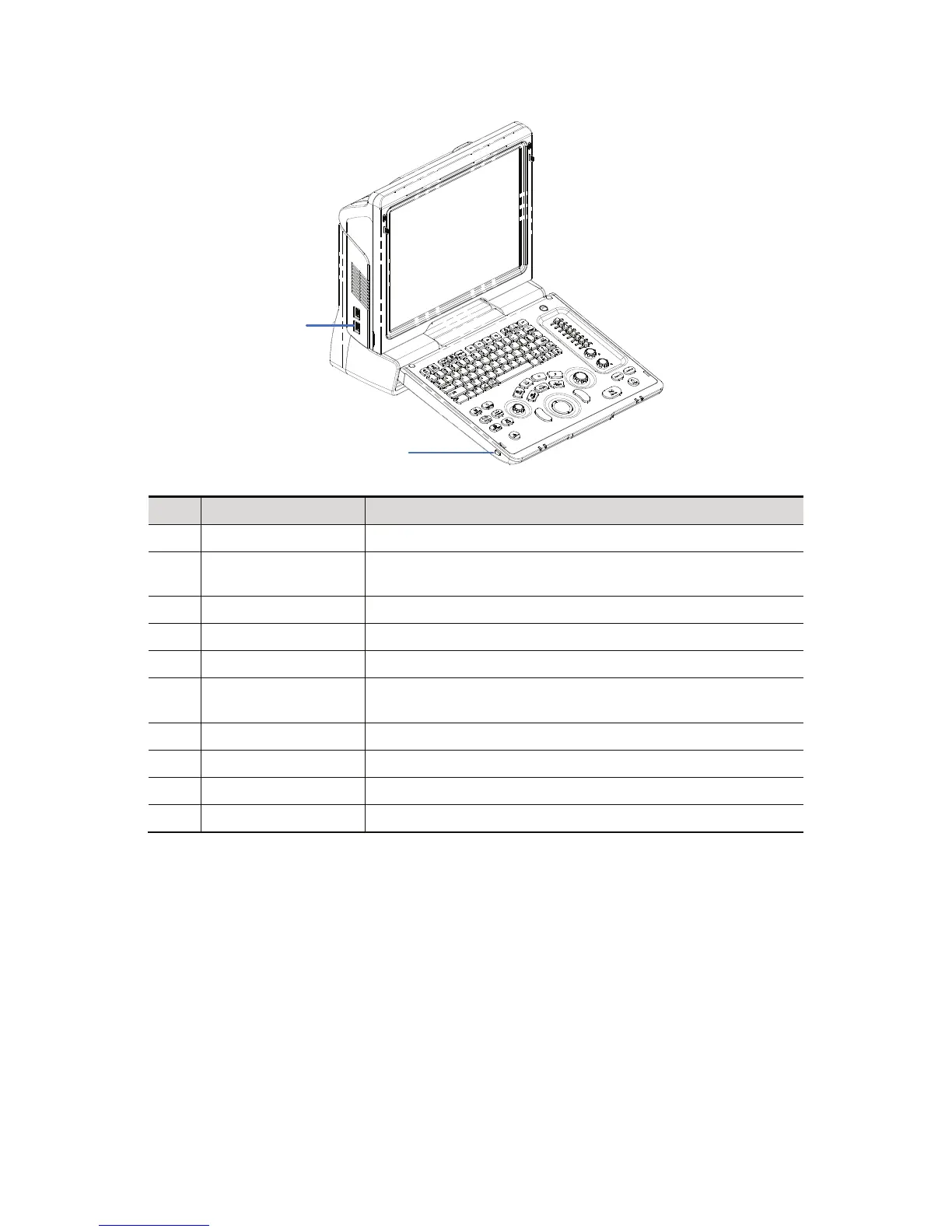

2-6 System Overview
No. Name Function
1 Probe holder Used to place the probe
2 LCD Display
Displays the image and parameters during scanning (tilt angle
adjustable)
3 Control Panel Refer to the 2.6.3 Control Panel.
4 Lock button (x2) Press to release the control panel while it!s folded
5 Handle Used to carry the machine
6 I/O Panel
Interface panel used for inputting and outputting signals, refer
to 2.6.1 I/O Panel.
7 Power supply panel Electrical port panel, refer to 2.6.2 Power Supply Panel.
8 Probe ports Used to connect the probe
9 Battery cover Used to hold the battery
10 USB ports Used to connect USB devices
10
4
