3.4 Connecting / Disconnecting a Probe
CAUTION:
1.
When connecting or disconnecting a probe, place it in a
proper position, to prevent the probe from falling off or
becoming damaged.
2.
Only use the probes provided by XV. Aftermarket
probes may result in damage or cause a fire.
3.4.1 Connecting a Probe
WARNING:
The probes, cables and connectors are in proper operating
order and free from surface defects, cracks and peeling. Using a
defective probe may cause electric shock.

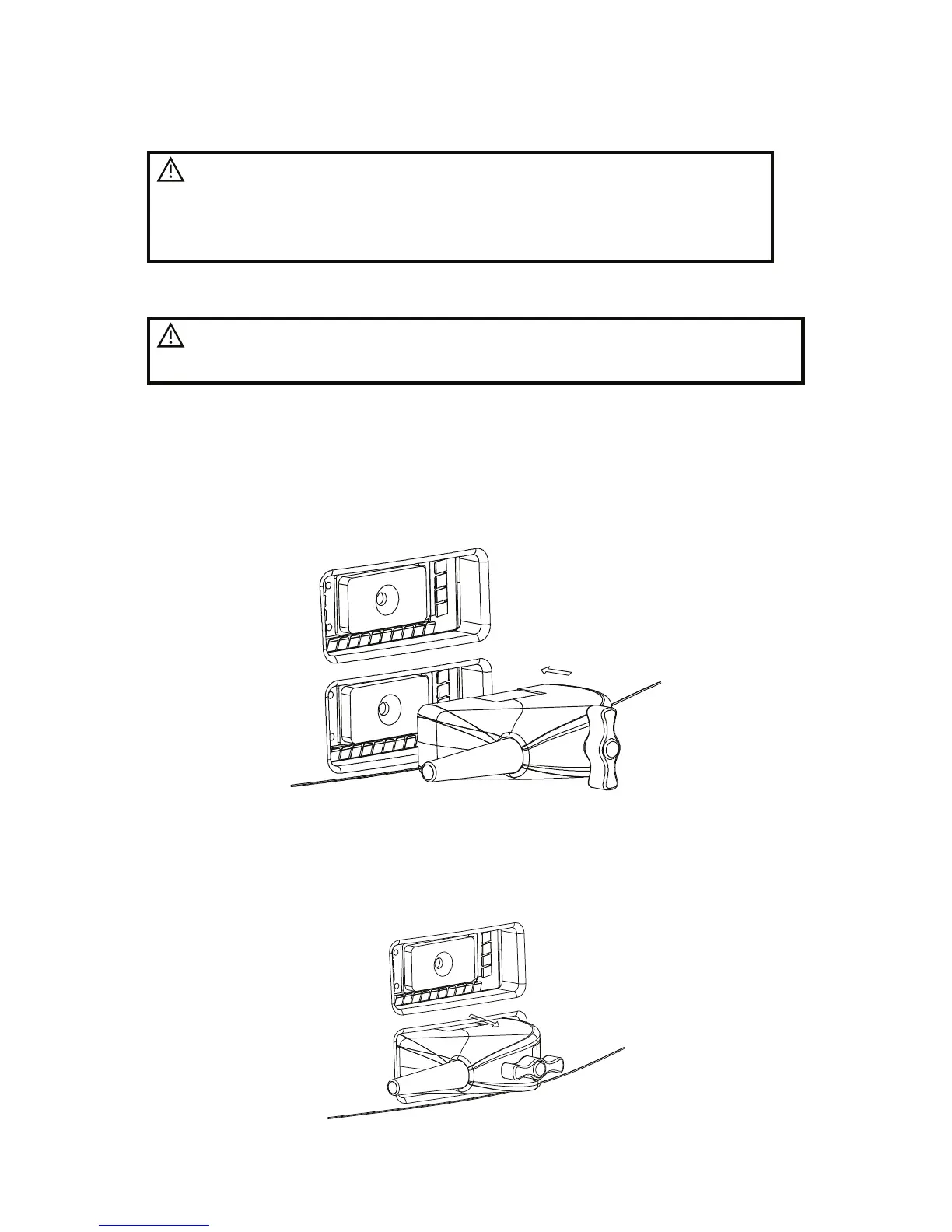

1. Check if the locking lever on the probe is locked, or unlock it by turning it
counterclockwise to horizontal.
2. Insert the probe connector into the port with the probe cable pointing to the holder.
3. Lock the lever by turning it clockwise.
4. Place the cable properly to avoid being treaded or wrapping with other devices. DO
NOT allow the probe head to hang free.
3.4.2 Disconnecting a Probe
1. Turn the probe lock lever counterclockwise to release the connector.
2. Pull the connector straight out.
3. Keep the probe in safety and care.
