3. Installation

TEC 2000 Installation & Operation Manual E2K-405-0902

3-12

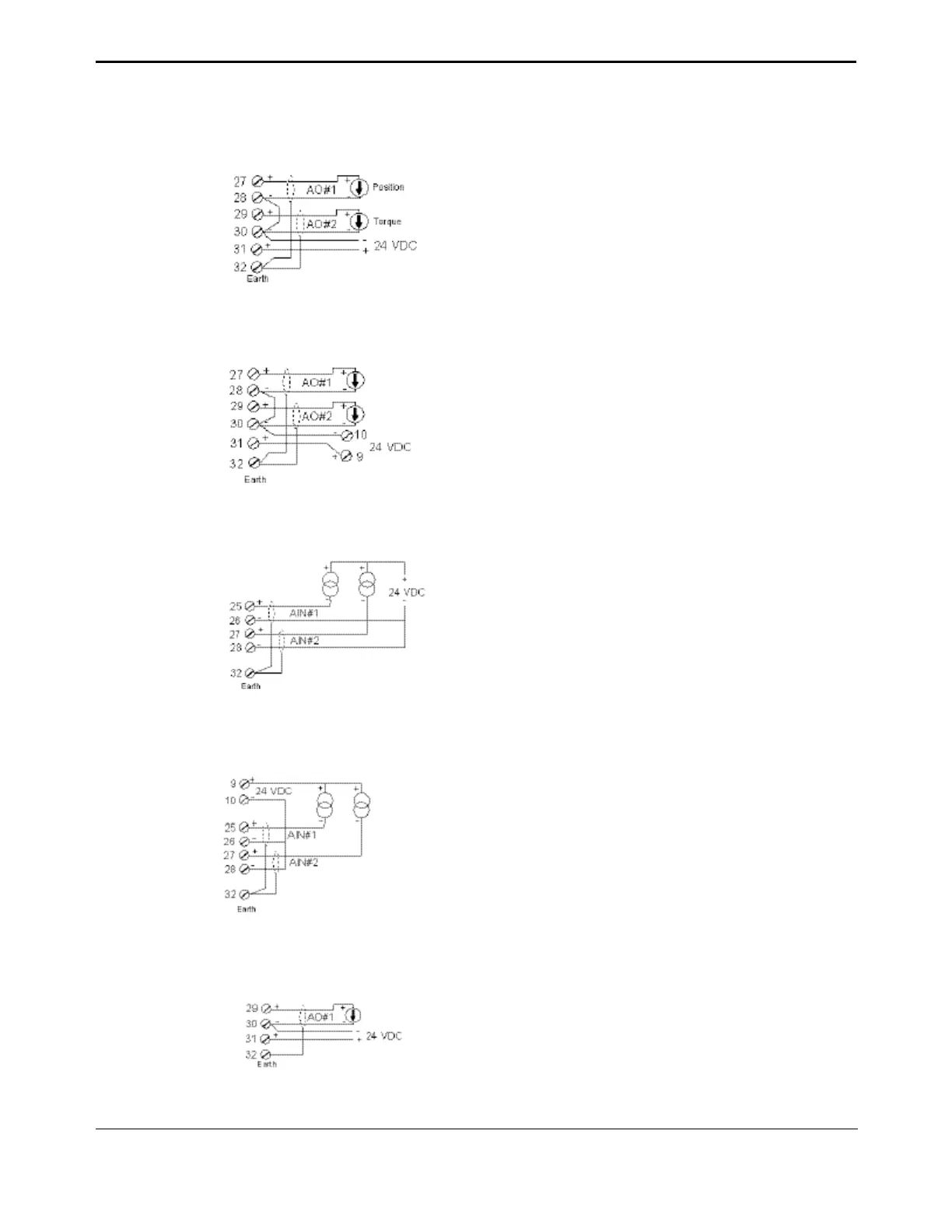

Figure 3-9 Futronic – Analog Output with External Power Supply

Figure 3-10 Futronic – Analog Output with Internal Power Supply

Figure 3-11 Controlinc – Analog Input with External Power Supply

Figure 3-12 Controlinc – Analog Input with Internal Power Supply

Figure 3-13 Controlinc – Analog Output with External Power Supply
