7. Maintenance

TEC 2000 Installation & Operations Manual E2K-405-0902

7-2

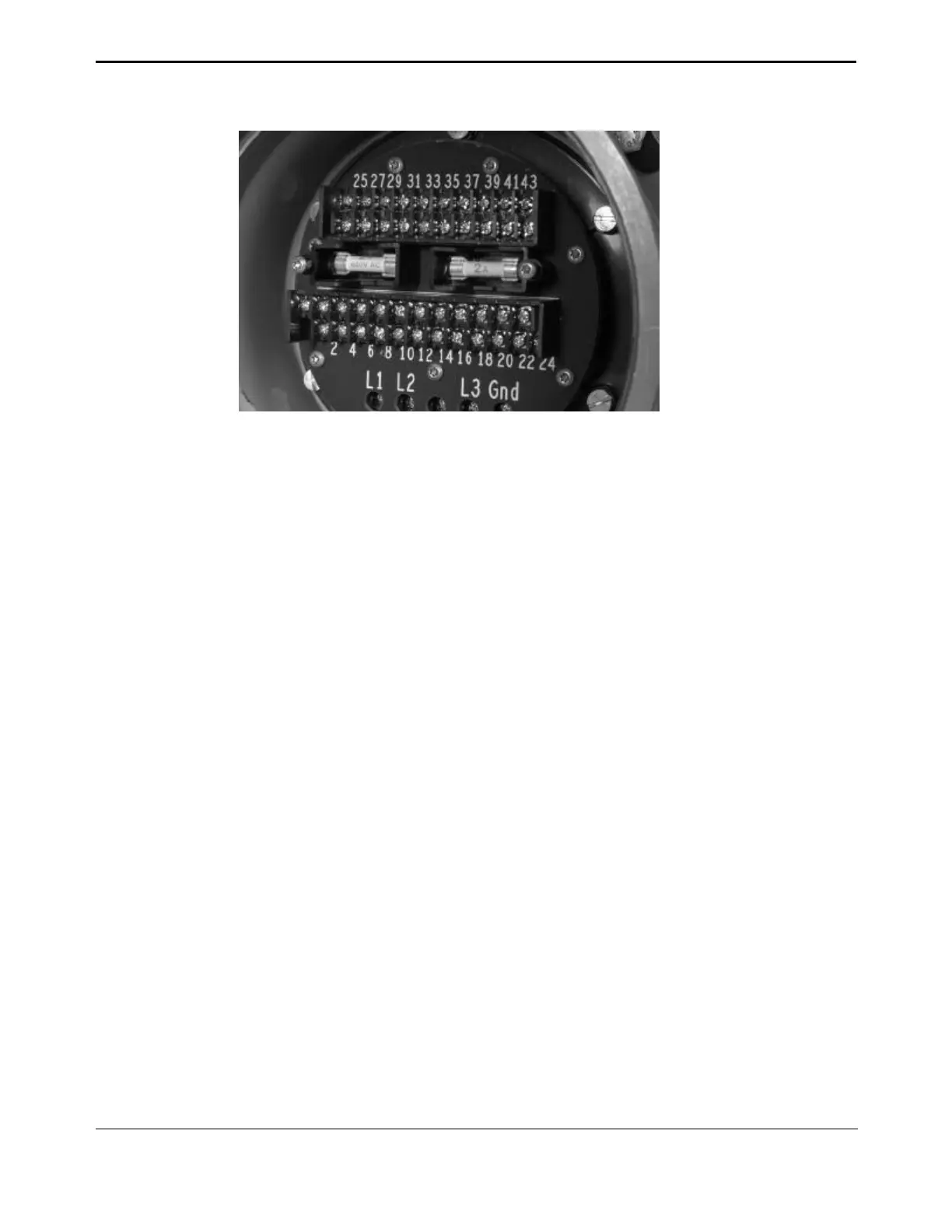

Figure 7-1 Fuses in the STC

7.5. Battery Replacement – “Clicker”

1. Insert a coin in the slot on the right hand corner of the key ring end and twist.

2. Slide battery to remove

3. Replace battery Panasonic Part No. CR2031 or equal.
