5. Customizing Actuator Settings
TEC 2000 Installation & Operation Manual E2K-405-0902
5-28

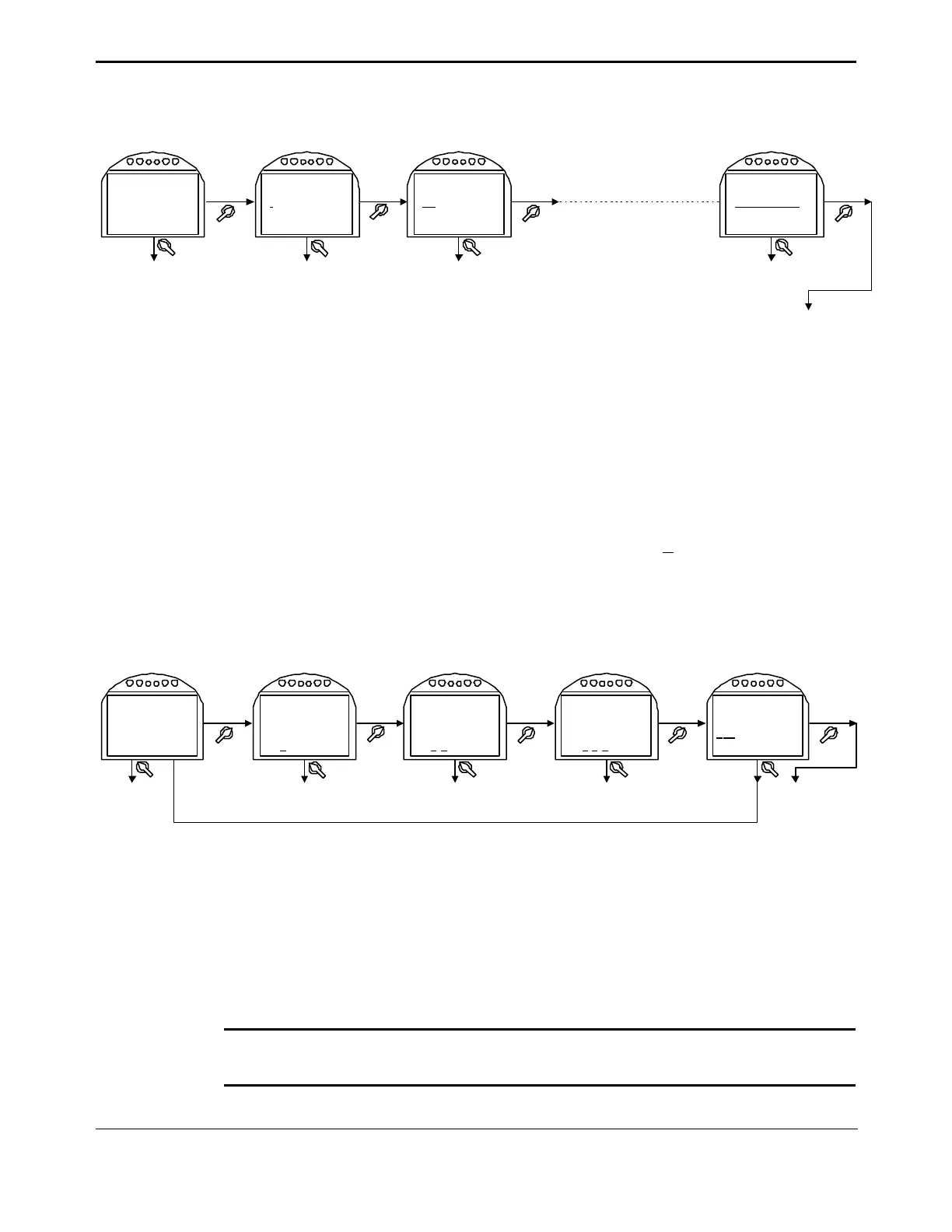

Figure 5-15 Tag Name Setup
Goto next display
see Figure 5-4
TAG NAME
SETUP?
ACCEPT?
-
NO
YES
ACCEPT?
M-
NO
YES
ACCEPT?
MOV-123456
NO
YES
YES
NO
Goto next display
see Figure 5-4
sp, -, 0-9, A-Z sp, -, 0-9, A-Z sp, -, 0-9, A-Z
Continue this process
for 16 characters
5.6.11. Passcode Setup
The passcode may be changed via the passcode setup sequence.
1. At the “PASSCODE SETUP?” prompt, answer “YES.”
2. Use the control knob (NO) to increment the data entry selections of 0-9 and A-Z for each
character. The passcode consists of 3 characters.
3. Use the selector knob (BACK) to make changes to the previous characters in the
passcode while entering the data.
4. Answer “YES” to the “ACCEPT PASSCODE CHARACTER X? X” prompt.
5. Repeat Step No. 2 and 3 until all three characters have been entered.
NOTE: This new passcode must be entered the next time changes are made.
Figure 5-16 Passcode Setup
Goto next
display see
Figure 5-4
PASSCODE
SETUP?
ACCEPT
PASSCODE
CHARACTER
1? 0
NO
YES
ACCEPT
PASSCODE
CHARACTER
2? 0 0
NO
YES
NO
YES
YES
NO
Goto next
display see
Figure 5-4
0-9, A-Z 0-9, A-Z
ACCEPT
PASSCODE
CHARACTER
3? 0 0 0
NO
YES
0-9, A-Z
IS PASSCODE
RECORDED?
000
5.6.12. Reload Factory Settings
Factory default settings are saved in program memory and may not be changed. When
factory settings are reloaded, the factory default settings are transferred from the memory to
the EEPROM. This reloading overwrites any changes made by the user.
Factory default settings are detailed in Table 4-5. Factory settings do not overwrite valve
travel limits or analog calibration.
CAUTION: CLEAR LOGS only clears the alarm log, torque profile, and resets the
operation log.
