5. Customizing Actuator Settings
TEC 2000 Installation & Operation Manual E2K-405-0902
5-11

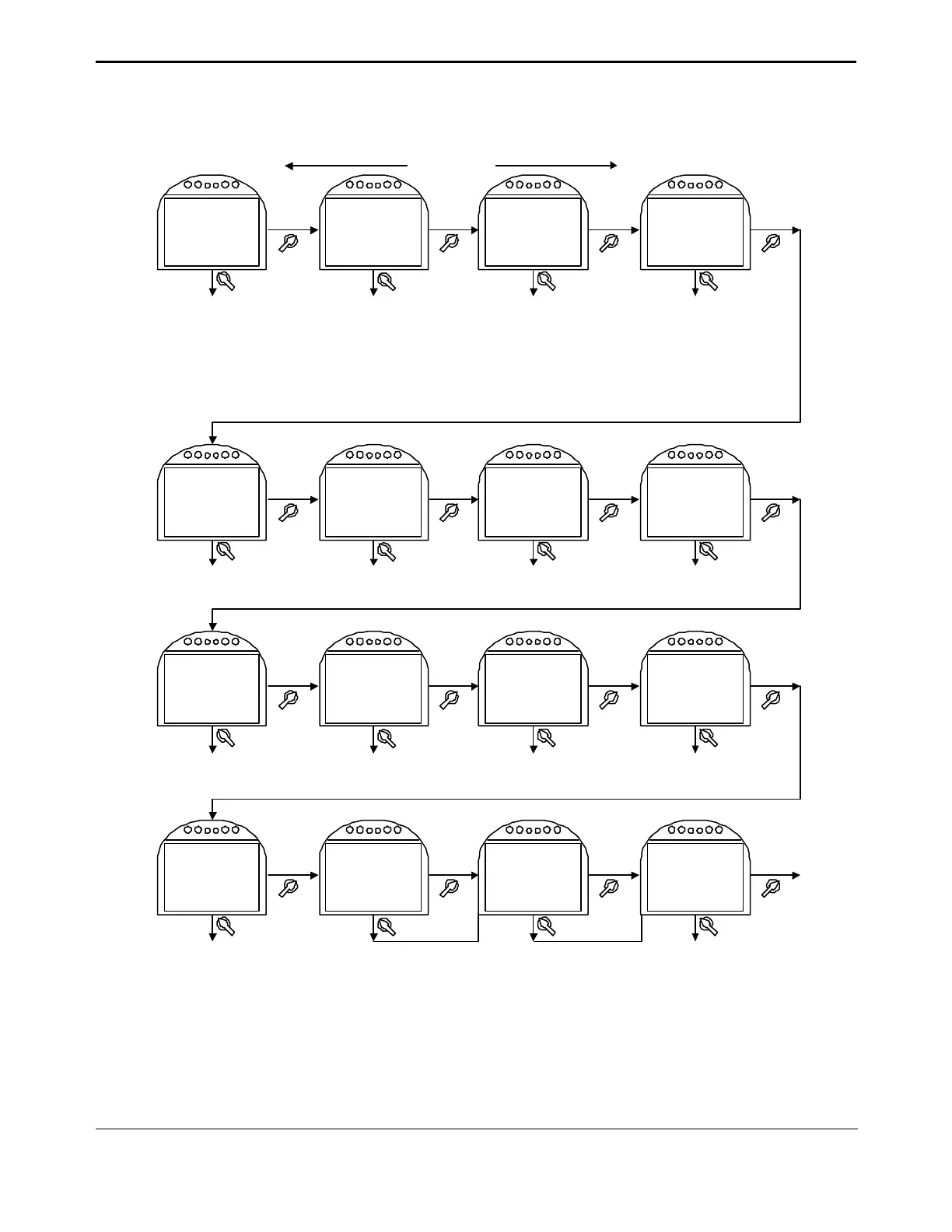

Figure 5-6 Valve Control Setup
Goto next display
see Figure 5-4
VALVE
CONTROL
SETUP?
CONTROL
MODE
THREE-WIRE
NO
YES
CLOSE
DIRECTION
CLOCKWISE
NO
YES
POSITION
SEAT
NO
YES
BACK NEXT
YES
NO
TORQUE
BACKSEAT
OFF
CLOSE
TORQUE 50%
NO
YES
OPEN
TORQUE 50%
NO
YES
LOCAL
CONTROL
MAINTAINED
NO
YES
YES
NO
REMOTE
CONTROL
MAINTAINED
TORQUE
RETRY OFF
NO
YES
REMOTE
DISPLAY 1
OFF
NO
YES
YES
NO
TWO-WIRE
THREE-WIRE
FOUR-WIRE
MULTI-PORT VALVE
LOCAL IrDA PORT
LOCAL RS485 PORT
ANALOG ------ ignored if ACM not installed
NETWORK---- ignored if ACM not installed
Associated choices are listed below each setting.
CLOSE DIRECTION
COUNTERCLOCKWISE
TORQUE SEAT
TORQUE
BACKSEAT ON
15 to 100%
in 5% increments
15 to 100%
in 5% increments
LOCAL CONTROL
MOMENTARY
REMOTE
DISPLAY 2
OFF
NO
YES
REMOTE CONTROL
MOMENTARY
TORQUE
RETRY ON
REMOTE
DISPLAY 1 ON
REMOTE
DISPLAY 2 ON
CLOSE LED
GREEN
OPEN LED
RED
CLEAR
ALARM LOG?
NO
YES
RESET
OPERATION
LOG?
NO
YES
YES
NO
ARCHIVE
TORQUE
PROFILE?
NO
YES
CLOSE LED RED
OPEN LED GREEN
Goto next display
see Figure 5-4
To Next Page
