4. Operation
TEC 2000 Installation & Operation Manual E2K-405-0902
4-11

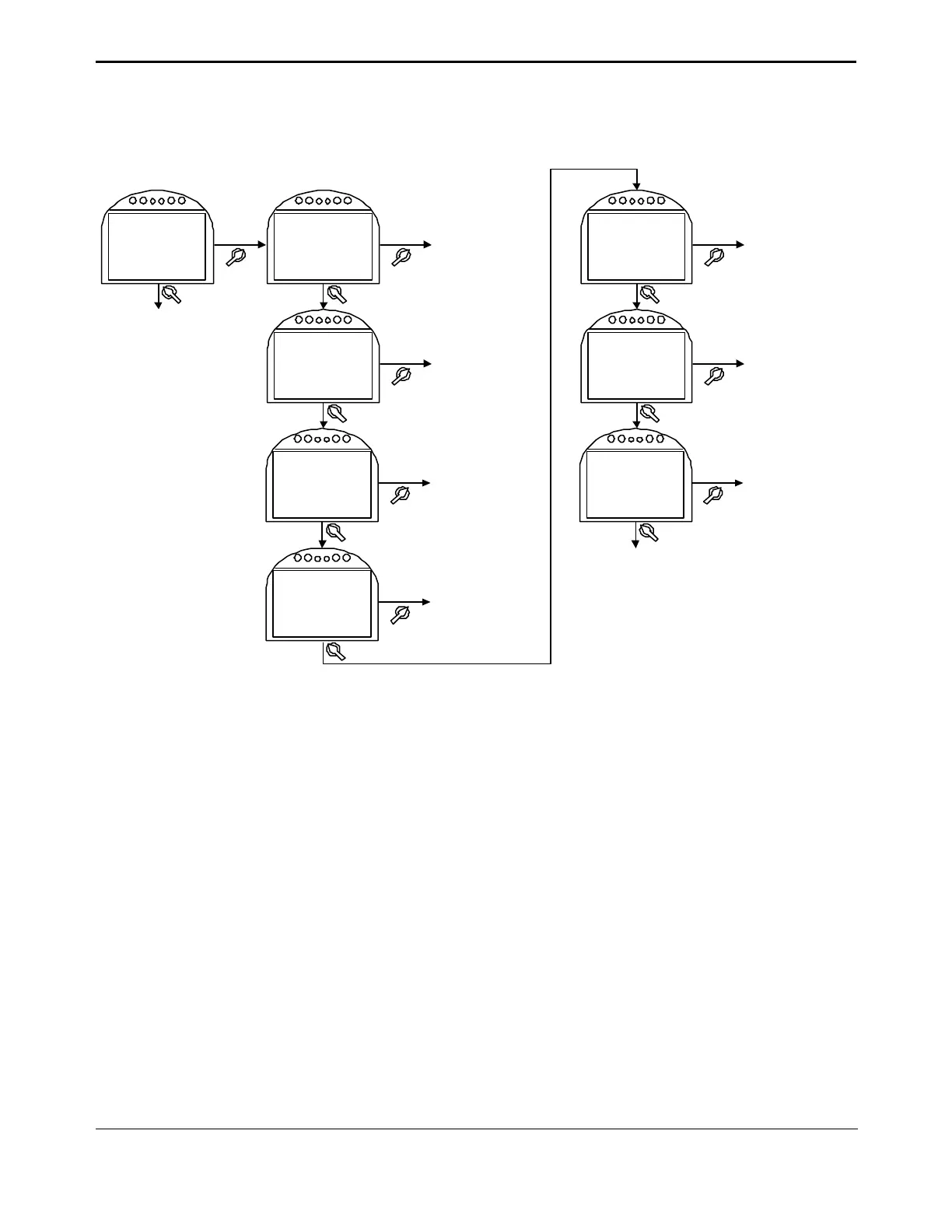

Figure 4-5 View Settings
See Figure 5-6
See Figure 5-9
See Figure 5-10
See Figure 5-11
See Figure 5-12
See Figure 5-13
See Figure 5-14
Go to next display
see Figure 5-1
DISPLAY
SETTINGS?
VALVE
CONTROL
SETUP?
NO
YES
NO
YES
DISCRETE
INPUT
SETUP?
NO
YES
DISCRETE
OUTPUT
SETUP?
NO
YES
INHIBIT AND
ESD SETUP?
NO
YES
TWO-SPEED
TIMER
SETUP?
NO
YES
ANALOG
SETUP?
NO
YES
NETWORK
SETUP?
NO
YES
Go to next display
see Figure 5-1
4.5. Local Control Operation
To locally control the actuator via the LDM or the RDM:
1. Exit “SETUP” mode if applicable.
2. Place the selector knob in the LOCAL position.
NOTE: The actuator is shipped configured for inching mode unless specified at the time order
is placed; i.e. the actuator is shipped in the “Maintained” mode.
Local Maintained Inching Mode
3. Place the control knob in either the OPEN or CLOSE position and continue to hold. After
0.5 seconds the actuator will move in the open or close direction.
4. Release the knob to stop the actuator movement. The knob will return to the neutral
position.
