5. Customizing Actuator Settings
TEC 2000 Installation & Operation Manual E2K-405-0902
5-22
To calibrate analog outputs, the user must connect a calibrated precision 4-20mA current
meter to Terminals 27(+) and 28(-) for AO#1 or Terminals 29(+) and 30(-) for AO#2

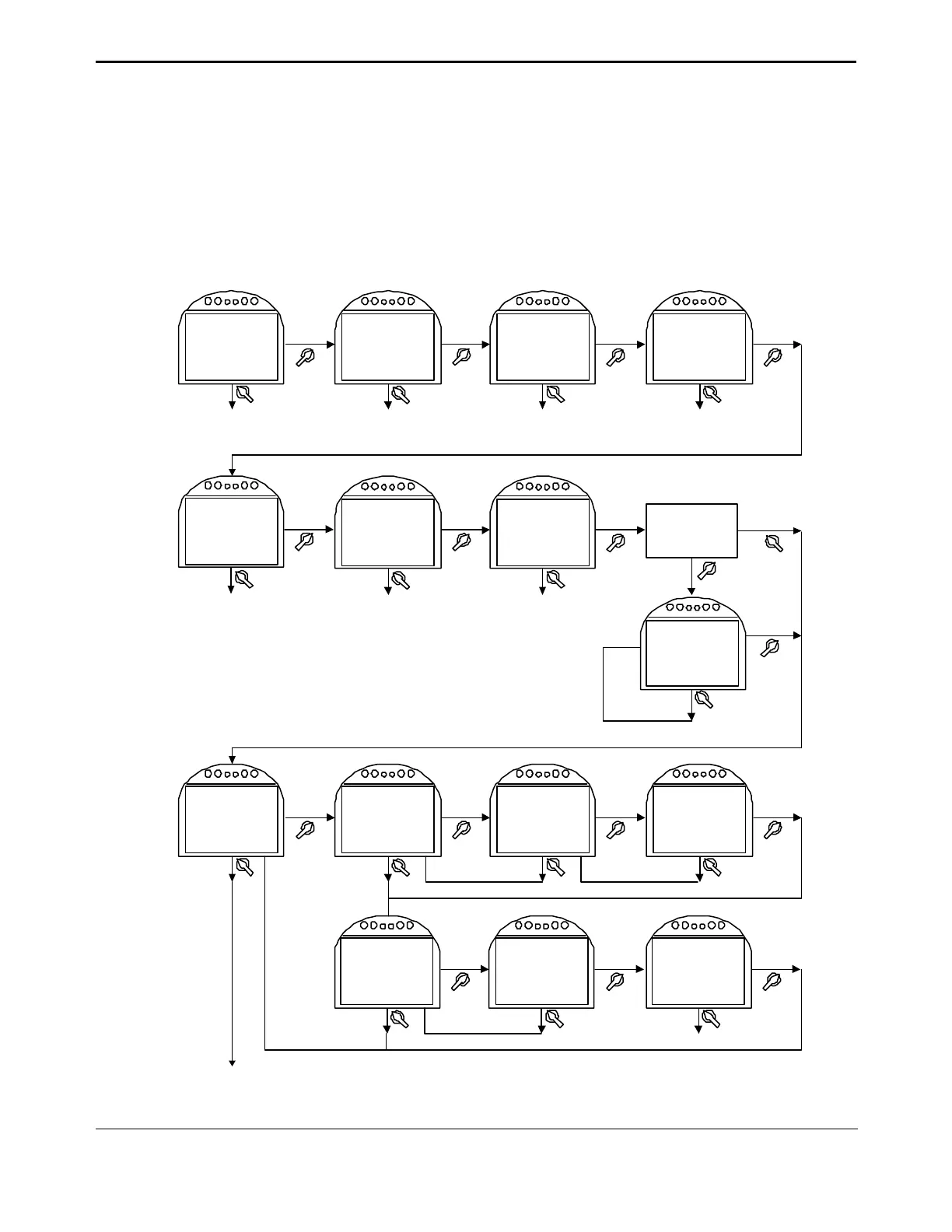

Figure 5-13-1 Analog Setup
NO
YES
NO
YES
NO
YES
YES
NO
NOTE: The actuator senses that the Futronic ACM is installed and adjusts the
display sequence to display only one input
CALIBRATE
AIN#1 4-20MA?
CALIBRATE
4MA?
4MA
REFERENCE
APPLIED?
ACCEPT 4MA
SETTING?
See Figure 5-13-2
NO
YES
NO
YES
YES
NO
CALIBRATE
20MA?
20MA
REFERENCE
APPLIED?
ACCEPT
20MA
SETTING?
ANALOG
SETUP?
CONTROL
BANDWIDTH =
2.0%
NO
YES
SPEED
BANDWIDTH
= 5.0%
NO
YES
YES
NO
Goto next display
see Figure 5-4
0.1 - 5.0%
0.1% increments
0.5 - 9.0%
0.5% increments
DELAY TIME
= 01 SEC
NO
YES
0-60 sec
1 sec increments
OUTPUT
POLARITY
CLOSE =
4MA?
STAYPUT ON
LOST
SIGNAL?
NO
YES
YES
NO
CLOSE = 20MA?
NO
YES
Go To
Position?
YES
0-100% in
1% increments
NO
INPUT
POLARITY
CLOSE =
4MA?
YES
NO
CLOSE = 20MA?
GO TO 0%
OPEN ON
LOST
SIGNAL?
