6. Troubleshooting
TEC 2000 Installation & Operation Manual E2K-405-0902
6-6
6.2.2. Display Torque Profile
Torque profile is data on the last stroke. Torque data is recorded at 10% intervals of valve
travel and is displayed for both open and close directions. Pullout torque is peak torque
recorded in the open direction from 0 to 9% while unseating the valve.
1. At the “DISPLAY TORQUE PROFILE?” prompt, answer “YES.”
2. Use the control knob (YES) to review the torque profiles. See Figure 6-3.
NOTE: Two positions of torque data are shown for each “YES” that is selected.

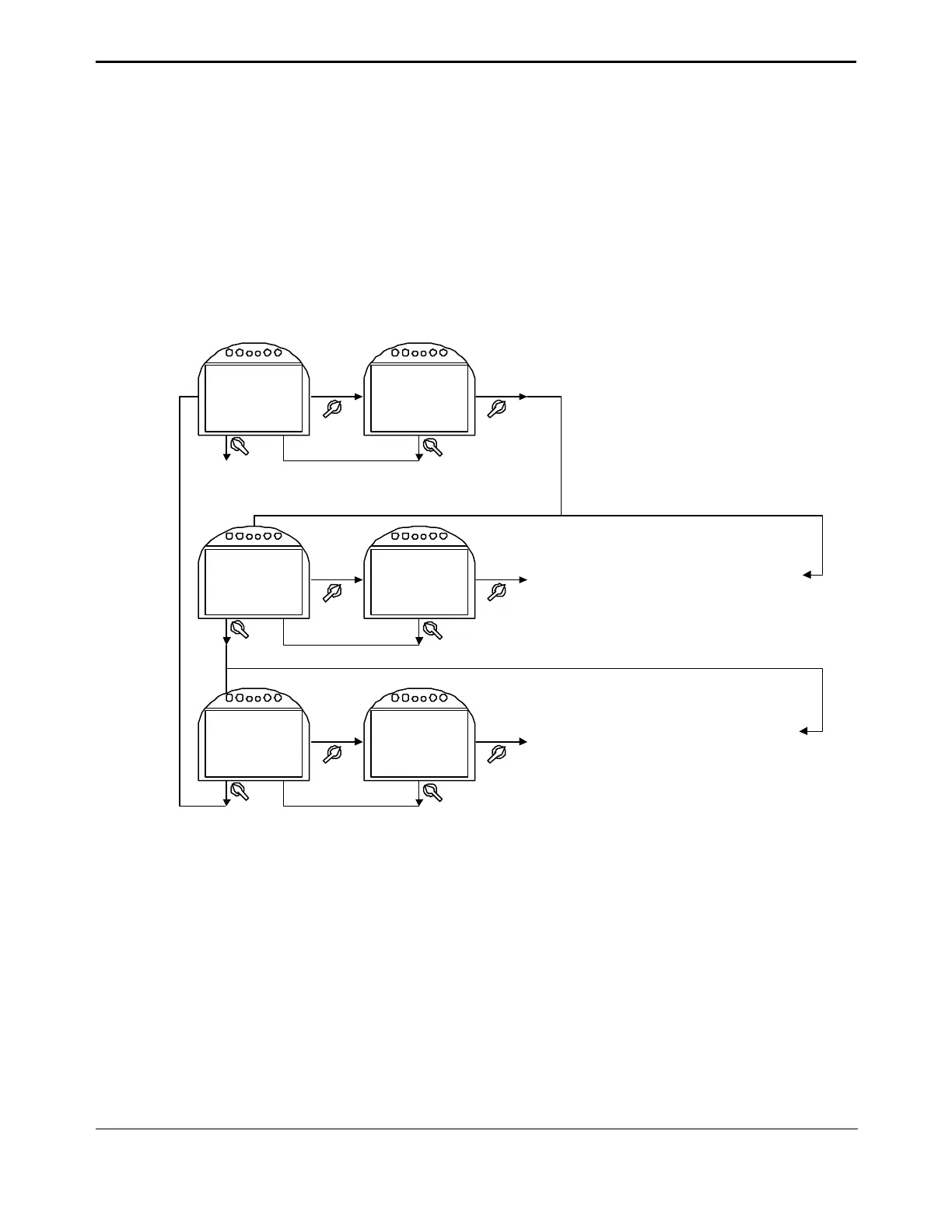

Figure 6-3 Display Torque Profile
NO
YES
YES
NO
DISPLAY
TORQUE
PROFILE?
PULL-OUT
TORQUE 75%
Goto next
display see
Figure 6-1
NOTE: Torque values are scrolled two
positions each time YES is entered.
@30 TORQUE = 45% @70 TORQUE = 40%
@40 TORQUE = 45% @80 TORQUE = 45%
@50 TORQUE = 50% @90 TORQUE = 40%
@60 TORQUE = 45%
@30 TORQUE = 45% @70 TORQUE = 40%
@40 TORQUE = 45% @80 TORQUE = 45%
@50 TORQUE = 50% @90 TORQUE = 40%
@60 TORQUE = 45%
NO
YES
YES
NO
DISPLAY
OPEN
TORQUE
PROFILE?
@10 TORQUE
= 45%
@20 TORQUE
= 45%
NO
YES
YES
NO
DISPLAY
CLOSE
TORQUE
PROFILE?
@10 TORQUE
= 45%
@20 TORQUE
= 45%
6.2.3. Display Torque Archive
Torque archive is displayed like Torque Profile. Torque archive is the data stored at the time
commanded by the user in the “CHANGE SETTINGS” mode. See Section 5.6.2, Valve
Control Setup and Figure 5-6.
1. At the “DISPLAY TORQUE ARCHIVE?” prompt, answer “YES.”
2. See Section 6.2.2 and Figure 6-3.
6.2.4. Display Operation Log
Operate log aids in troubleshooting because it contains the operation data accumulated
since the operation log was reset. See Figure 6-4.
