6. Troubleshooting
TEC 2000 Installation & Operation Manual E2K-405-0902
6-7
1. At the “DISPLAY OPERATE LOG?” prompt, answer “YES.”
2. Use the control knob (YES) to review the operate log
Motor starts value is the number of times the motor has been started. The strokes value
displayed is the number of full strokes from limit to limit. Stroke time can be measured as
follows:
1. Reset operation log
2. Stroke the valve. Stroke time is equal to the motor run time.
Motor run time is the total motor operational time.
To reset operation log:
1. Enter “Change Settings” mode.
2. Select “VALVE CONTROL SETUP?”
See Section 5.6.2, Valve Control Setup.

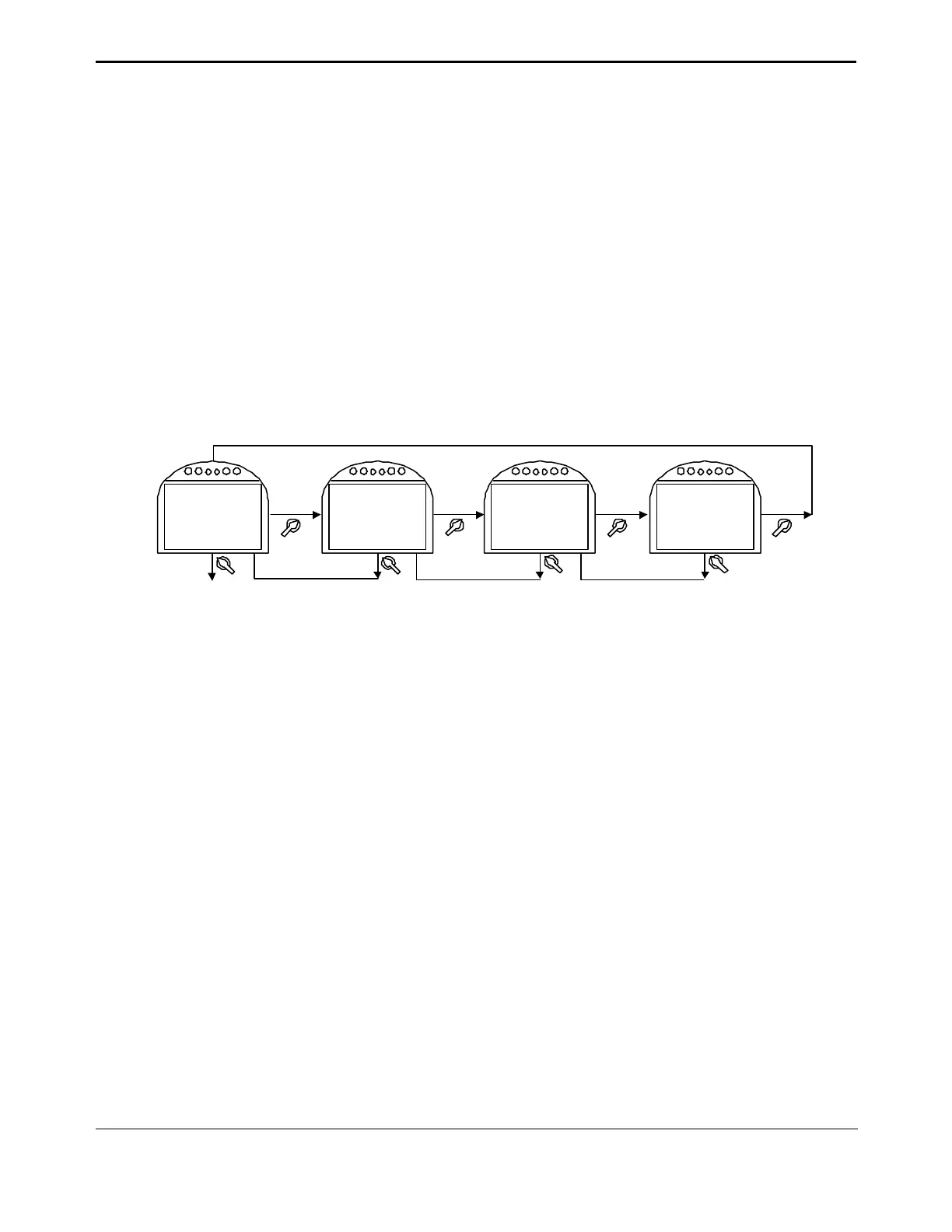

Figure 6-4 Display Operation Log
NO
YES
NO
YES
NO
YES
YES
NO
DISPLAY
OPERATE
LOG?
MOTOR
STARTS
999,999,999
STROKES
999,999,999
MOTOR RUN
TIME
999,999,999
SECONDS
Goto next display
see Figure 6-5
6.2.5. Display Operation Archive
Operation archive displays operation data from the initial commissioning. See Figure 6-5.
The operation archive cannot be reset in the “CHANGE SETTINGS” mode. The operation
archive can be reset in the “FACTORY SETUP” mode; however the actuator must be
decommissioned and travel limits must be reset before operating as detailed in Section
4.4.1, Setting Position Limits.
1. At the “DISPLAY OPERATE ARCHIVE” prompt, answer “YES.”
2. Use the control knob (YES) to review the operation archive.
Figure 6-5 Display Operation Archive
