Technical data
B mm 490 490 590 590 590
B1 mm 140 140 140 140 190
B2 mm 245 245 295 295 295
D mm 500 500 600 600 600
Hmm   950 950 950
W1 mm R1 1/4” R1 1/4” R1 1/2” R1 1/2” R1 1/2”
W2 mm R1 1/4” R1 1/4” R1 1/2” R1 1/2” R1 1/2”
G mm R3/4” R3/4” R1” R1” R1”
F
(DN) mm 100* 100* 100* 100* 130**
A
(DN) mm 100* 100* 100* 100* 130**
* DN 100 = Øint. 101
±0.7
mm
** DN 130 = Øint. 131
±0.7
mm
TH-L 50
TH-L 65(L)
TH-L 85 TH-L 100 TH-L 120 TH-L 145

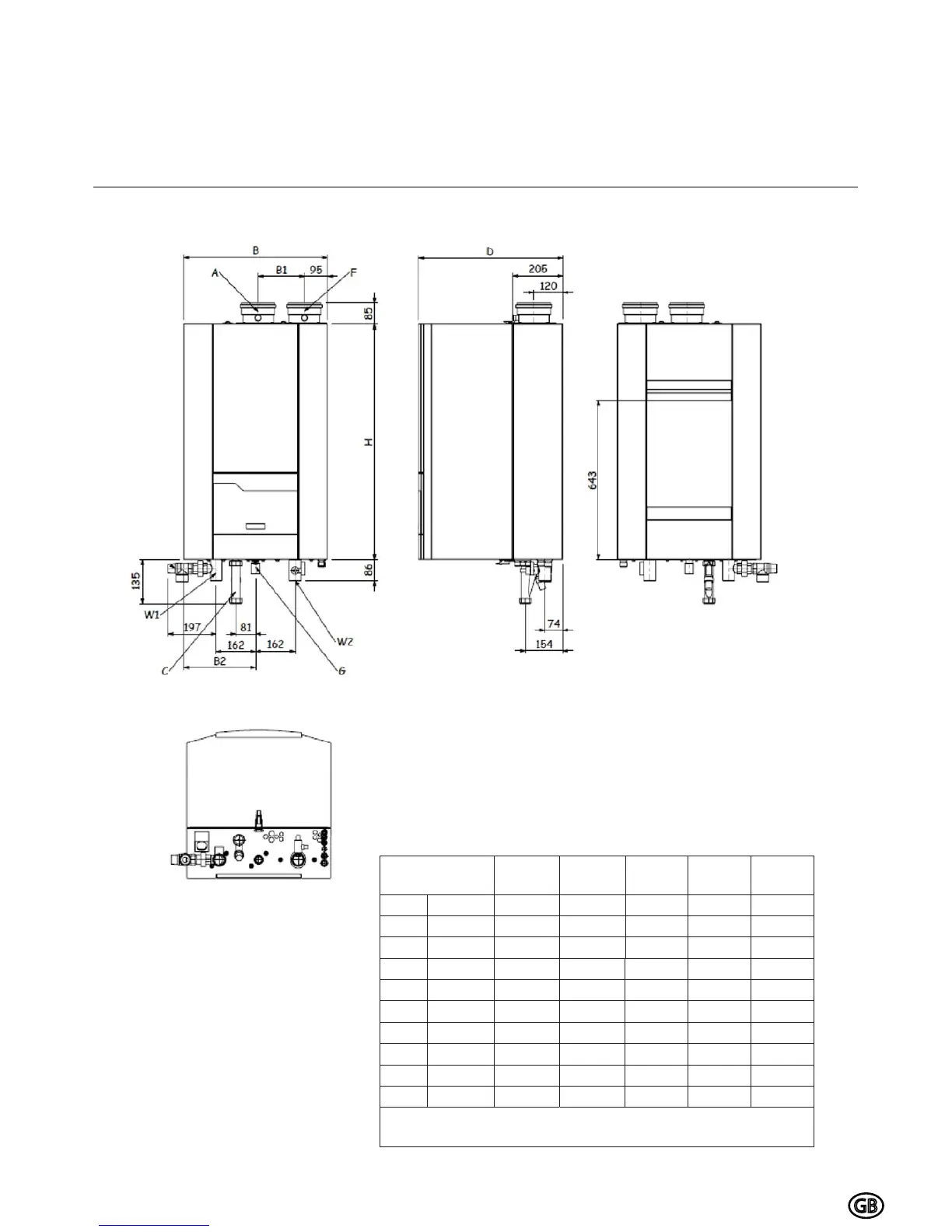

Dimensions
FRONT VIEW SIDE VIEW BACK VIEW
BOTTOM VIEW
