26
Op. 01 Op. 02 Op. 03 Op. 04 P.
F. 01 F. 02
Dp. 01
Op.05
PCB
Installation

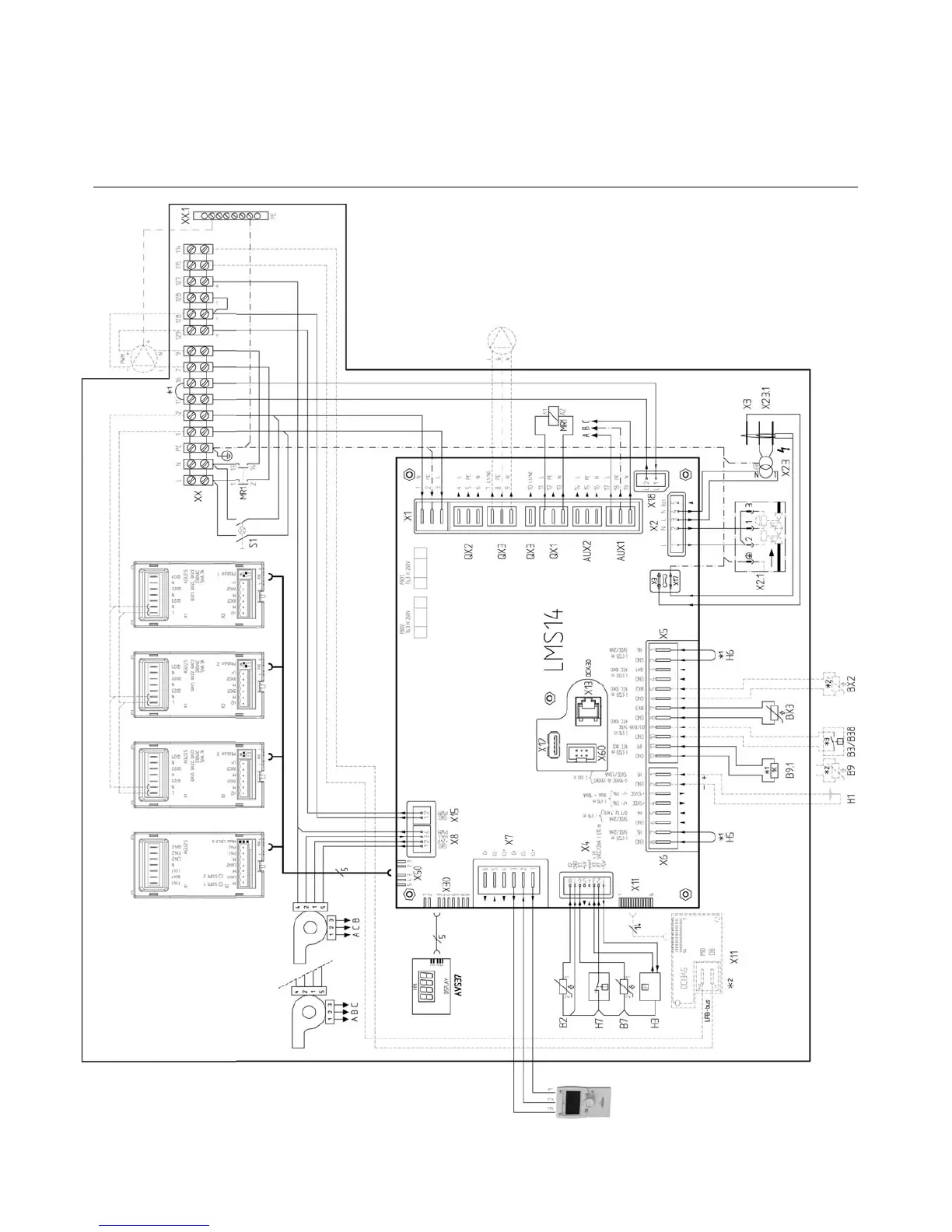

Schéma de câblage - Chaudière
Le fusible de l'unité interne
LMS est 2x T6, 3 A H 250 V
Courant total à 230 VCA, T 25
est 5 A
