Installation
Air/Flue gas system
Installation Instructions - twin pipe -
Installation
)LWWLQJWKHÀXHV\VWHPWRWKHDSSOLDQ-
ce must be carried out by a compe-
tent person in accordance with these
installation instructions
General
t Store material inside.
t Check the components on possi-
ble damages.
t ,QVWDOODIWHUQDWLRQDOUHJXODWLRQ
Fill out chimney label (when supplied)
and place it near boiler adaptor.

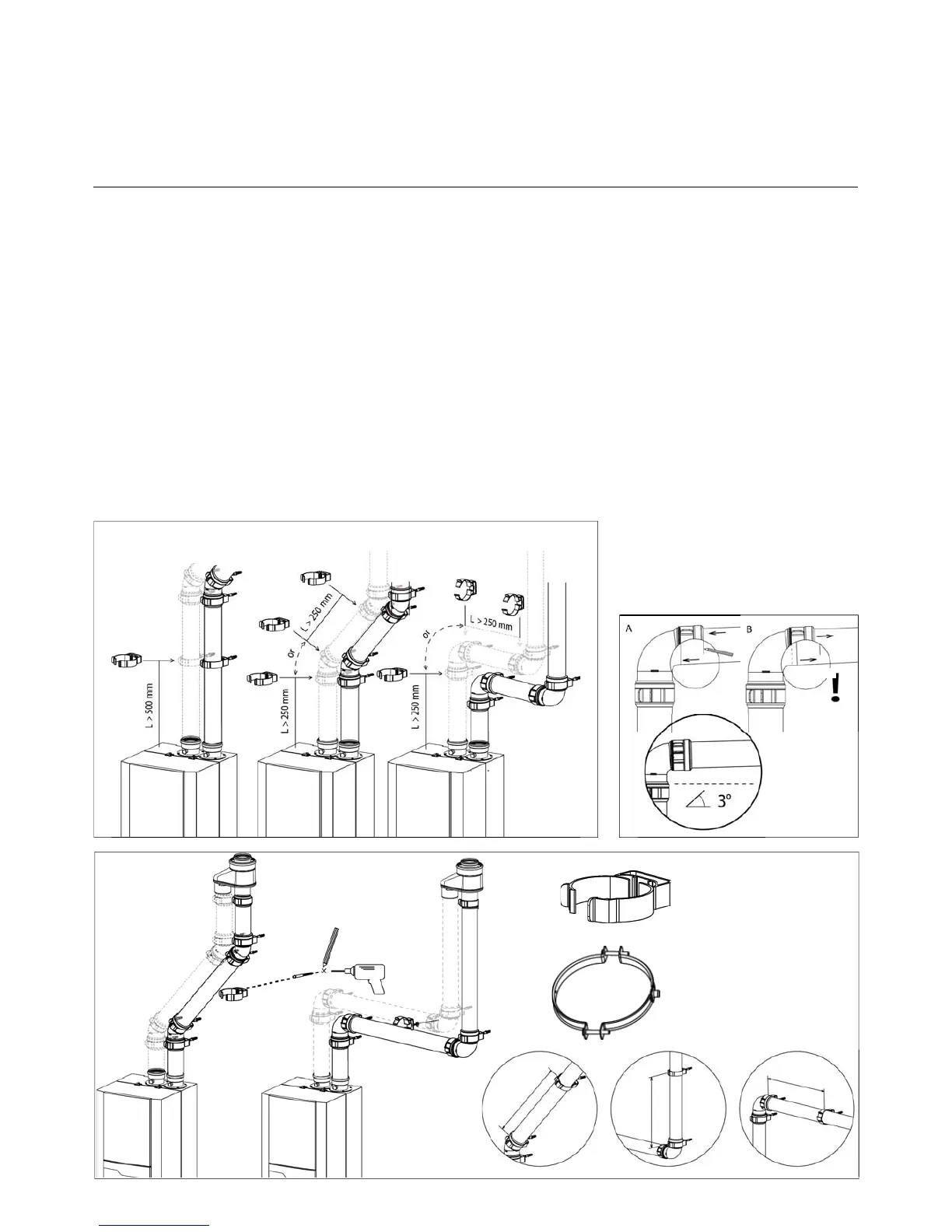

t Pipes must be installed free of
tension.
t 3D\DWWHQWLRQWRWKHÀXHGLUHFWLRQ
The sockets must be pointing to
the terminal.
$VVHPEO\ÀXHJDVV\VWHP
Starting to assemble the pipes from
the boiler.
Assemble the pipes by turning and
pushing them till the bottom of the
joint.
127('RQ¶WXVHVRDSRLOOXEULFDQW
Use only water as lubricant.
Before pipe exensions:
When using bends, the maximum
SHUPLVVLEOHOHQJWKRIÀXHJDVV\VWHP
can be deducted from the table on
pag.21.
Important
,QVWDOORQO\LQVLGHEXLOGLQJVRQXQÀD-
mable wall
Cleaning
Outside can be cleaned with a wet
towel or with some detergent.
,QVWDOOWHQVLRQIUHH
Ø < 100 mm
Cutting the pipe
t Take out the inner tube by turning
it until it releases from its security
position
t Cut the pipe
t Take off the burrs from the cutting
edge to prevent cutting the seals
t Re assembles the pipes
Ø  130 mm
Max 1 Meter
Max 1 Meter
Max 2 Meters
8-15 mm
