26
Op. 01 Op. 02 Op. 03 Op. 04 P.
F. 01 F. 02
Dp. 01
Op.05
PCB
Installazione

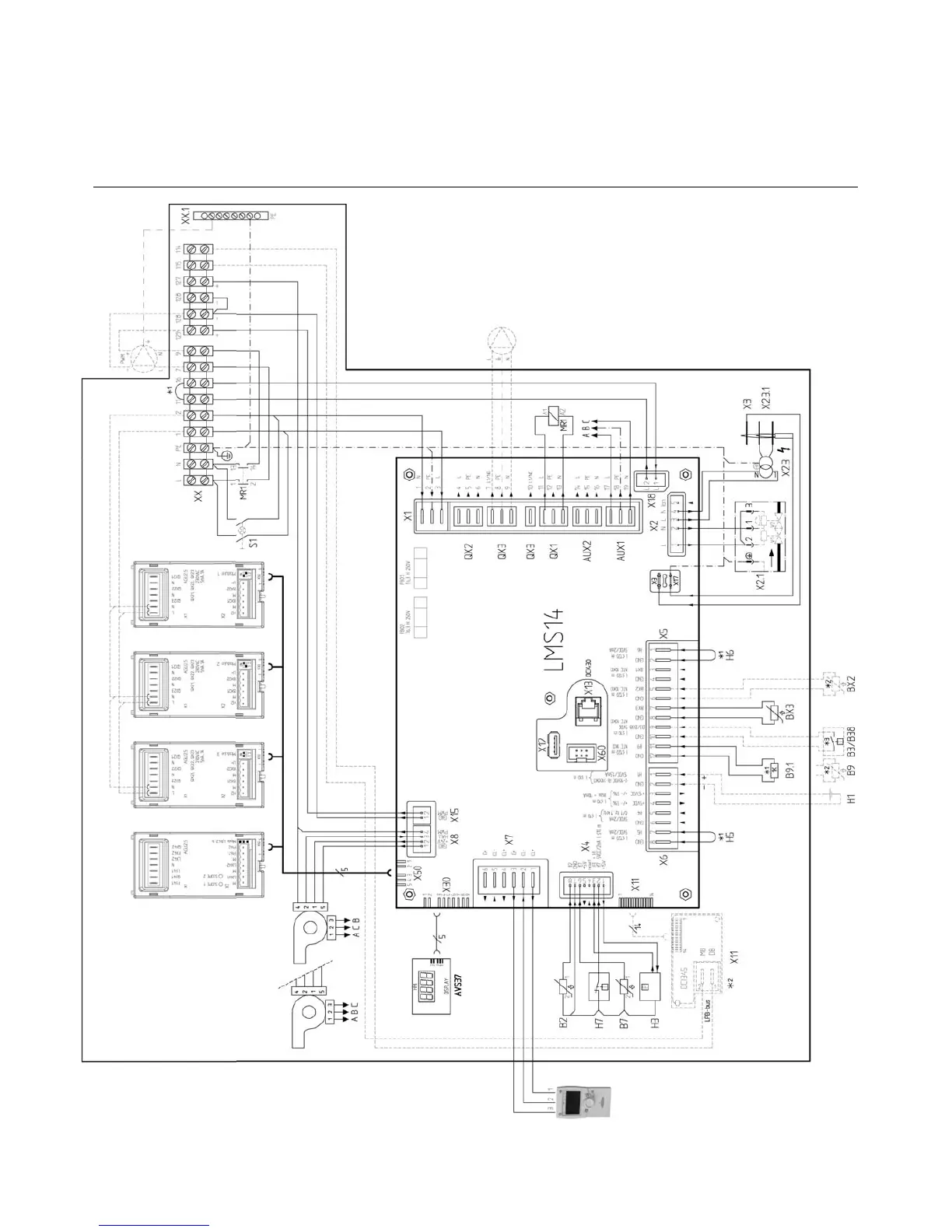

Schema di cablaggio - Caldaia
Fusibile unità interna LMS
is 2x T6,3A H 250V
Corrente totale a 230VAC,
T 25 is 5A
