IQ 2000/5000 Installation Manual
CHAPTER 1: Getting Started
Purpose of this manual
This manual describes the function and installation of IQ 2000/5000 Positioning Drive Module
(PDM) products and standard Electro-Craft motors recommended for use with the IQ 2000/
5000 PDM. It is intended for engineers or technicians directly involved in the installation, oper-
ation, and field maintenance of the IQ 2000/5000 PDM.
The IQ Master Instruction Manual describes the operation of the IQ Master executive software.
This software package is used to software configure the IQ 2000/5000 products, which are
shown in Figure 1.1. Refer to the IQ Master Instruction Manual for programming and software
related issues.

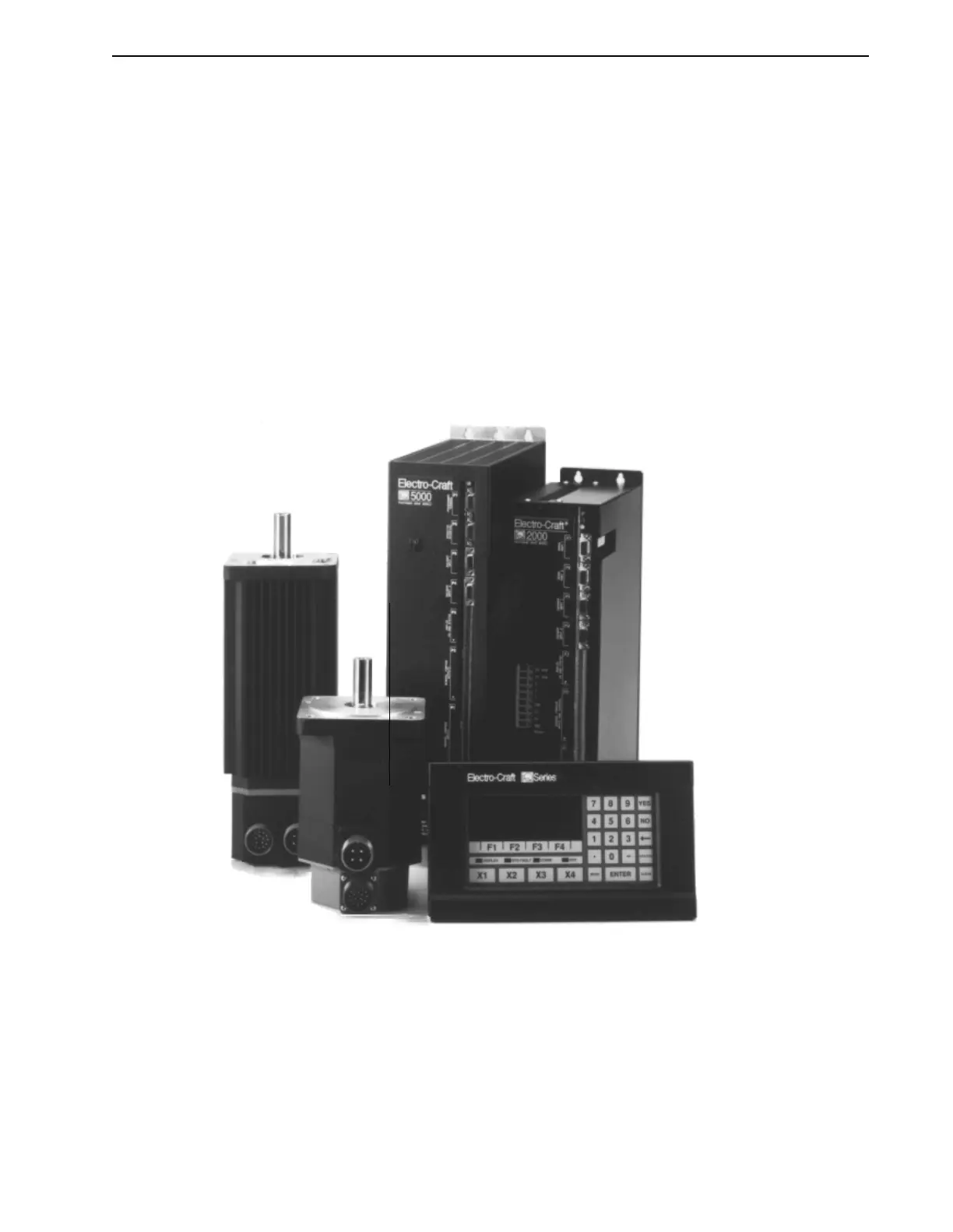

FIGURE 1.1 IQ 2000/5000 Product Family
