ElectroCraft IQ 2000 - IQ P4 or P5 to Auxiliary Encoder (Unterminated) (P;N 9101-2031)

3-32 Wiring
P/N 0013-1027-005 Rev A

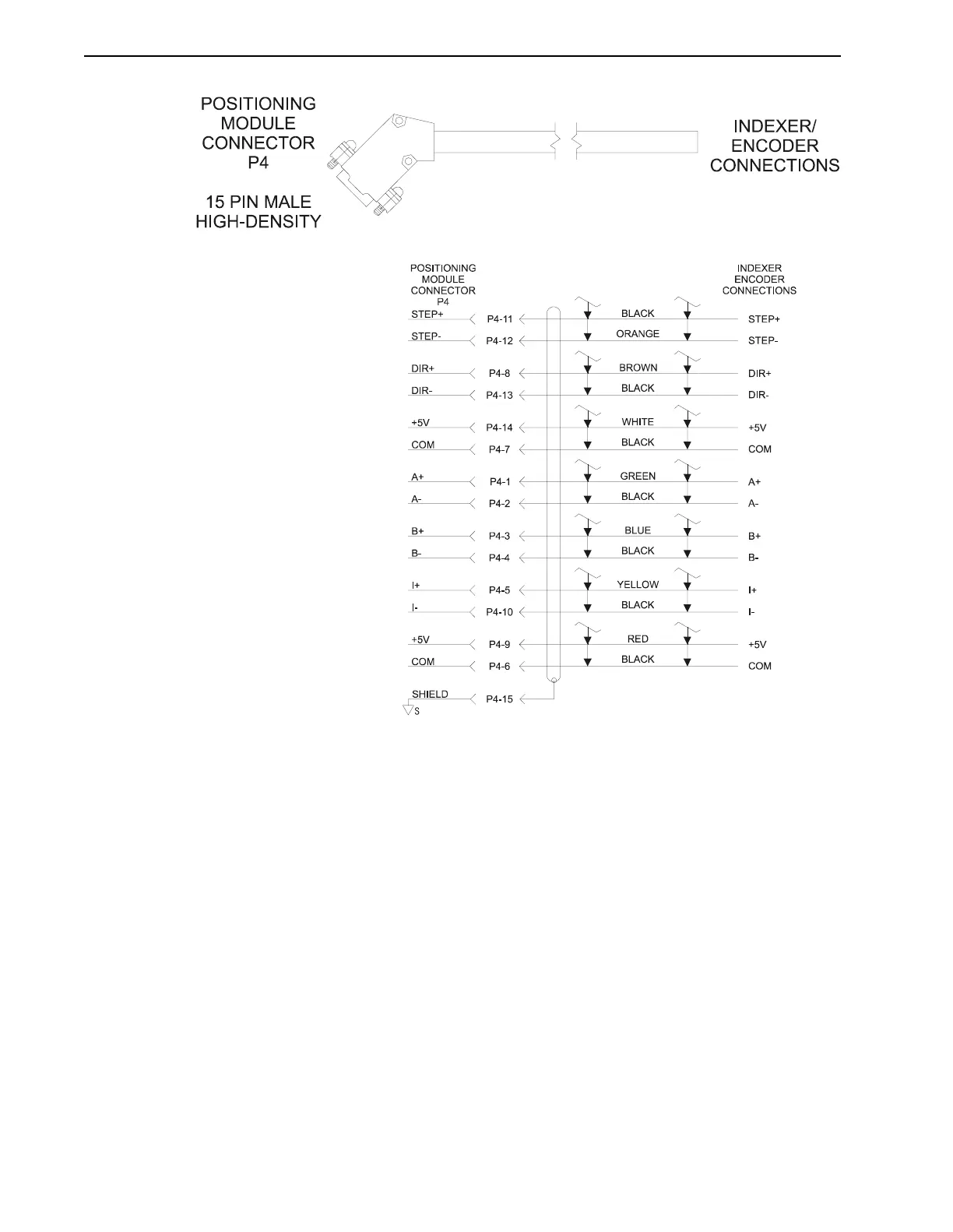

FIGURE 3.33 IQ P4 or P5 to Auxiliary Encoder (Unterminated) (P/N 9101-2031)
Note:
This cable may be used on the P5 connector (to motor feedback), with the following differences:
• Pin 8 is unused
• Pin 11 and 12 are TS- and TS+, respectively
• Pin 13 is ABS
Reference “Encoder 1” on page 3-15.
