IQ 2000/5000 Installation Manual
Motor Overload Protection
This drive utilizes solid state motor overload protection which operates:
◆ within 8 minutes at 200% overload
◆ within 20 seconds at 600% overload
Personality Module Installation
The Personality Module is already installed on the IQ 2000/5000. The following procedure is
to be used if the Personality Module needs to be changed for machine servicing. Refer to
Figure 2.1 for the location of the Personality Module on the IQ 2000/5000 logic board.

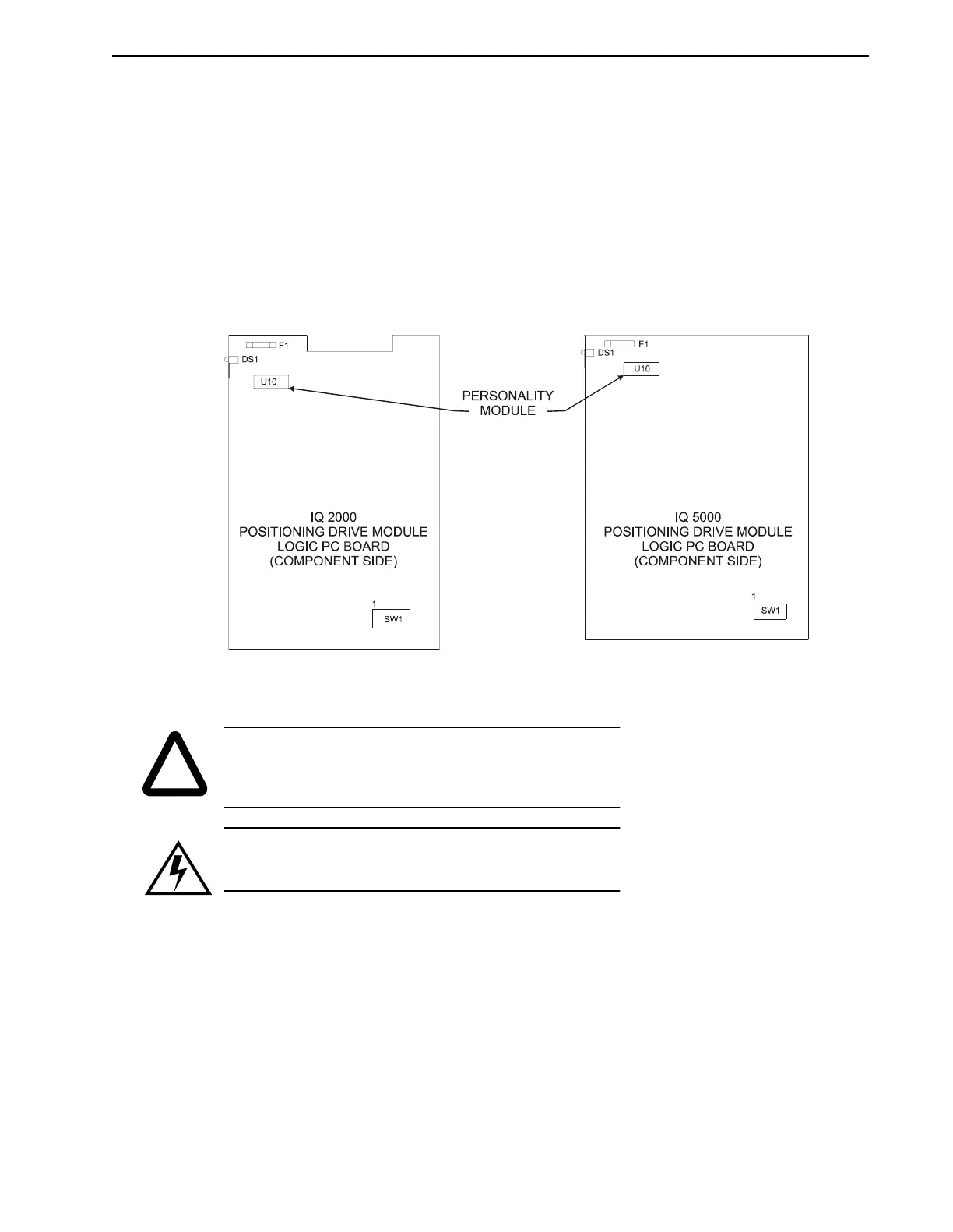

FIGURE 2.1 Location of Personality Module
!
CAUTION: Do
not
install or remove the personality module while
power to the PDM is ON. Static electricity can damage the per-
sonality module. Wear a conductive wrist strap while handling, or
touch earth ground before handling.
CAUTION: Static electricity can damage Personality Modules.
Wear a conductive wrist strap while handling, or touch earth
ground before handling.
