Getting Started 1-5
IQ 2000/5000 Installation Manual
Personal Computer (PC)
A user supplied Personal Computer is required to run IQ Master software. The minimum com-
puter requirements to run this software are contained in the IQ Master Instruction Manual.
Option Cards
Each PDM can have an option card mounted on its main control board, inside the PDM cover.
The option card mounting allows either a half-size or full-size option card. The PDM has a
connector that connects the option card to the PDM power supplies and microprocessor through
a ribbon cable.
The option cards currently available include a combination Memory and I/O Expansion Card
and an I/O Expansion Card. Refer to“Part Numbers of Interface Cards” on page 7-4.
Memory and I/O Expansion Card
Additional memory and I/O may be added vwith a Memory and I/O Expansion Card. This
board adds the following memory, input and output capabilities to the PDM.
◆ 32 Kilobytes of additional nonvolatile memory to the base PDM for the storage of up to 32
additional programs
◆ 32 TTL Inputs
◆ 16 TTL Outputs
◆ four 12-bit Analog inputs

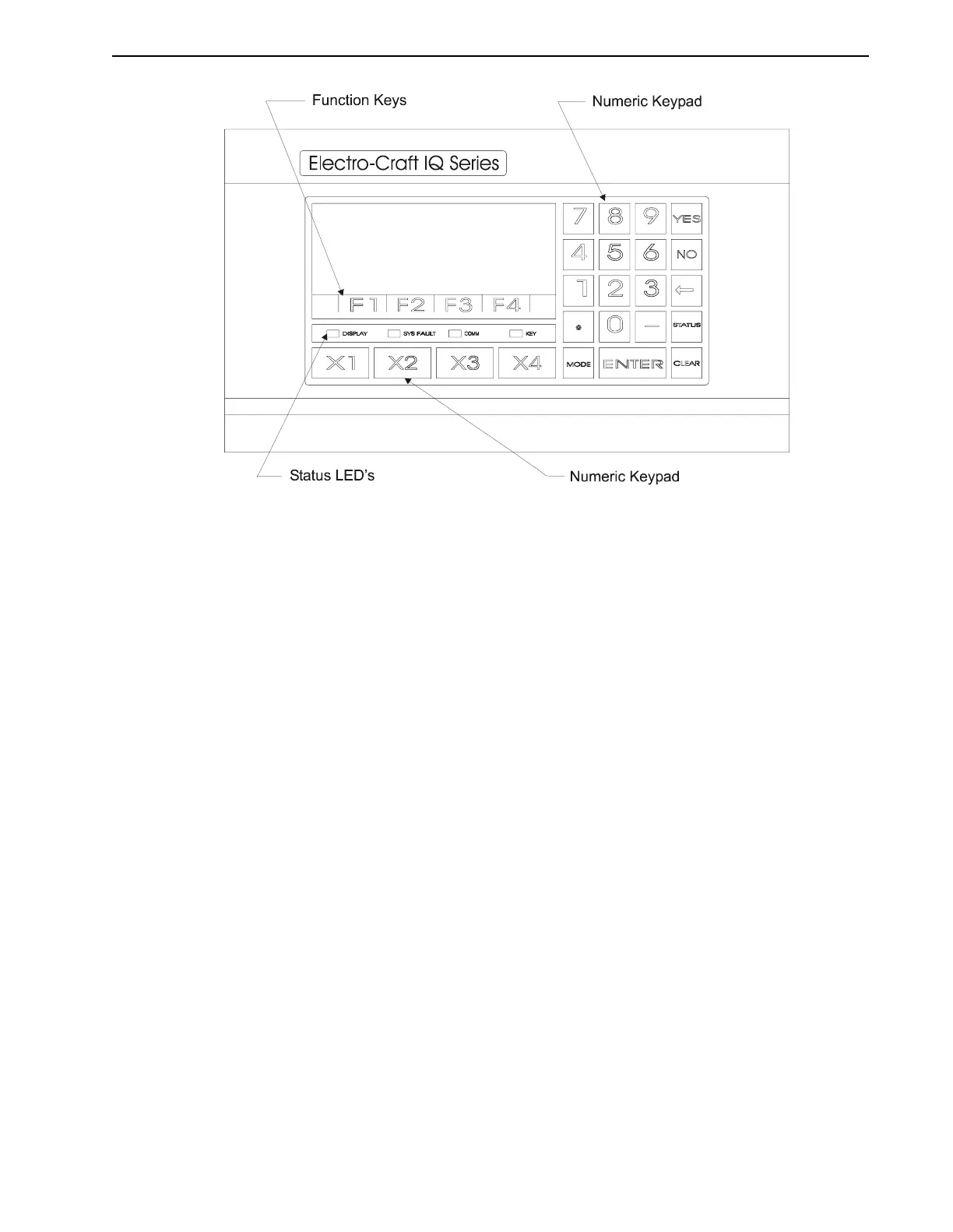

FIGURE 1.3 IQ 2000/5000 Operator Terminal
