3-8 Wiring
P/N 0013-1027-005 Rev A
3Wiring
Control Connections
This section covers the control and interface connections between the PDM and the rest of the
system. This includes: Digital I/O, Analog I/O, Relay Outputs, Encoders, Step and direction
Inputs, and Serial Ports. Figure 3.8 illustrates all control connections to the PDM.

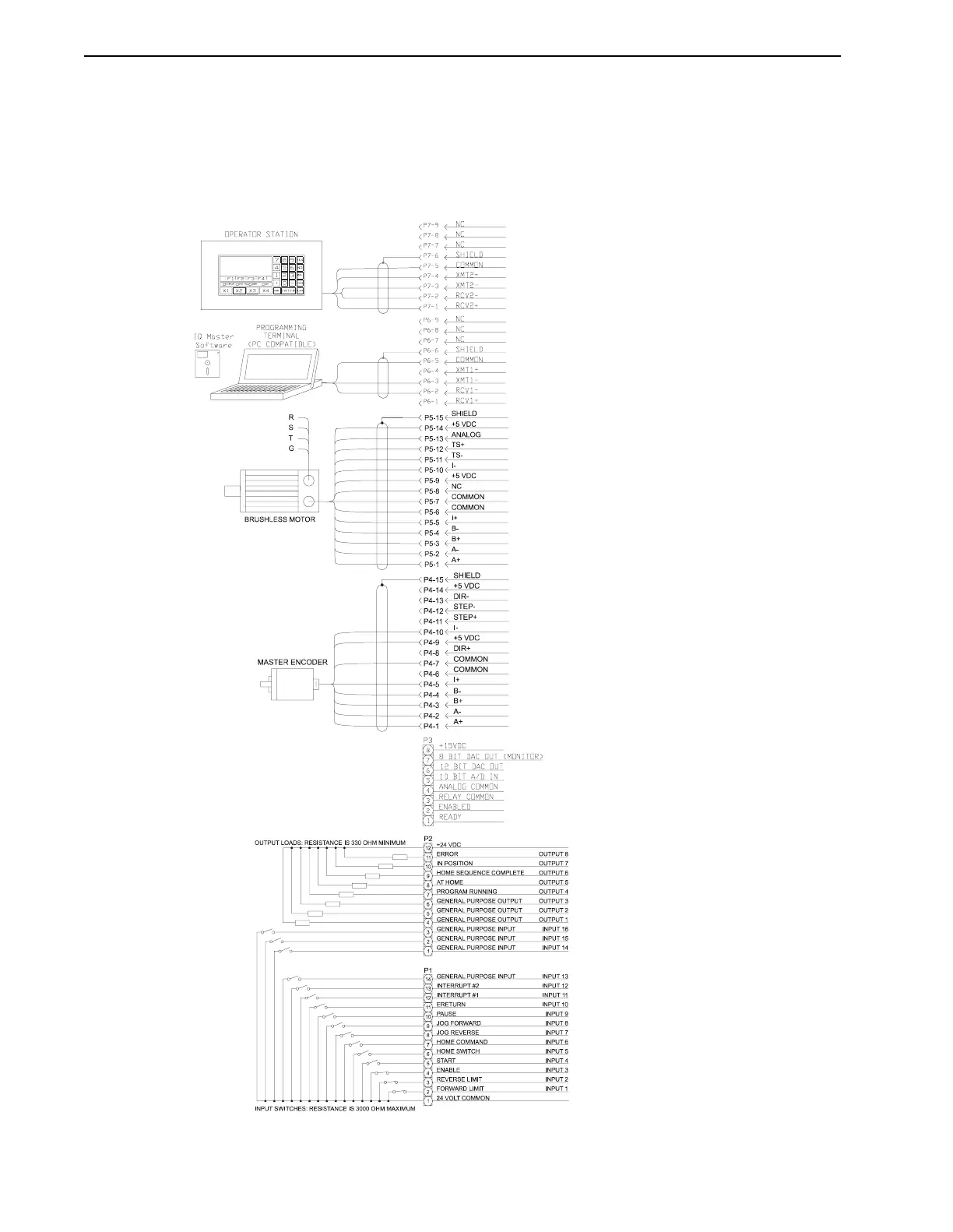

FIGURE 3.8 PDM Control Connections
