ElectroCraft IQ 2000 - Cables; IQ P7 to Operator Terminal (P;N 9101-2025); IQ P6 to PC Serial Port (9 Pin) (P;N 9101-2024)

Wiring 3-31
IQ 2000/5000 Installation Manual
3Wiring
Cables
Refer to Table 7.3 on page 7-2 for ordering information about these and other cables.

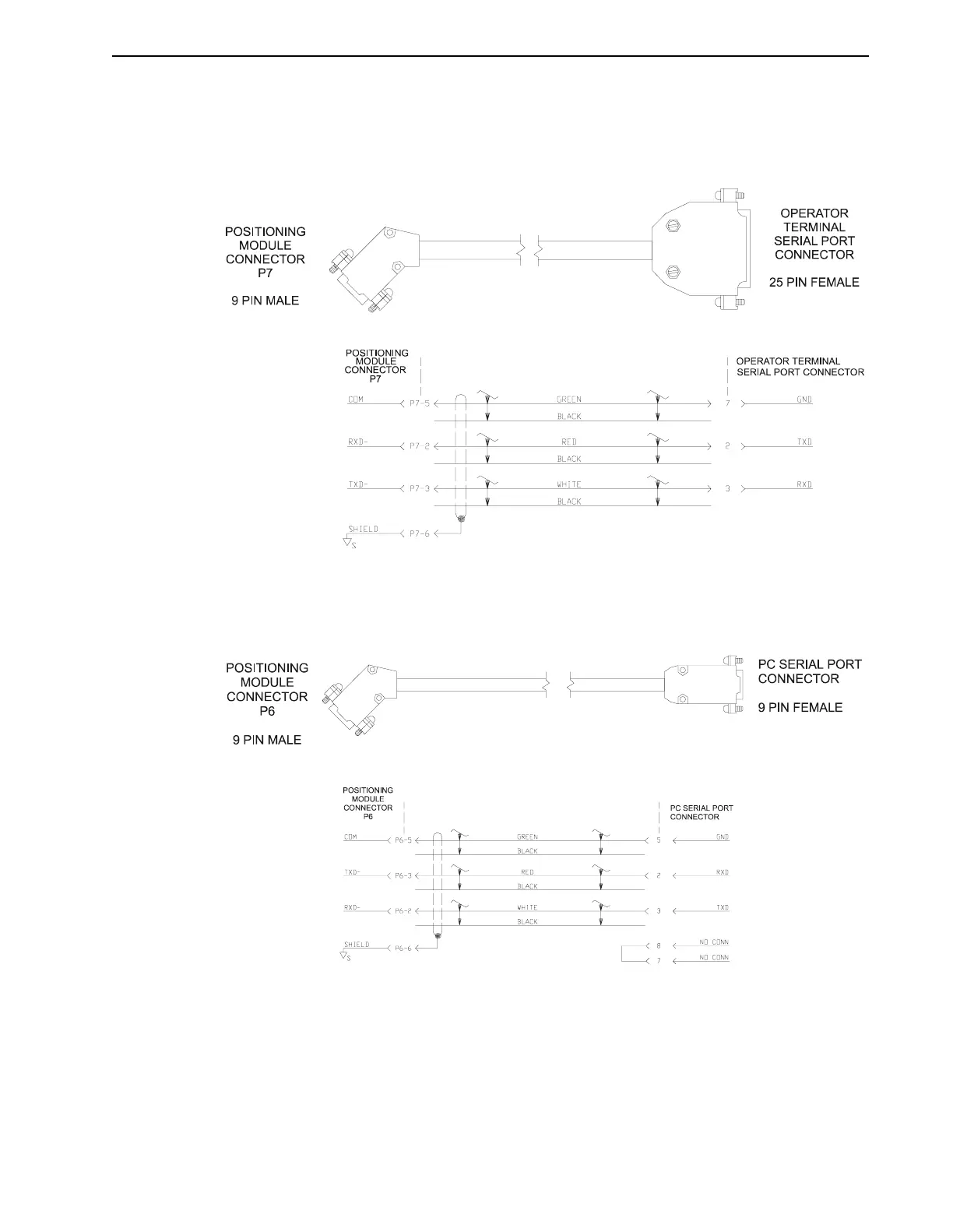

FIGURE 3.31 IQ P7 to Operator Terminal (P/N 9101-2025)
FIGURE 3.32 IQ P6 to PC Serial Port (9 pin) (P/N 9101-2024)
