2-34 Installation
P/N 0013-1027-005 Rev A
Intro

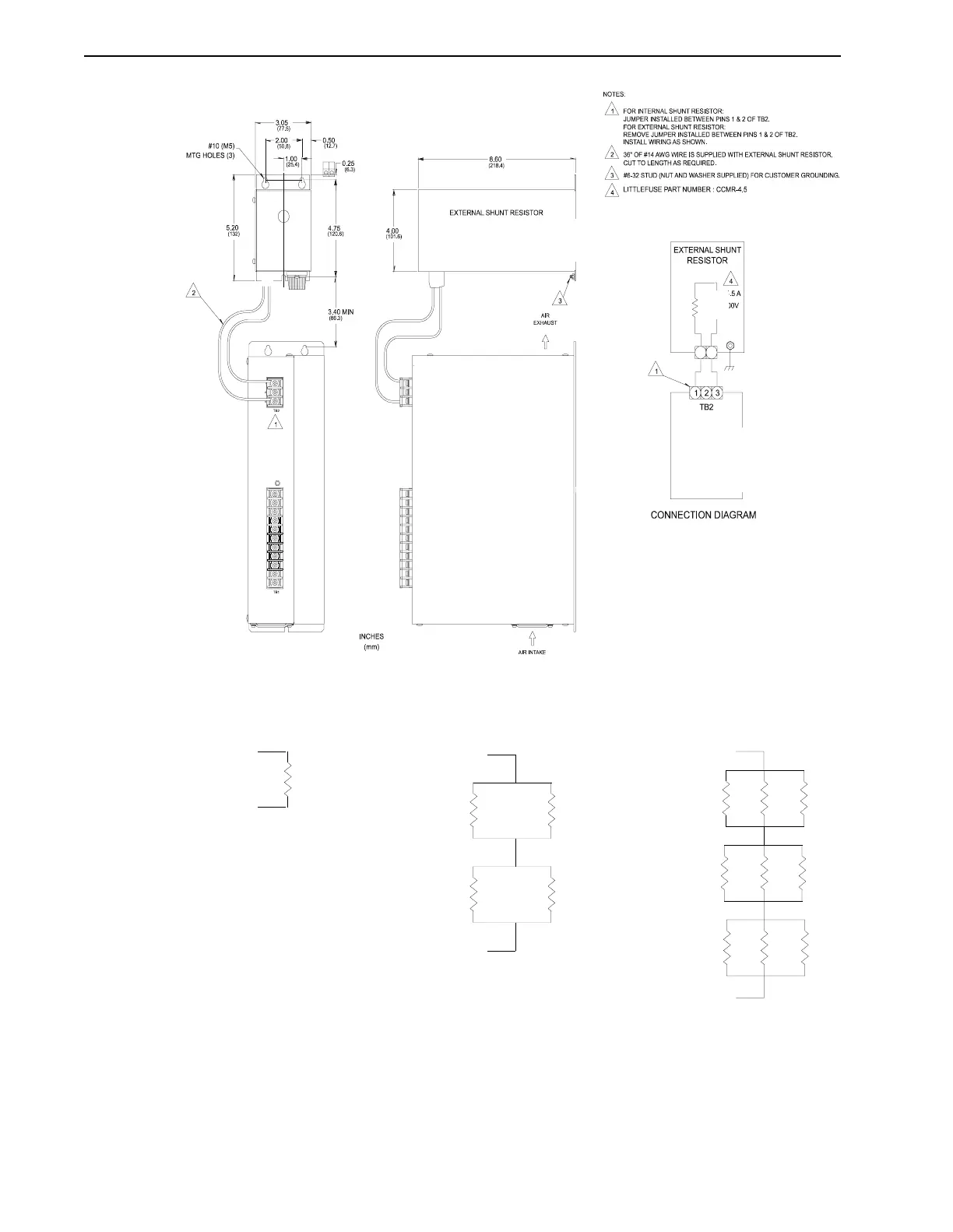

FIGURE 2.27 External Shunt Mounting and Connection Diagram
Intro
FIGURE 2.28 External Shunt Wiring Examples
TB2-1
TB2-3
1X Shunt Resistance
up to 200 Watts
*300 Ohm @ 500 Watts
TB2-1
TB2-3
4X Shunt Resistance
up to 1000 Watts
9X Shunt Resistance
up to 2.4 kWatts
is factory available
R1*
R1* R2*
R3* R4*
TB2-1
TB2-3
R1* R3*
R4* R6*
R7* R9*
R2*
R5*
R8*
NOTES:
1. A single resistor of equivalent total
resistance may replace multiple
resistors.
2. Dissipation uses approximately
50% of total resistance value.
