Current Transformer
This o ption al lows y ou t o accurately c onfigure t he k nown Primary & S econdary
Transformation Ratios for all the Current channels from I
1
to I
N
:

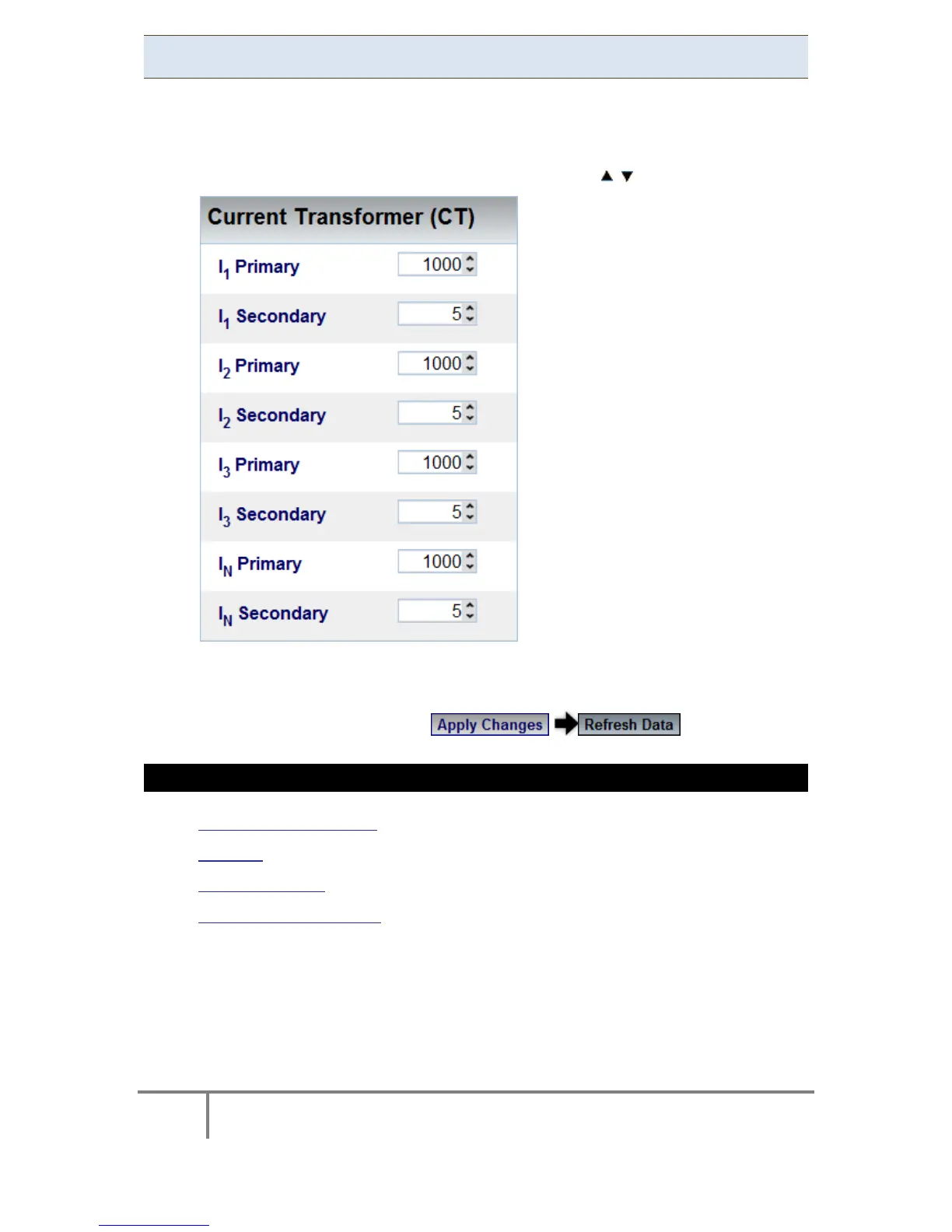

 Set the correct Primary & Secondary Ratios (with / ):
If the CT Ratio is inapplicable, then set your values to read:
Primary = Secondary = Nominal
 To apply your changes select to review them
SEE ALSO
 About Current Window
 Nominal
 Current Polarity
 Non-Measured Currents
