94

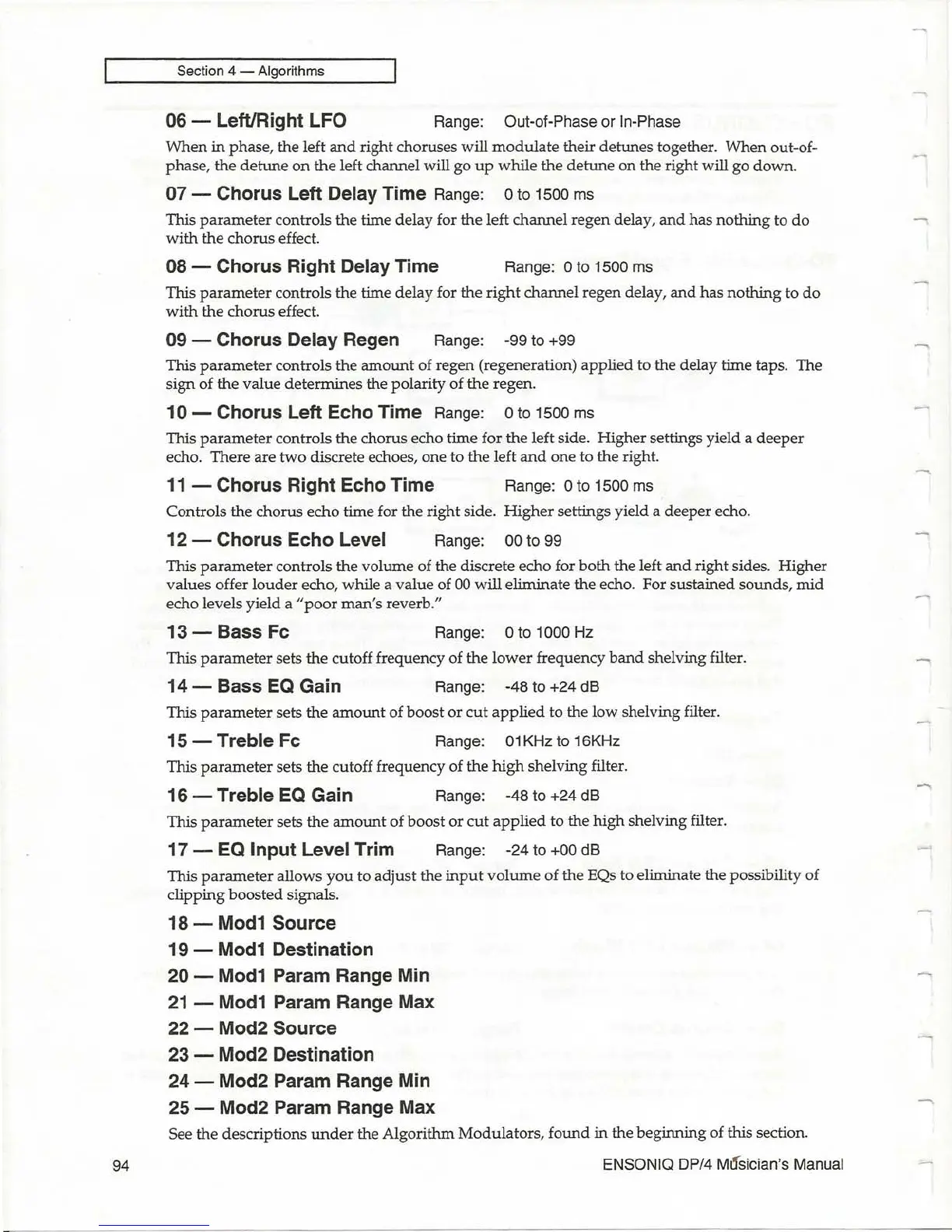

Section 4 - Algorithms
06 - Left/Right LFO Range: Out-at-Phase or In-Phase
When
in
phase, the left
and
right choruses will
modulate
their detunes together.
When
out-of-
phase,
the
detune
on
the
left channel will go
up
while the
detune
on the right will go
down
.
07 - Chorus Left Delay Time Range: 0 to 1500 ms
This
parameter
controls the time delay for
the
left channel regen delay,
and
has
nothing
to
do
with
the
chorus effect.
08 - Chorus Right Delay Time
Range: 0 to 1500 ms
This
parameter
controls the time delay for the
right
channel regen delay,
and
has
nothing
to
do
with
the chorus effect.
09 - Chorus Delay Regen
Range: -99 to +99
This
parameter
controls the
amount
of regen (regeneration) applied to the delay time taps. The
sign
of
the
value
determines
the polarity of
the
regen.
10 - Chorus Left Echo Time Range: 0 to 1500 ms
This
parameter
controls the chorus echo time for the left side. Higher settings yield a
deeper
echo. There are
two
discrete echoes, one to the left
and
one to the right.
11
- Chorus Right Echo Time
Range: 0 to 1500 ms
Controls the chorus echo time for the right side.
Higher
settings yield a deeper echo.
12 - Chorus Echo Level
Range: 00 to 99
This
parameter
controls the volume of the discrete echo for
both
the left
and
right sides. Higher
values offer
louder
echo, while a value of
00
will eliminate the echo. For sustained sounds,
mid
echo levels yield a
"poor
man's
reverb."
13-
Bass Fc
Range: 0 to 1000 Hz
This
parameter
sets
the
cutoff frequency of
the
lower
frequency
band
shelving filter.
14 - Bass EQ Gain
Range: -48 to +24 dB
This
parameter
sets
the
amount
of boost or
cut
applied
to the
low
shelving filter.
15 - Treble
Fc
Range:
01
KHz to 16KHz
This
parameter
sets
the
cutoff frequency of
the
high
shelving filter.
16 - Treble EQ Gain
Range: -48 to +24 dB
This
parameter
sets
the
amount
of boost or
cut
applied
to the
high
shelving filter.
17 - EQ Input Level Trim Range: -24 to +00 dB
This
parameter
allows
you
to
adjust the
input
volume
of the EQs to eliminate the possibility of
clipping boosted signals.
18 - Mod1 Source
19 - Mod1 Destination
20 - Mod1 Param Range Min
21
- Mod1 Param Range Max
22 - Mod2
Source
23 - Mod2 Destination
24 - Mod2 Param Range Min
25 - Mod2 Param Range Max
See the descriptions
under
the Algorithm Modulators,
found
in
the beginning of this section.
ENSONIQ DP/4 M!fsician's Manual
