Section 1 - Tutorial

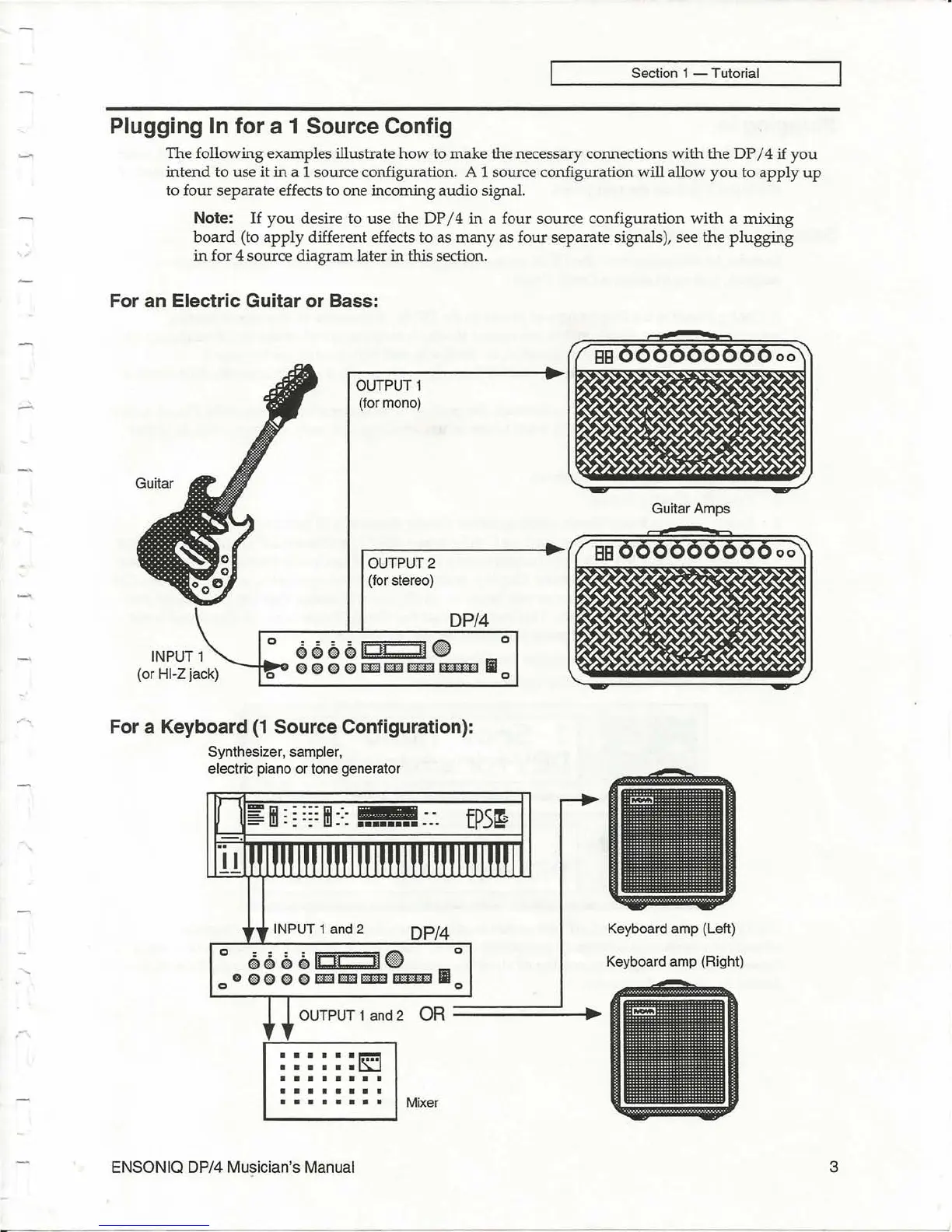

Plugging In for a 1 Source Config
The following examples illustrate
how
to make the necessary cormections
with
the
DP
/ 4 if
you
intend
to
use it
in
a 1 source configuration. A 1 source configuration will allow
you
to
apply
up
to four separate effects to one incoming audio signal.
Note:
If
you
desire to use the DP / 4
in
a four source configuration
with
a
mixing
board
(to
apply
different effects to as
many
as four separate signals), see
the
plugging
in
for 4 source diagram later
in
this section.
For an Electric Guitar or Bass:
Guitar
INPUT 1
(or HI-Z jack)
OUTPUT 1
(for mono)
OUTPUT 2
(for stereo)
DP/4
For a Keyboard
(1
Source Configuration):
Synthesizer, sampler,
electric
piano
or
tone generator
OUTPUT 1 and 2
OR
=========---J~~
• • • • • •
r=:I
•
•••••
Da..J
• • • • • • • •
•
• • • • • • •
• • • • • •
••
Mixer
Guitar Amps
Keyboard amp (Left)
Keyboard amp (Right)
ENSONIQ DP/4 Mu?ician's Manual 3
