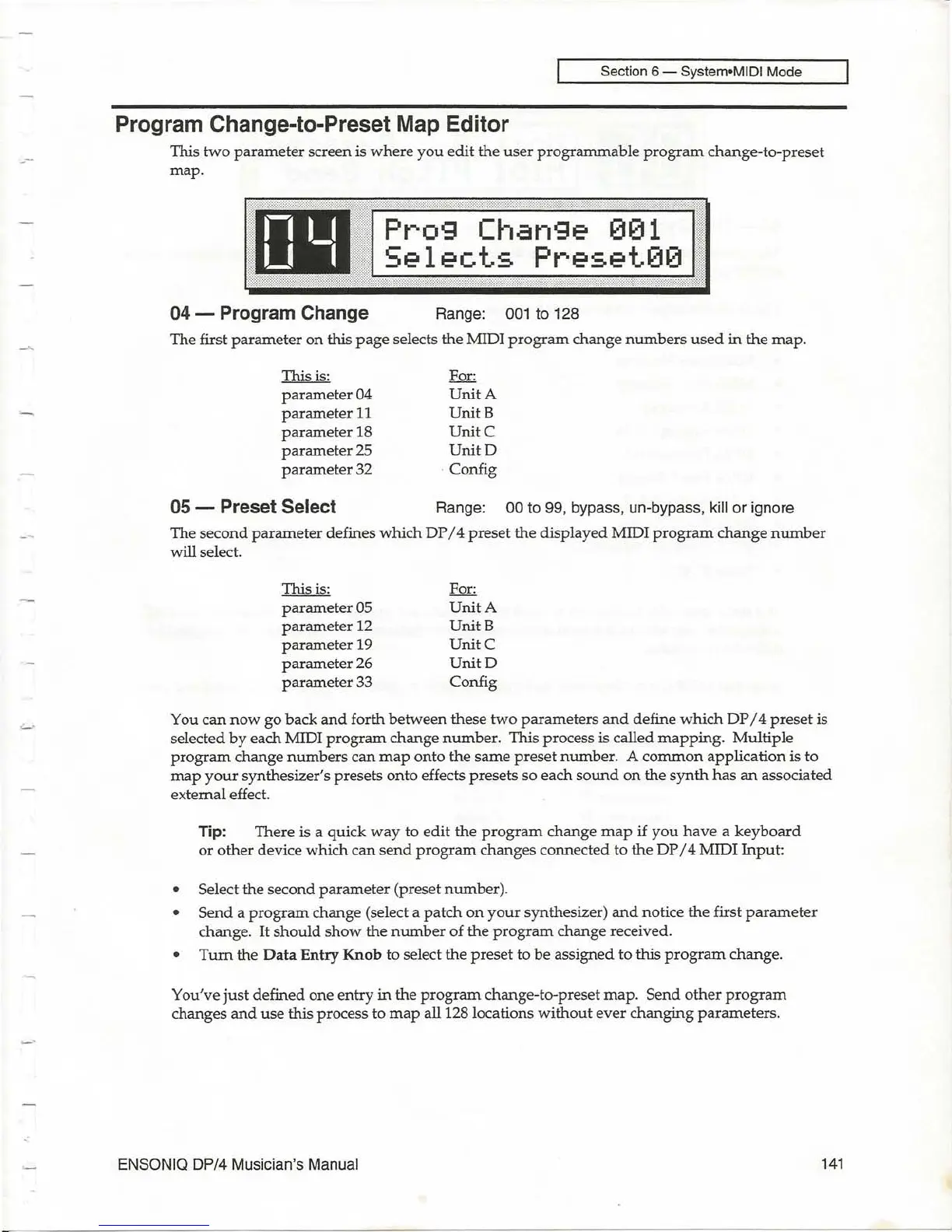

Section 6 - System·MIDI Mode
Program Change-to-Preset Map Editor
This two parameter screen is where you edit the user programmable program change-to-preset
map.
04 - Program Change
Change 001
Prog
Selects Preset00
Range: 001 to 128
The first parameter on this page selects the MIDI program change numbers used in the map.
This is:
parameter 04
parameter 11
parameter 18
parameter 25
parameter 32
05 - Preset Select
For:
Unit A
UnitB
UnitC
UnitD
. Config
Range: 00 to 99, bypass, un-bypass, kill or ignore
The second parameter defines which DP /4 preset the displayed MIDI program change number
will select.
This is:
parameter
05
parameter 12
parameter 19
parameter 26
parameter 33
For:
Unit A
UnitB
UnitC
UnitD
Config
You
can now go back and forth between these two parameters and define which DP / 4 preset is
selected
by each MIDI program change number . This process is called mapping. Multiple
program change numbers can map onto the same preset number. A common application is to
map your synthesizer's presets onto effects presets so each sound on the synth has an associated
external effect.
Tip: There is a quick way to edit the program change map if you have a keyboard
or other device which can send program changes connected to the DP / 4 MIDI Input:
• Select the second parameter (preset number).
• Send a program change (select a patch on your synthesizer) and notice the first parameter
change. It should show the number of the program change received.
• Tum the Data Entry Knob to select the preset to be assigned to this program change.
You've just defined one
entry in the program change-to-preset map . Send other program
changes and use this process to map all 128 locations without ever changing parameters.
ENSONIQ DP/4 Musician's Manual
141
