Section 6 - System-MIDI Mode

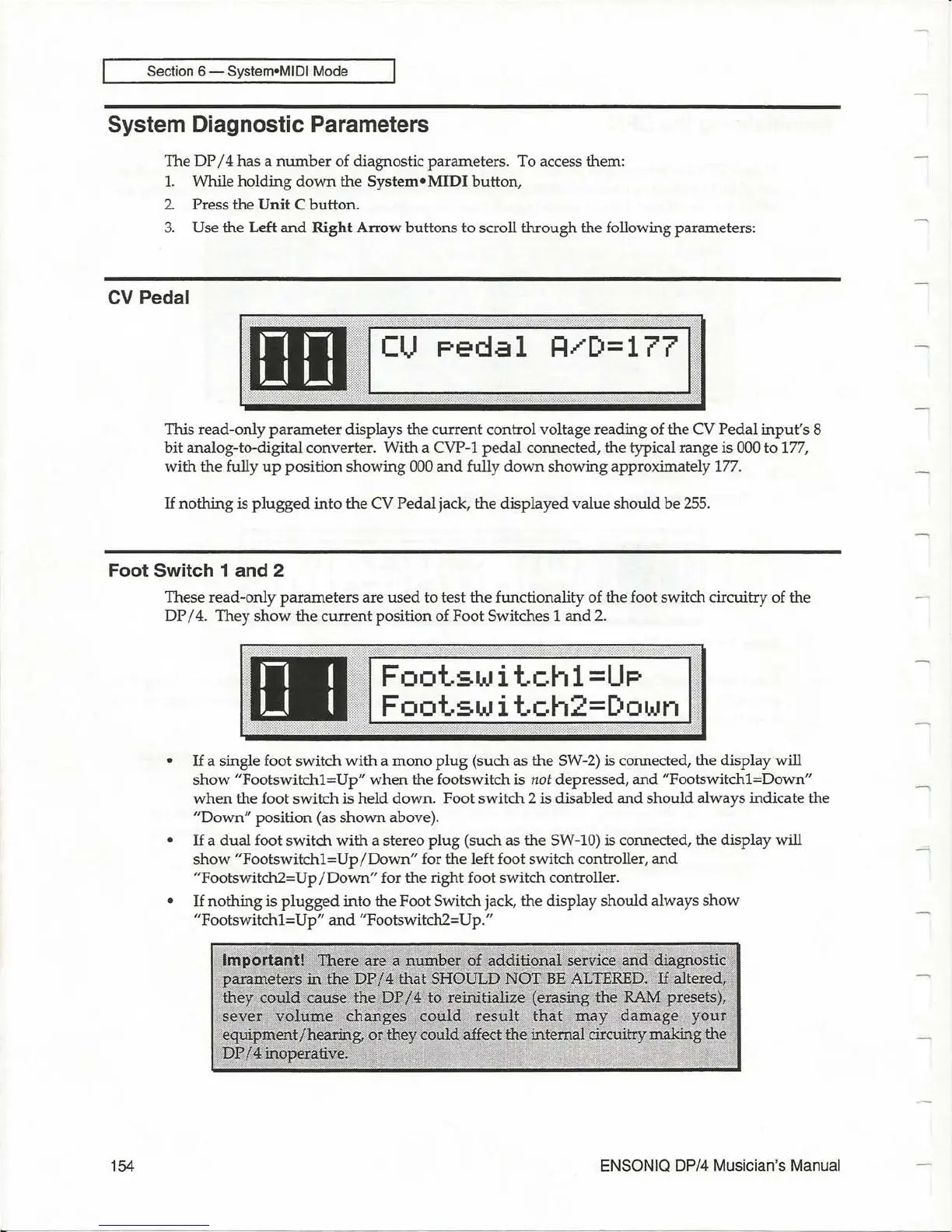

System Diagnostic Parameters
The DP / 4 has a number of diagnostic parameters . To access them:
1. While holding down the System. MIDI button,
2. Press the Unit C button.
3.
Use the Left and Right Arrow buttons to scroll through the following parameters:
CV Pedal
This read-only parameter displays the current control voltage reading of the CV Pedal input's 8
bit analog-to-digital converter. With a
CVP-l pedal connected, the typical range is 000 to 177,
with the fully up position showing 000 and fully down showing approximately 177.
If nothing is plugged into the CV Pedal jack, the displayed value should be 255 .
Foot Switch 1 and 2
154
These read-only
parameters are used to test the functionality of the foot switch circuitry of the
DP / 4. They show the current position of Foot Switches 1 and 2.
nl
UI
Footswitchl=Up
Footswitch2=Down
• If a single foot switch with a mono plug (such as the SW-2) is connected, the display will
show "Footswitchl=U
p
"
when the footswitch is not depressed, and IFootswitchl=Down"
when the foot switch is held down. Foot switch 2 is disabled and should always indicate the
"Down" position (as shown above).
• If a dual foot switch with a stereo plug (such as the SW -10) is connected, the display will
show "Footswitchl=Up /Down" for the left foot switch controller, and
"Footswitch2=Up/Down" for the right foot switch controller.
• If nothing is plugged into the Foot Switch jack, the display should always show
"Footswitchl=Up" and "Footswitch2=Up."
