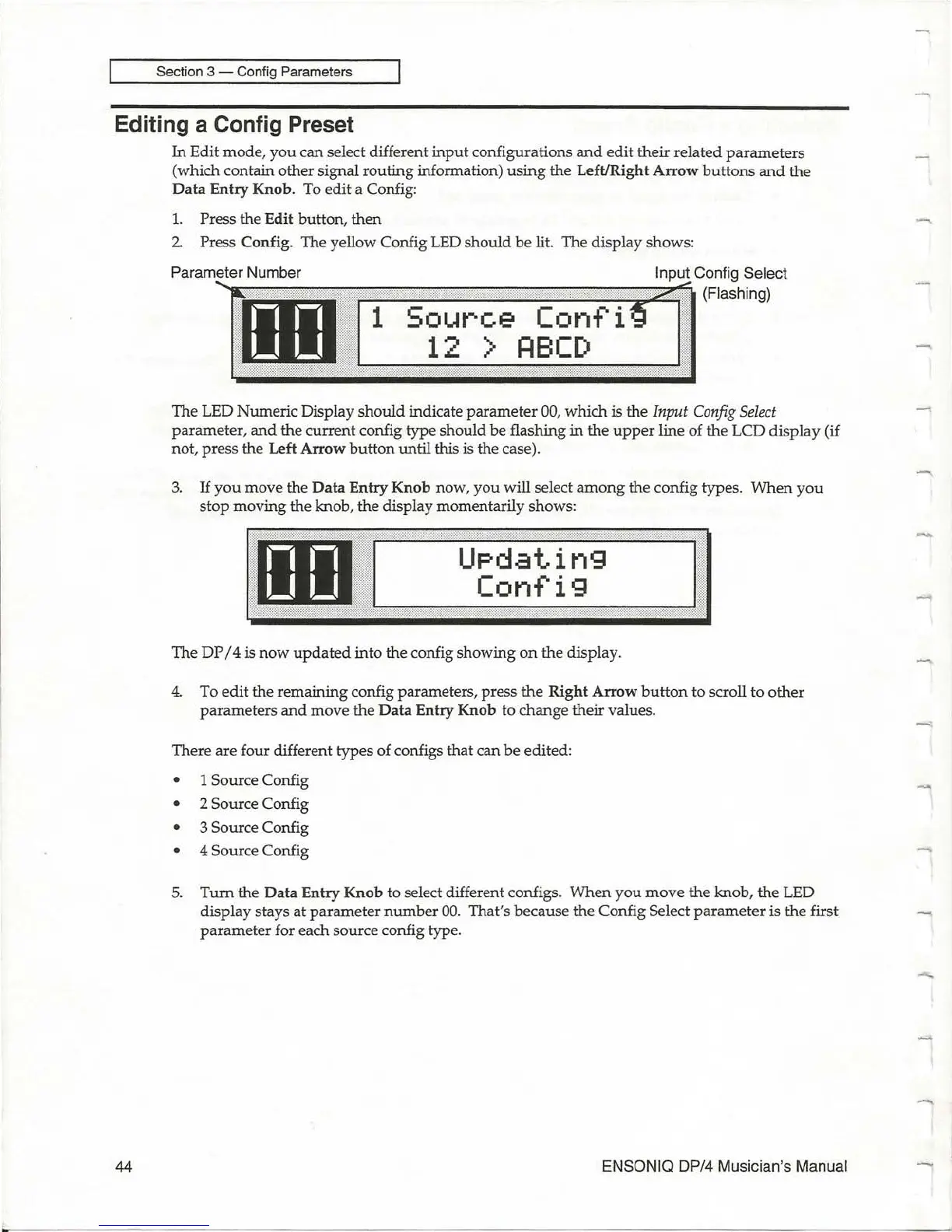

ENSONIQ DP/4 Musician's Manual

Section 3 - Config Parameters
Editing a Config Preset
44
In Edit mode, you can select different input configurations and edit their related parameters
(which contain other signal routing information) using the Left/Right Arrow buttons and the
Data Entry Knob. To edit a Config:
1. Press the Edit button, then
2 Press Config . The yellow Config LED should be lit. The display shows:
Parameter Number Input Config Select
1.~ij.R.~~~ElE::EE1~1Ilill~~lI21~~~~. (Flashing)
1 Source Confi
12 > i=lBCD
The LED Numeric Display should indicate parameter ~O, which is the Input Config Select
parameter, and the current config type should be flashing in the upper line of the LCD display (if
not,
press the Left Arrow button until this is the case).
3. If you move the Data Entry Knob now, you will select among the config types. When you
stop moving the knob, the display momentarily shows:
Updating
Config
The DP /4 is now updated into the config showing on the display.
4. To edit the remaining config parameters, press the Right Arrow button to scroll to other
parameters and move the Data Entry Knob to change their values.
There
are four different types of configs that can be edited:
• 1 Source Config
• 2 Source Config
• 3 Source Config
• 4 Source Config
5. Tum the Data Entry Knob to select different configs. When you move the knob, the LED
display stays at parameter number 00. That's because the Config Select parameter is the first
parameter for each source config type.
