ENSONIQ DP/4 Musician's Manual

Section 1 - Tutorial

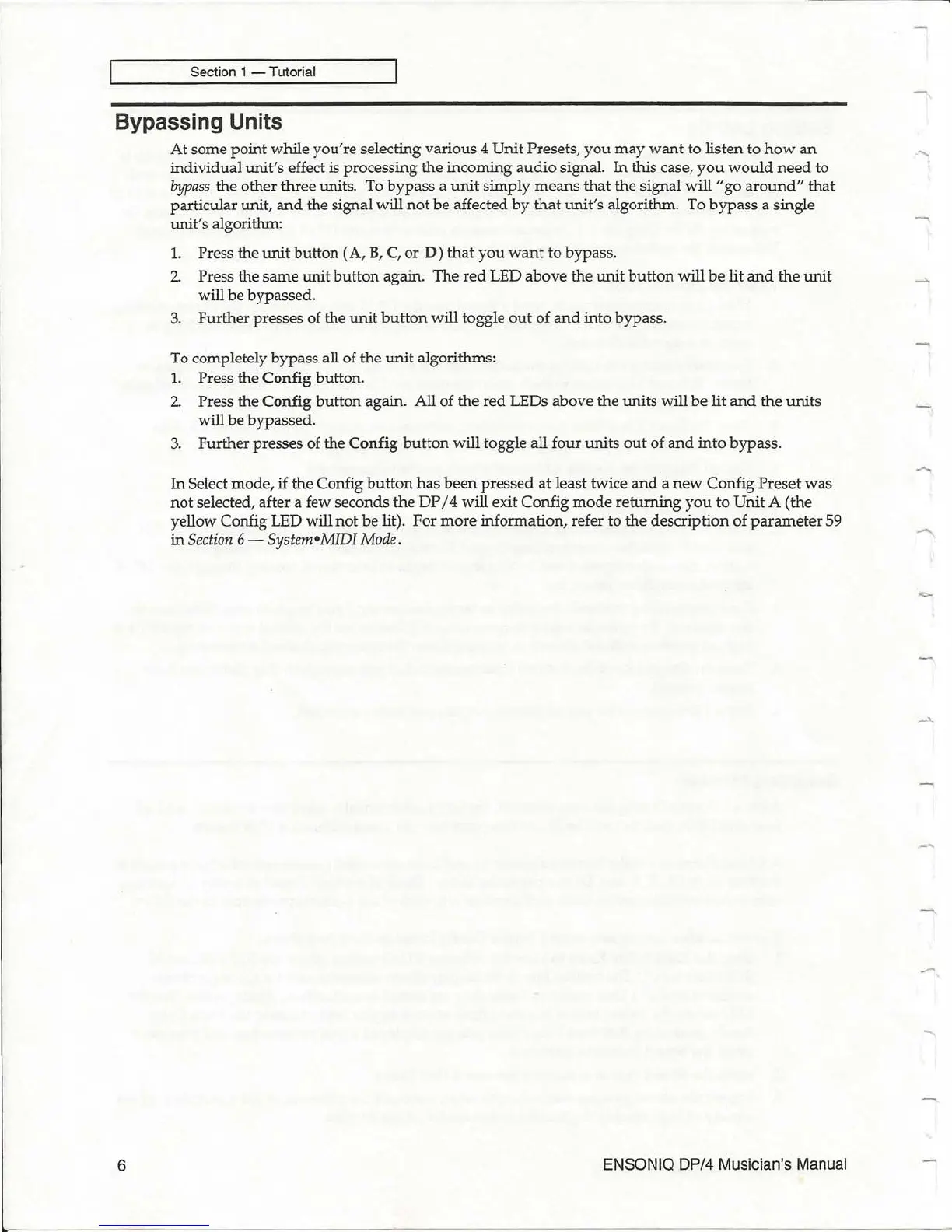

Bypassing Units
6
At some point while you're selecting various 4 Unit Presets, you may want to listen to how an
individual unit's effect is processing the incoming audio signal. In this case, you would need to
bypass the other three units. To bypass a unit simply means that the signal will" go around" that
particular unit, and the signal will not be affected by that unit's algorithm. To bypass a single
unit's algorithm:
1. Press the unit button (A , B, C, or D) that you want to bypass.
2. Press the same unit button again. The red LED above the unit button will be lit and the unit
will be bypassed.
3. Further presses of the unit button will toggle out of and into bypass.
To completely bypass all of the unit algorithms:
1. Press the Config button .
2. Press the Config button again . All of the red LEDs above the units will be lit and the units
will be bypassed .
3. Further presses of the Config button will toggle all four units out of and into bypass .
In Select mode, if the Config button has been pressed at least twice and a new Config Preset was
not selected, after a few seconds the DP / 4 will exit Config mode returning you to Unit A (the
yellow Config LED will not be lit). For more information, refer to the description of parameter 59
in Section 6 - System- MID I Mode.
