ENSONIQ DP/4 Musician's Manual

Section 1 - Tutorial

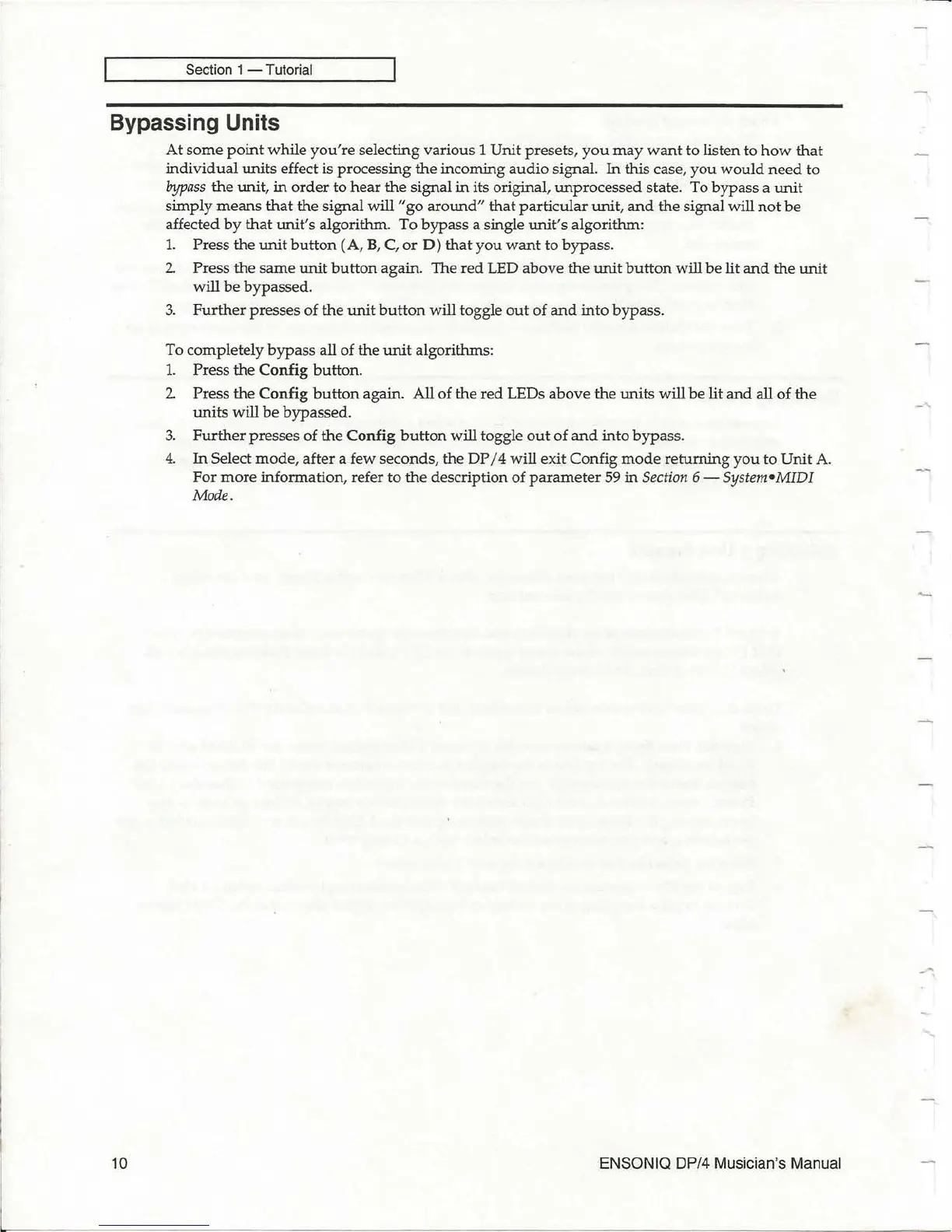

Bypassing Units
10
At some point while you're selecting various 1 Unit presets, you may want to listen to how that
individual units effect is processing the incoming audio signal. In this case, you would need to
bypass the unit, in order to hear the signal in its original, unprocessed state. To bypass a unit
simply means that the signal willI/go around" that particular unit, and the signal will not be
affected by that unit's algorithm. To bypass a single unit's algorithm:
1.
Press the unit button (A, B, C, or D) that you want to bypass.
2
Press the same unit button again. The red LED above the unit button will be lit and the unit
will be bypassed .
3. Further presses of the unit button will toggle out of and into bypass .
To completely
bypass all of the unit algorithms:
1. Press the Config button.
2 Press the Config button again. All of the red LEDs above the units will be lit and all of the
units will be bypassed.
- -
3. Further presses of the Config button will toggle out of and into bypass .
4. In Select mode , after a few seconds, the DP / 4 will exit Config mode returning you to Unit A.
For more information, refer to the description of parameter 59 in Section 6 - System-MIDI
Mode .
