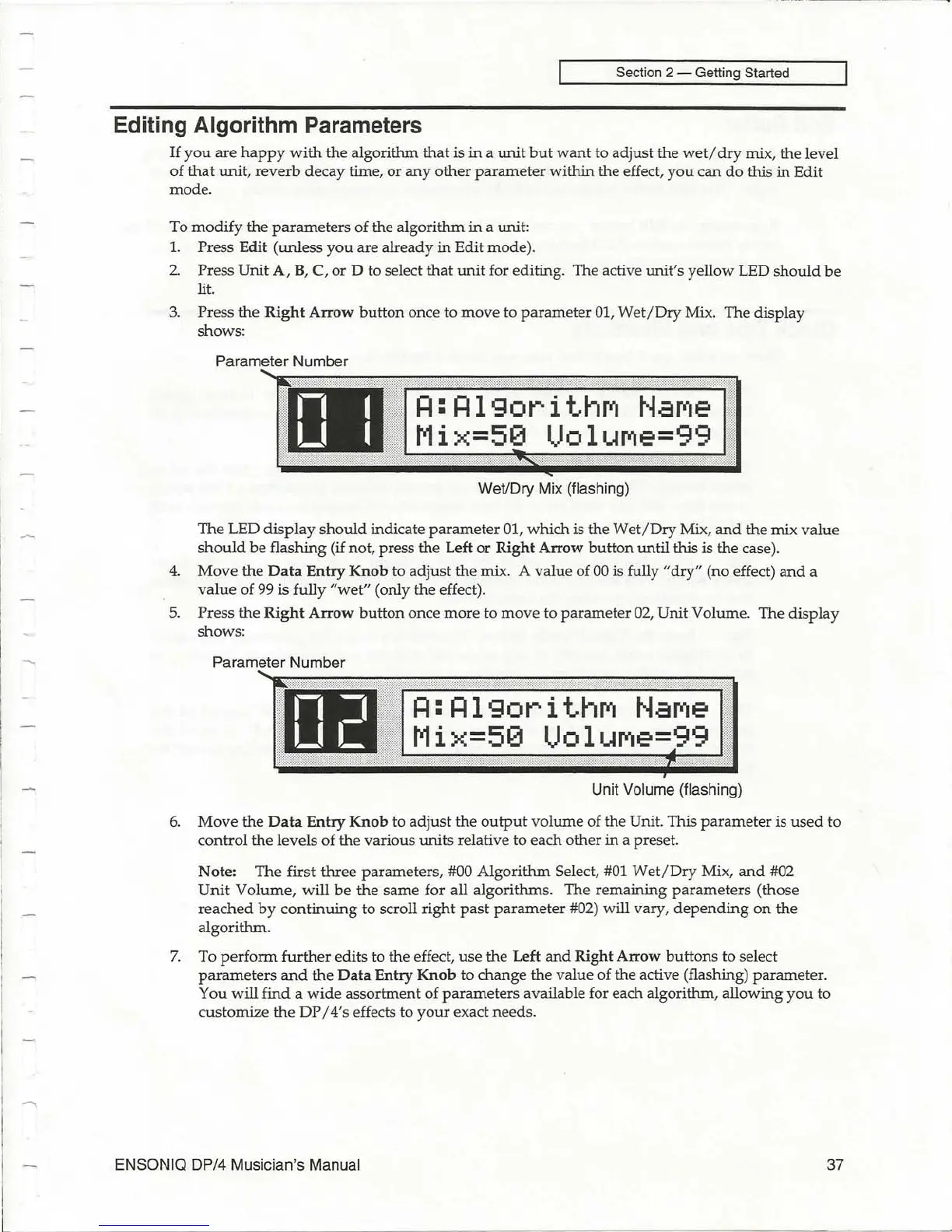

Section
2 -
Getting
Started
Editing
Algorithm
Parameters
If
you
are
happy
with
the
algorithm
that
is
in
a
unit
but
want
to
adjust
the
wet/
dry
mix,
the
level
of
that
unit,
reverb
decay
time,
or
any
other
parameter
within
the
effect,
you
can
do
this
in
Edit
mode.
To
modify
the
parameters
of
the
algorithm
in
a
unit:
1
.
Press
Edit
(unless
you
are
already
in
Edit
mode)
.
2
Press
Unit
A,
H,
C,
or
D
to
select
that
unit
for
editing.
The
active
unit's
yellow
LED
should
be
lit
.
3.
Press
the
Right
Arrow
button
once
to
move
to
parameter
01,
Wet/Dry
Mix.
The
display
shows
:
Parameter
Number
nl
UI
~:~lgorithM
NaMe
Mix=50
UoluMe=99
Wet/Dry
Mix
(flashing)
The
LED
display
should
indicate
parameter
01
,
which
is
the
Wet/Dry
Mix,
and
the
mix
value
should
be
flashing
(if
not,
press
the
Left
or
Right
Arrow
button
until
this
is
the
case).
4.
Move
the
Data
Entry
Knob
to
adjust
the
mix
.
A
value
of
00
is
fully"
dry"
(no
effect)
and
a
value
of
99
is
fully
"wet"
(only
the
effect)
.
5.
Press
the
Right
Arrow
button
once
more
to
move
to
parameter
02,
Unit
Volume.
The
display
shows
:
Parameter
Number
~:~lgorithM
NaMe
Mix=50
UoluMe=99
Unit
Volume
(flashing)
6.
Move
the
Data
Entry
Knob
to
adjust
the
output
volume
of
the
Unit.
This
parameter
is
used
to
control
the
levels
of
the
various
units
relative
to
each
other
in
a
preset.
Note:
The
first
three
parameters,
#00
Algorithm
Select,
#01
Wet/Dry
Mix,
and
#02
Unit
Volume,
will
be
the
same
for
all
algorithms.
The
remaining
parameters
(those
reached
by
continuing
to
scroll
right
past
parameter
#02)
will
vary,
depending
on
the
algorithm.
7.
To
perform
further
edits
to
the
effect,
use
the
Left
and
Right
Arrow
buttons
to
select
parameters
and
the
Data
Entry
Knob
to
change
the
value
of
the
active
(flashing)
parameter.
You
will
find
a
wide
assortment
of
parameters
available
for
each
algorithm,
allowing
you
to
customize
the
DP
/4's
effects
to
your
exact
needs
.
