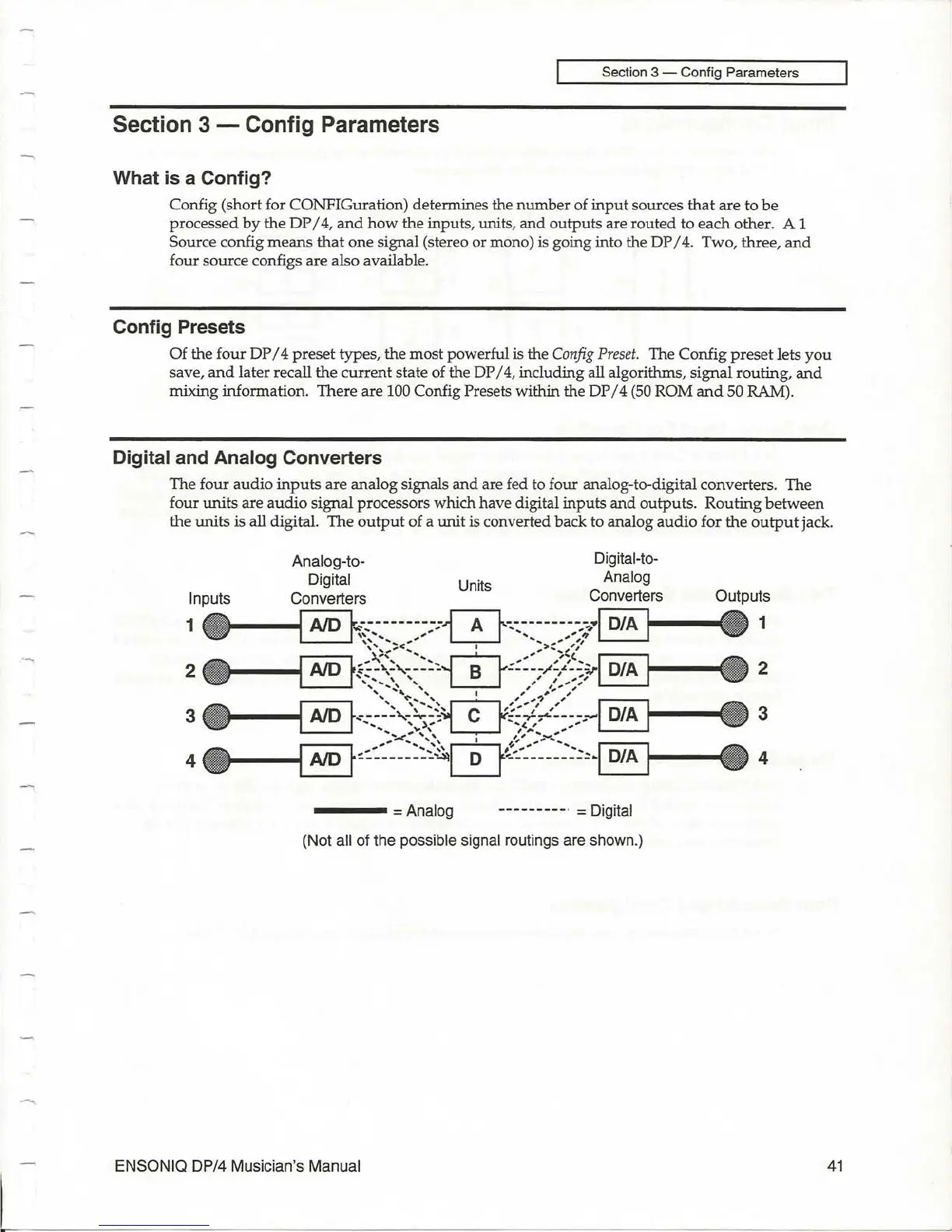

Section 3 - Config Parameters
Section 3 - Config Parameters
What is a Config?
Config
(short
for
CONFIGuration)
determines the
number
of
input
sources
that
are
to
be
processed
by
the
DP
/ 4,
and
how
the
inputs, units,
and
outputs
are
routed
to
each
other. A 1
Source config
means
that
one
signal
(stereo
or
mono) is
going
into the
DP
/4
.
Two,
three,
and
four
source
configs
are
also
available.
Config Presets
Of
the
four
DP
/ 4
preset
types,
the
most
powerful
is the
Con
fig
Preset.
The
Config
preset
lets
you
save,
and
later
recall
the
current
state of the
DP
/
4,
induding
all algorithms,
signal
routing,
and
mixing
information.
There
are
100 Config Presets
within
the
DP
/ 4
(50
ROM
and
50 RAM).
Digital and Analog Converters
The
four
audio
inputs
are
analog
signals
and
are fed to four analog-to-digital converters.
The
four
units
are
audio
signal
processors
which
have
digital
inputs
and
outputs.
Routing
between
the
units
is all digital.
The
output
of
a
unit
is converted
back
to
analog
audio
for
the
output
jack.
2_---11
AID
3f)
lAID
4
---=Analog
Units
Digital-to-
Analog
Converters
---------
. = Digital
(Not all of the possible signal routings are shown.)
ENSONIQ DP/4 Musician's Manual
