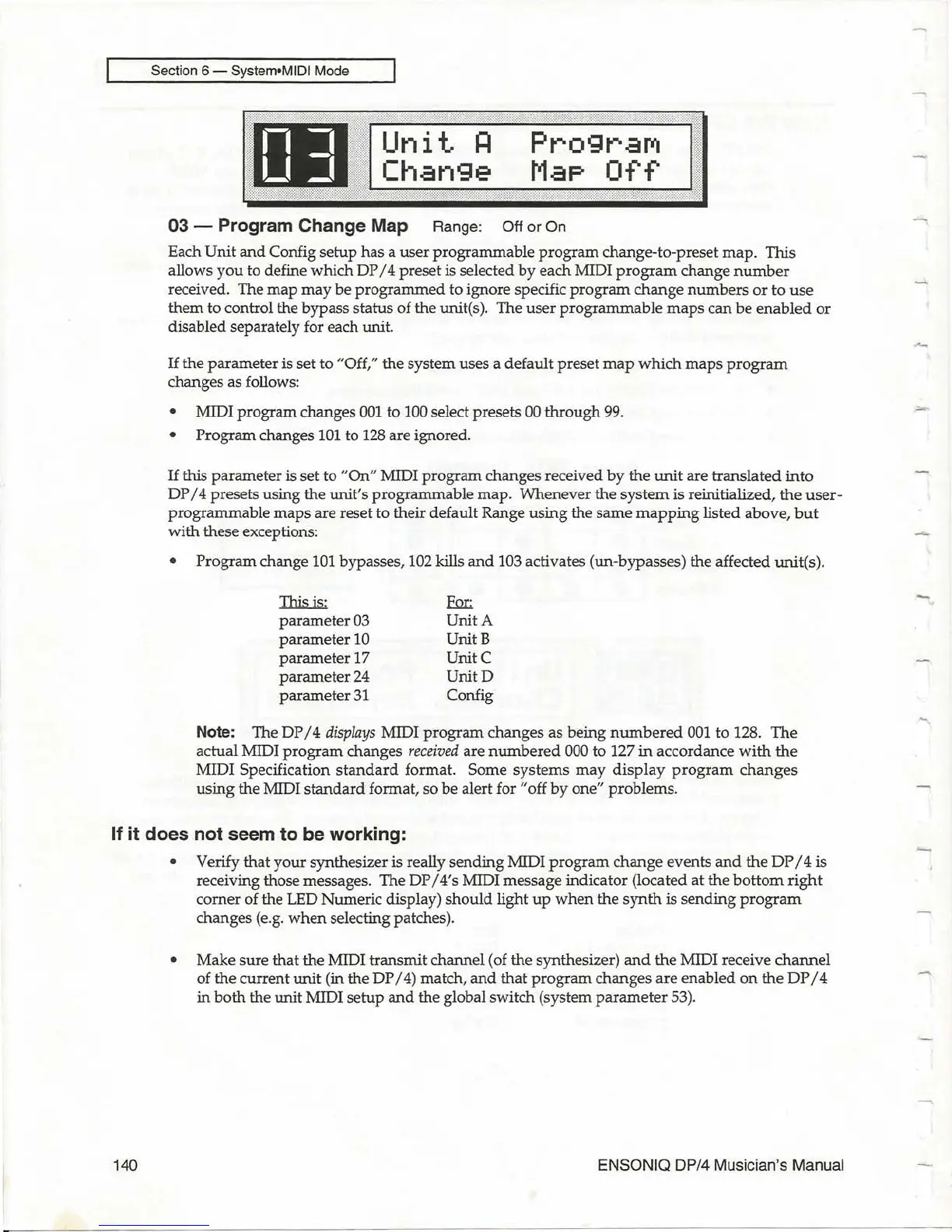

Section 6 - System-MIDI Mode
Unit
1=1
Change
PrograM
Map
Off
03 - Program Change Map Range: Off or On
Each
Unit
and
Config setup has a
user
programmable
program
change-to-preset
map.
This
allows
you
to define
which
DP / 4 preset is selected
by
each MIDI
program
change
number
received. The
map may
be
programmed
to ignore specific
program
change
numbers
or
to
use
them
to control the bypass status of the unit(s). The
user
programmable
maps
can
be
enabled
or
disabled separately for each unit.
If
the parameter is set to "Off,"
the
system uses a default preset
map
which
maps
program
changes as follows:
• MIDI
program
changes
001
to 100 select presets
00
through
99.
•
Program
changes
101
to
128
are ignored.
If
this parameter is set to
"On"
MIDI
program
changes received
by
the
unit
are translated
into
DP
/ 4 presets using the
unit's
programmable map. Whenever the
system
is reinitialized,
the
user-
programmable
maps
are reset to their default Range
using
the
same
mapping
listed above,
but
with
these exceptions:
•
Program
change
101
bypasses, 102 kills
and
103 activates (un-bypasses) the affected unit(s).
This is:
For:
parameter
03
Unit A
parameter
10
UnitB
parameter 17
UnitC
parameter
24
UnitD
parameter
31
Config
Note: The DP / 4
displays
MIDI
program
changes as
being
numbered
001
to 128. The
actual MIDI
program
changes
received
are
numbered
000
to 127
in
accordance
with
the
MIDI Specification
standard
format. Some
systems
may
display
program
changes
using
the MIDI
standard
format, so
be
alert
for"
off
by
one" problems.
If it does not seem to be working:
• Verify that
your
synthesizer is really
sending
MIDI
program
change events
and
the
DP
/ 4 is
receiving those messages. The
DP
/4's
MIDI message indicator (located at the
bottom
right
comer
of the LED Numeric display) should light
up
when
the
synth
is
sending
program
changes (e.g.
when
selecting patches).
• Make
sure
that
the
MIDI transmit channel (of the synthesizer)
and
the
MIDI receive
channel
of
the
current
unit
(in the
DP
/
4)
match,
and
that
program
changes are enabled
on
the
DP
/ 4
in
both
the unit MIDI setup
and
the global switch (system
parameter
53).
140
ENSONIQ DP/4 Musician's Manual
-
