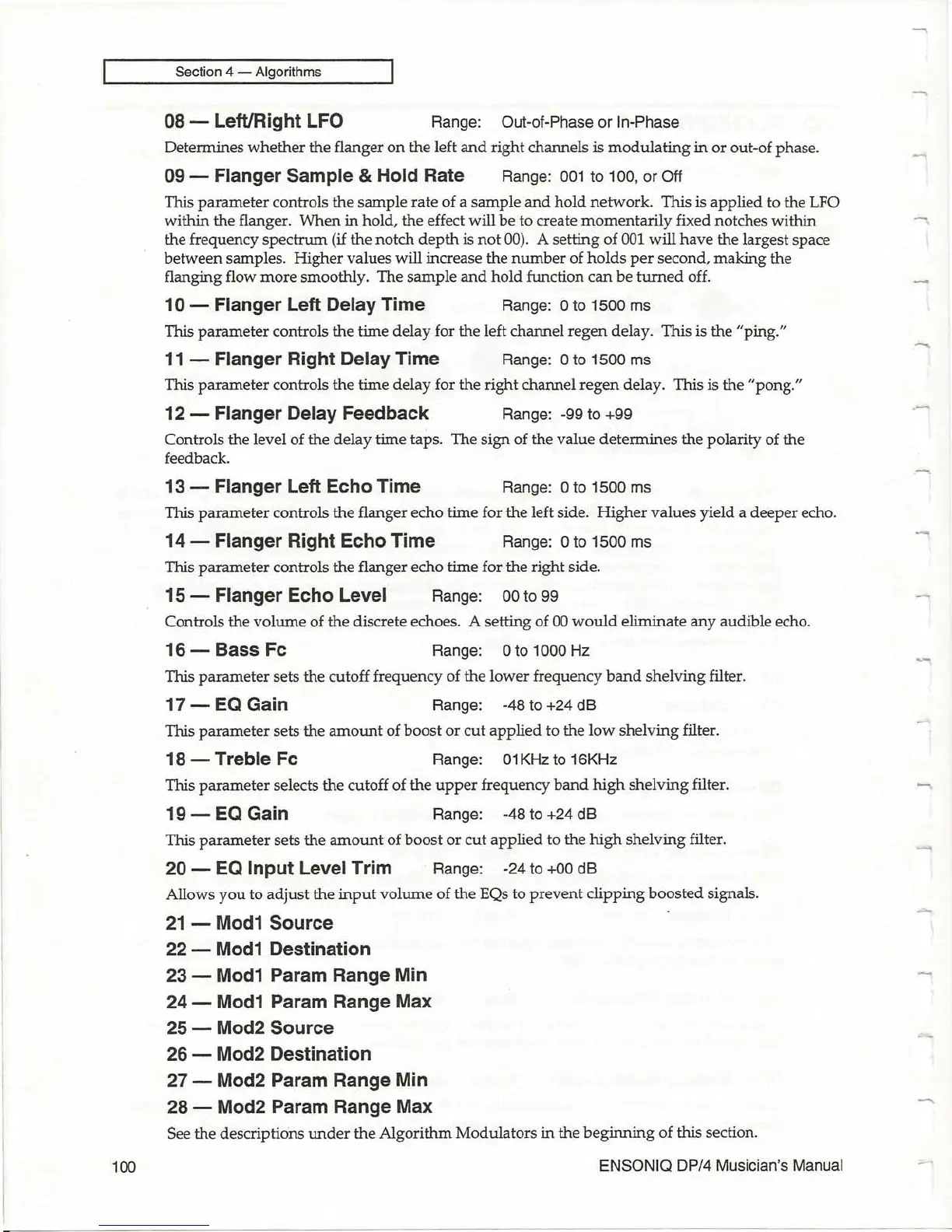

100
Section 4 - Algorithms
08
- Left/Right LFO
Range: Out-of-Phase
or
In-Phase
Determines
whether
the flanger
on
the left
and
right channels is
modulating
in
or out-of phase.
09 - Flanger Sample & Hold Rate Range:
001
to 100, or Off
This
parameter
controls the sample
rate
of a sample
and
hold
network. This is applied to the LFO
within
the
flanger.
When
in
hold, the effect will
be
to create
momentarily
fixed notches within
the frequency
spectrum
(if
the
notch
depth
is
not
00). A setting of
001
will
have
the largest space
between samples.
Higher
values will increase the
number
of
holds
per
second,
making
the
flanging flow
more
smoothly. The
sample
and
hold
function
can
be
turned
off.
10
- Flanger Left Delay Time
Range: 0 to 1500 ms
This
parameter
controls the time delay for the left channel
regen
delay. This is the "ping."
11
- Flanger Right Delay Time Range: 0 to 1500 ms
This
parameter
controls the time delay for
the
right channel
regen
delay. This is the
"pong."
12 - Flanger Delay Feedback Range: -99 to +99
Controls the level of the delay time taps. The
sign
of the value
determines
the polarity of the
feedback.
13 - Flanger Left Echo Time Range: 0 to 1500 ms
This
parameter
controls the flanger echo time for the left side.
Higher
values yield a
deeper
echo.
14 - Flanger Right Echo Time Range: 0 to 1500 ms
This
parameter
controls the flanger echo time for the right side.
15 - Flanger Echo Level Range: 00 to
99
Controls the
volume
of the discrete echoes. A setting of
00
would
eliminate
any
audible echo.
16-
Bass Fc
Range: 0 to 1000 Hz
This parameter sets the cutoff frequency of the lower frequency
band
shelving filter.
17-EQ
Gain
Range: -48 to +24 dB
This
parameter
sets the
amount
of boost
or
cut
applied to the
low
shelving filter.
18 - Treble Fc
Range:
01
KHz
to 16KHz
This
parameter
selects the cutoff of
the
upper
frequency
band
high
shelving filter.
19 - EQ Gain Range: -48 to +24 dB
This
parameter
sets the
amount
of boost
or
cut
applied to the
high
shelving filter.
20 - EQ Input Level Trim
Range: -24
to
+00 dB
Allows
you
to adjust the
input
volume
of
the
EQs to
prevent
clipping
boosted
signals.
21
- Mod1 Source
22 -
Mod1
Destination
23 -
Modl Param Range Min
24 -
Modl
Param Range Max
25
- Mod2 Source
26 - Mod2 Destination
27 - Mod2 Param Range Min
28 - Mod2 Param Range Max
See
the
descriptions
under
the Algorithm Modulators
in
the
beginning
of this section.
ENSONIQ DP/4 Musician's Manual
