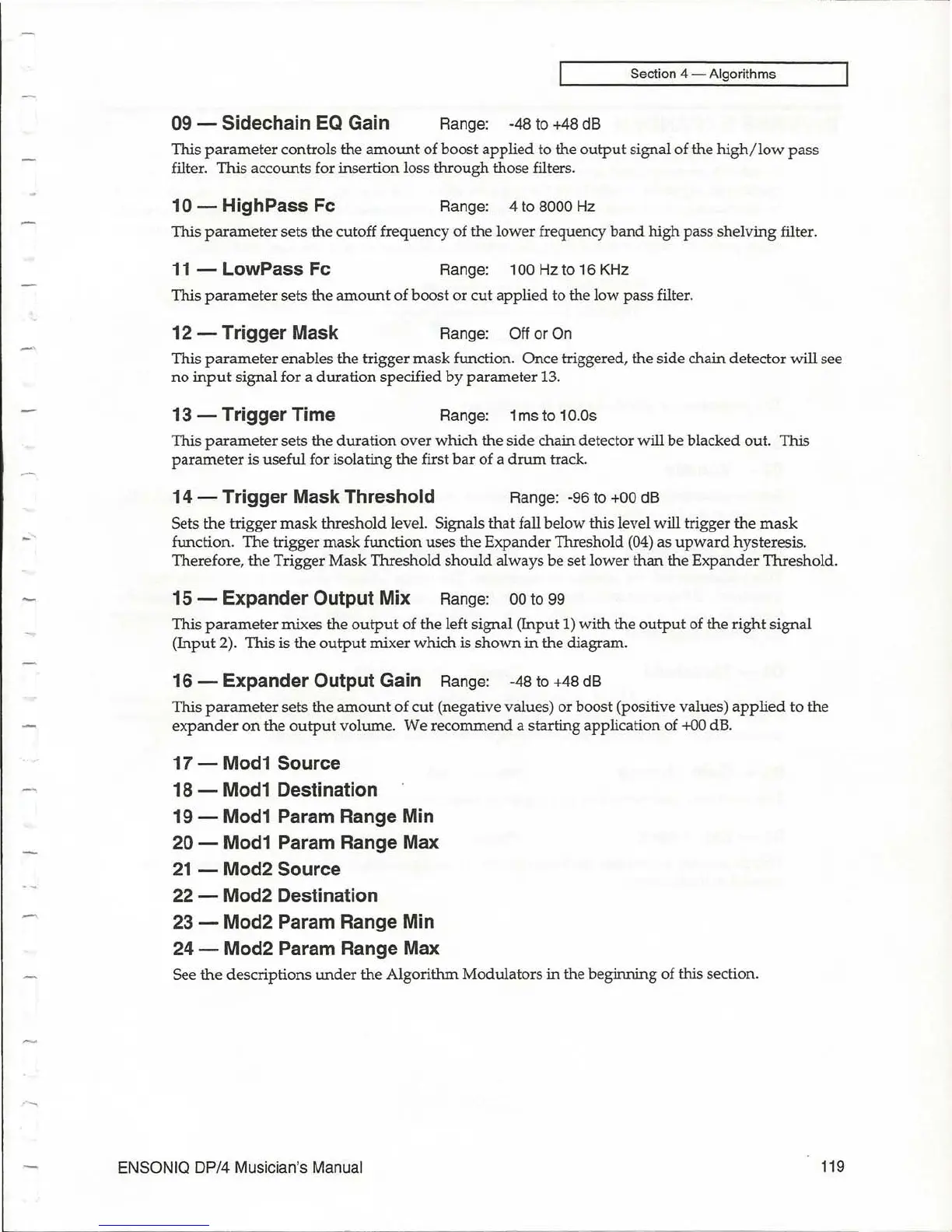

Section 4 - Algorithms
09 - Sidechain
EQ
Gain Range: -48 to
+48
dB
This
parameter
controls the
amount
of boost applied to the
output
signal of the
high/low
pass
filter. This accounts for insertion loss
through
those filters.
10
- HighPass Fc
Range: 4 to
8000
Hz
This
parameter
sets the cutoff frequency of the lower frequency
band
high
pass shelving filter.
11
- LowPass Fc
Range: 100
Hz
to
16
KHz
This
parameter
sets the
amount
of boost or
cut
applied to the low pass filter.
12 - Trigger Mask
Range: Off or
On
This
parameter
enables the trigger
mask
function. Once triggered, the side chain detector will see
no
input
signal for a
duration
specified
by
parameter
13.
13 - Trigger Time
Range: 1
ms
to 10.0s
This
parameter
sets the
duration
over
which the side chain detector will be blacked out. This
parameter
is useful for isolating
the
first
bar
of a
drum
track.
14 - Trigger Mask Threshold Range:
-96
to +00
dB
Sets
the
trigger
mask
threshold level. Signals that fall below this level will trigger
the
mask
function. The trigger
mask
function uses the Expander Threshold
(04)
as
upward
hysteresis.
Therefore,
the
Trigger Mask Threshold
should
always be set lower
than
the
Expander
Threshold.
15 - Expander Output Mix Range:
00
to
99
This
parameter
mixes the
output
of the left signal (Input
1)
with the
output
of the right signal
(Input 2). This is
the
output
mixer which is
shown
in
the diagram.
16 - Expander Output Gain Range:
-48
to
+48
dB
This
parameter
sets the
amount
of
cut
(negative values) or boost (positive values)
applied
to the
expander
oli.
the
output
volume. We recommend a starting application of
+00
dB.
17 - Mod1 Source
18 - Mod1 Destination
19 - Mod1 Param Range Min
20 - Mod1 Param Range Max
21
- Mod2 Source
22 - Mod2 Destination
23 - Mod2 Param Range Min
24 - Mod2 Param Range Max
See
the
descriptions
under
the Algorithm Modulators in the beginning of this section .
ENSONIQ
DP/4
Musician's Manual
119
--
~
