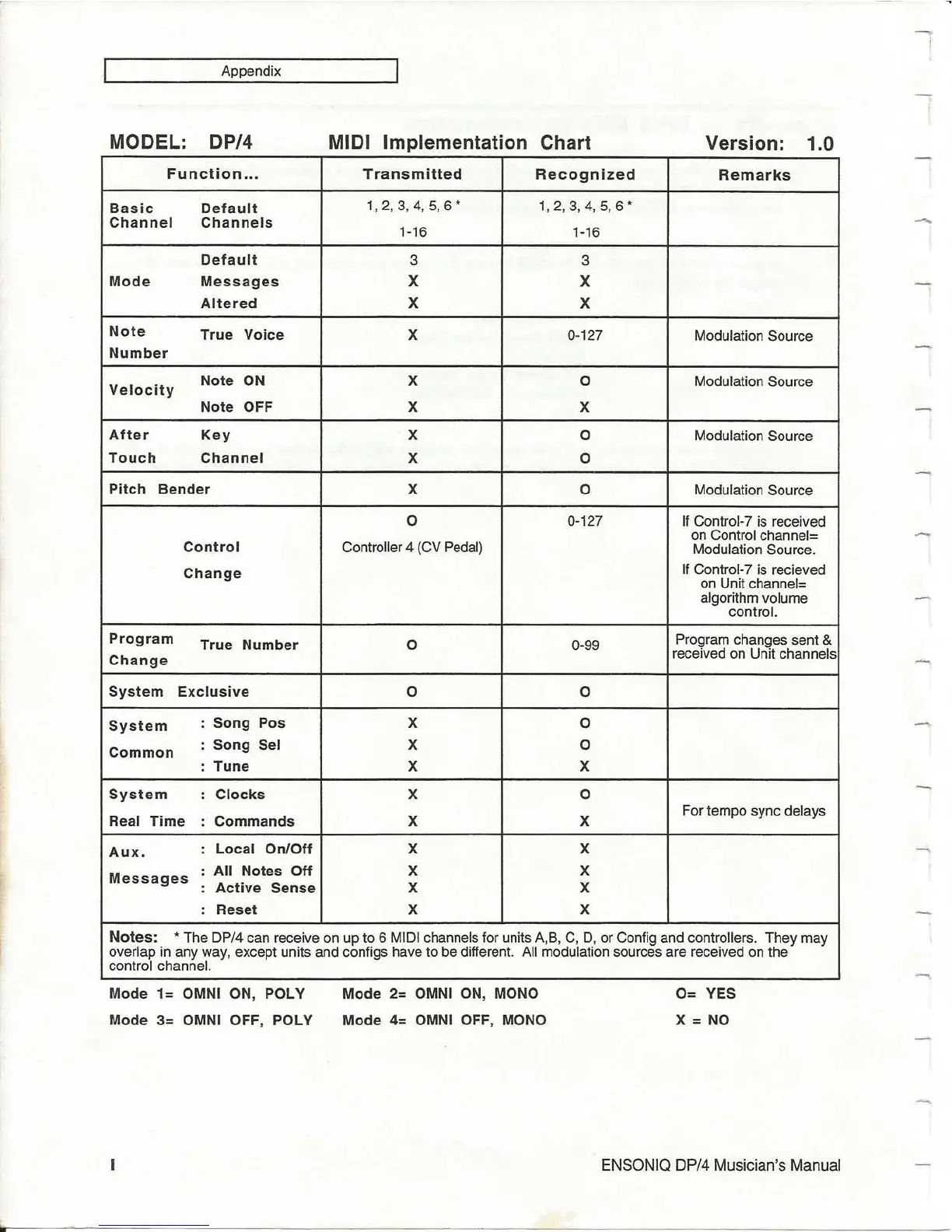

MODEL: DP/4 MIDI Implementation Chart
Version: 1.0
Function •••
Transmitted
Recognized
Remarks
Basic Default
1, 2, 3, 4, 5, 6 *
1, 2, 3, 4, 5, 6 *
Channel Channels
1-16
1-16
Default
3 3
Mode Messages
X X
Altered X
X
Note
True Voice
X 0-127
Modulation Source
Number
Velocity
Note
ON X
0 Modulation Source
Note OFF X
X
After
Key
X
0
Modulation Source
Touch
Channel
X 0
Pitch Bender
X 0
Modulation Source
0 0-127
If Control-7 is received
on Control channel=
Control Controller 4 (CV Pedal)
Modulation Source.
Change
If Control-7 is recieved
on Unit channel=
algorithm
volume
control.
Program
True Number 0
0-99
Program changes sent &
Change
received on Unit channels
System
Exclusive
0 0
System
: Song Pos X
0
Common
:
Song
Sel X 0
: Tune X X
System : Clocks
X 0
Real Time
:
Commands X X
For tempo sync delays
Aux.
: Local On/Off X X
Messages
: All Notes Off X X
: Active
Sense X
X
:
Reset X
X
Notes: * The DP/4 can receive on up to 6 MIDI channels for units A,B, C, D, or Config and controllers.
They may
overlap in any way, except units and configs have to be different.
All modulation sources are received on the
control channel.
Mode 1= OMNI ON, POLY
Mode 3= OMNI OFF, POLY
Mode 2= OMNI ON, MONO
Mode 4= OMNI OFF, MONO
0= YES
X = NO
