3.1.7. Battery Test Section
Indicates the system power status of the EVRC2A. AC supply indicates the EVRC2A has external
power source. Charge indicates the EVRC2A is charging Battery. Discharge indicates the EVRC2A
has failed in battery load testing.
AC SUPPLY
Status of supplying the external AC
power.
CHARGE
Status of charging the battery.
DISCHARGE
Status of discharged battery.

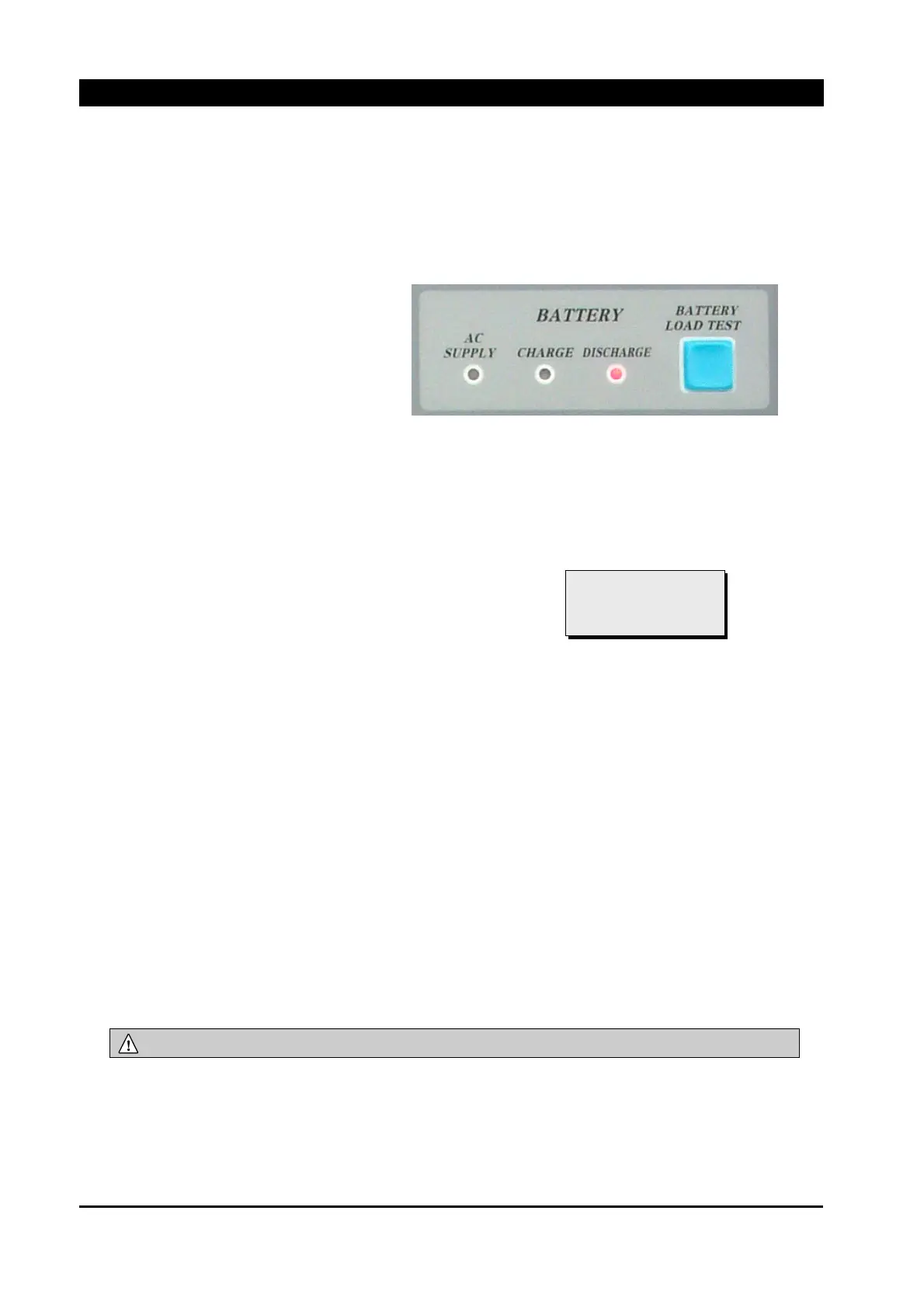

Figure 3-8. Battery Test Section
BATTERY LOAD TEST
Push-button for battery load test.
LCD displays during Battery Load Testing.
LOAD(V) : On Test, Battery is disconnected from the
Figure 3-9. Battery Test Mode
charge circuit and connect the battery with load resistor and check the battery. Load
resistor shall be connected with AC supply.
CHARGE[V] : Display the voltage of charge circuit.
STATUS : Display Battery status and charge circuit status.
- B-OK : When the battery voltage is between 21V ~ 28V
- B-HI : When the battery voltage is over 28V
- B-DF : When the battery voltage is between 15V ~ 21V
- B-LO : When the battery voltage is below 15V
- C-OK : When the charge circuit is between 25V ~29V
- C-HI : When the charge circuit is over 29V
- C-LO : When the charge circuit is below 25V
NOTE :
All information above is provided by remote mode.
[BATTERY TEST MODE]
LOAD(V) : 25.00
CHARGE(V): 26.50
STATUS : B-OK C-OK
