Enterasys D2G124-12 - Connecting Network Cabling and Attaching the Wire Relief Bracket; Attaching a Network Cable (UTP Cable to RJ45 Port Shown)

Mounting the Switch
Enterasys D-Series Hardware Installation Guide 2-21
Connecting Network Cabling and Attaching the Wire Relief Bracket
Thewirereliefbracketisdesignedtoholdnetworkcablessecurelyinplaceandpreventtampering
oncecablingisconnectedtoswitchports.Toattachthewirereliefbrackettothelockboxtray:
1. AttachnetworkcablesasshowninFigure 2‐19.Referto“ConnectingtotheNetwork”on
page 2‐28
formoreinformation.

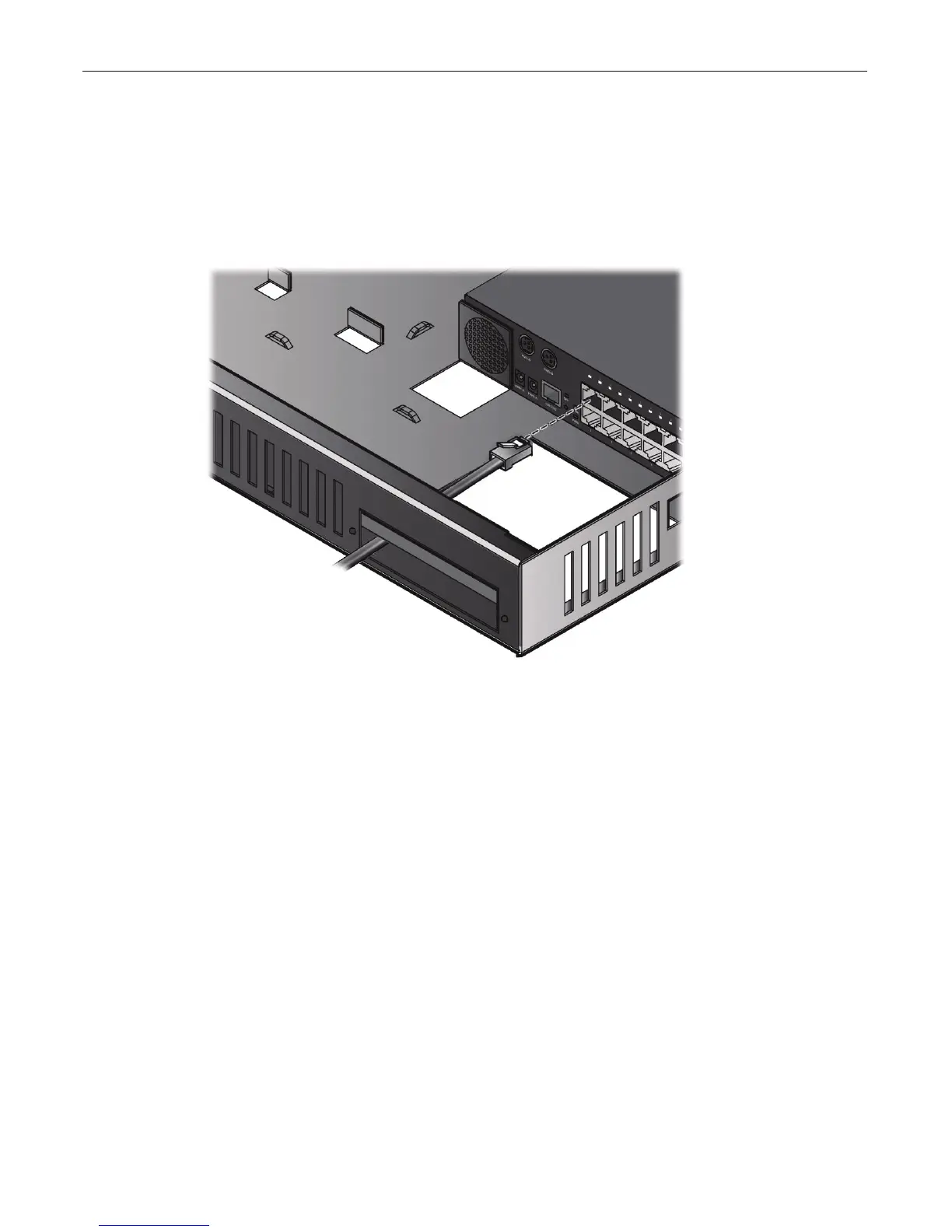

Figure 2-19 Attaching a Network Cable (UTP cable to RJ45 port shown)
2. Alignthewirereliefbracketwiththeflangeandthetwoscrewholesonthesideofthelockbox
trayasshowninFigure 2‐20onpage 2‐22.
