Enterasys D2G124-12 - Attaching the D2 Lockbox Cover

Mounting the Switch
2-24 Installation

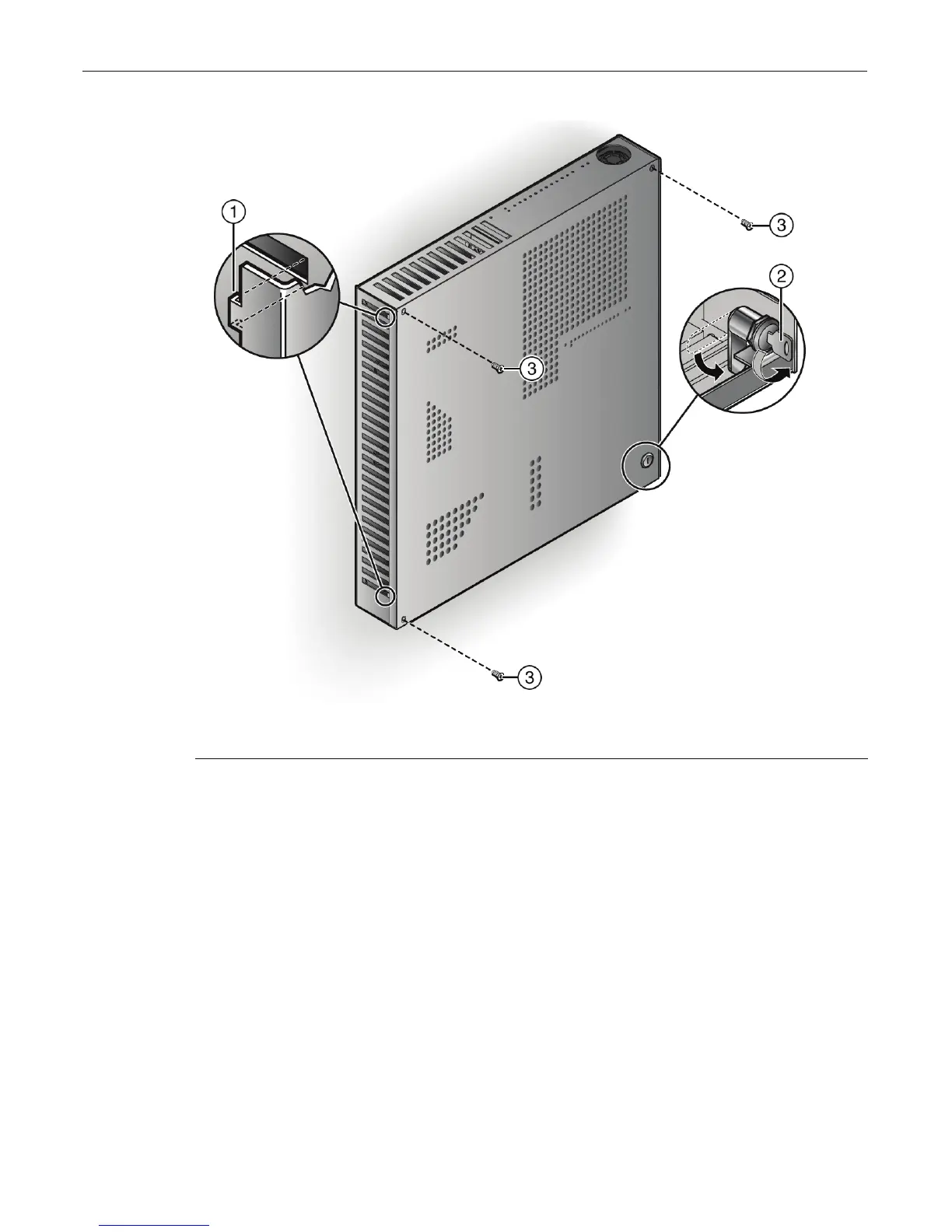

Figure 2-22 Attaching the D2 Lockbox Cover
1. Securethecoveroverthetopofthelockboxassemblybylockingthemountingtabsoverthe
lipinthesideofthemountingtray.
2. Slidethelatchonthelockassemblytothepositionshownuntilitclicksintoplace.
3. Lockthelockboxbyturningtheprovidedkeyinthe
lockcounter‐clockwise.
4. Insertthethreecoverscrews(provided)inthepositionsshownandtightensecurely.
5. Returnthelockboxkeytoasecurelocation.
1 Cover locking tabs 3 Cover fastening screws (three)
2 Latch and lock assembly (locking position)
