7.5.3 Multi-channel

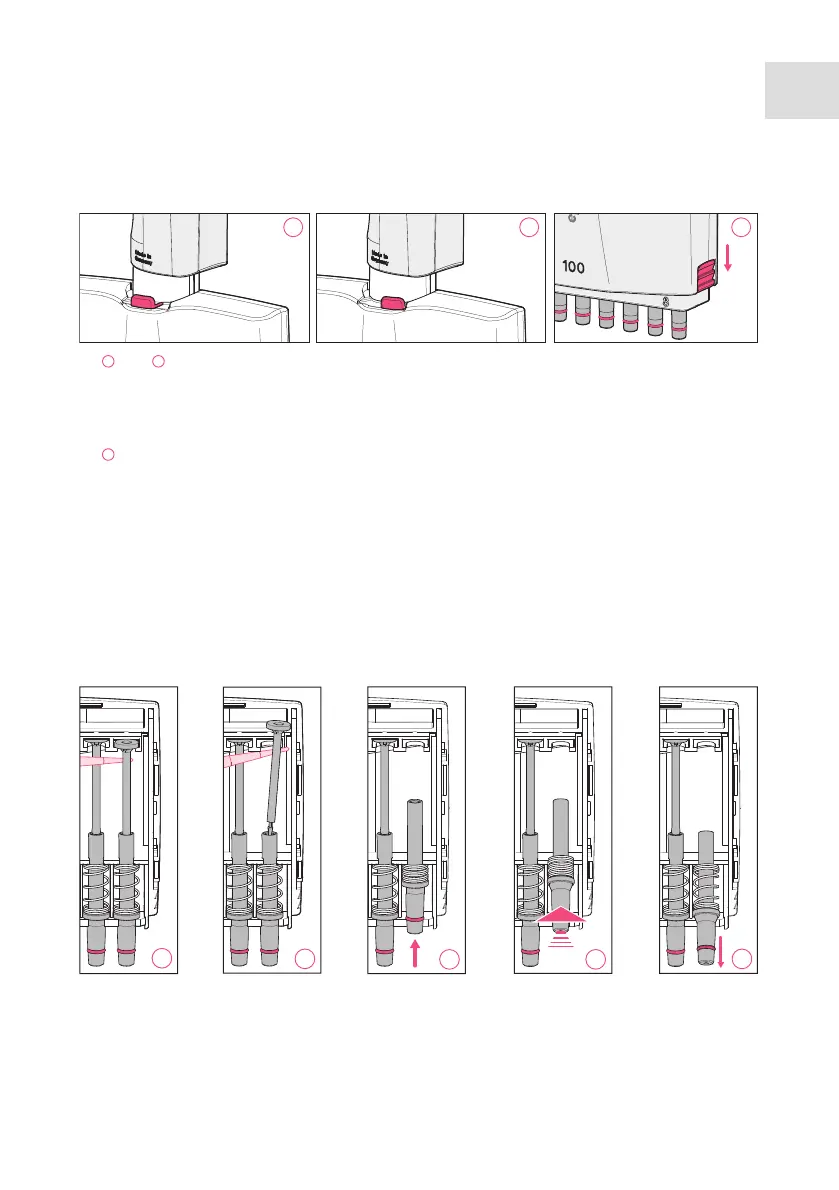

7.5.3.1 Loosen and open the 10 μL, 100 μL and 300 μL multi-channel lower part
1. and : Slide the lever on the lower part to the left or right. Pull the lower part down
to cancel the magnetic coupling of the lower part to the upper part.
This separates the lower part from the upper part so that it can be removed.
2. Put down the lower part with the lever facing downward.
3. : Slide the two latches (right and left at the side) down using a coin.
The lower part is still lying on the table with the lever facing downward.
4. Remove the cover plate facing upward and the integrated ejector rail.
Do not remove the ejector rail from the cover panel. The spring for the ejector rail may
accidentally come off and get lost during this step.
7.5.3.2 Removing and installing channels
Channels may only be removed and installed if the multi-channel lower part is separated
from the upper part! The channels in the lower parts consist of a piston, cylinder and
spring. The channels for 100 L and 300 L are equipped with an O-ring at the tip cone.
1 2 3
1 2
3
