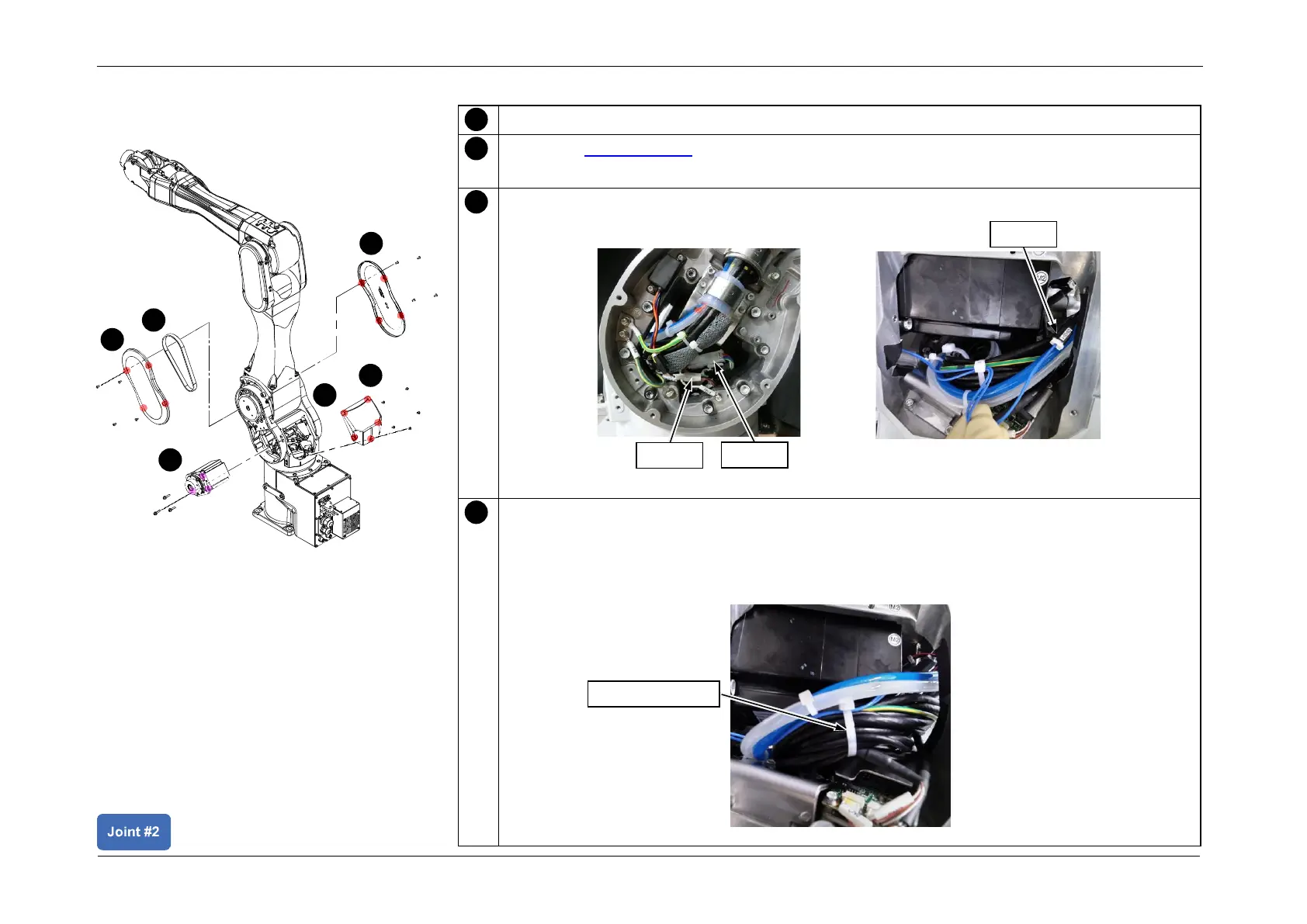

Installing the Motor Unit
Insert the J2 Motor unit inside Arm2.
Install the J2 Timing Belt.
Perform steps  to .
Connect the J2 Motor Connectors (CN121, CN321, CN420).
Bind CN420 (J2 brake cable), CN3 (gyro cable), and other cables.
Binding position
CN3: Approx. 65 mm from the connector end
CN420-1: Approx. 125 mm from the connector end
1
2
3
CN420
CN121
CN321
4
Wire tie (AB150)
3
2
1
5
6
6
