C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-134 Rev.1

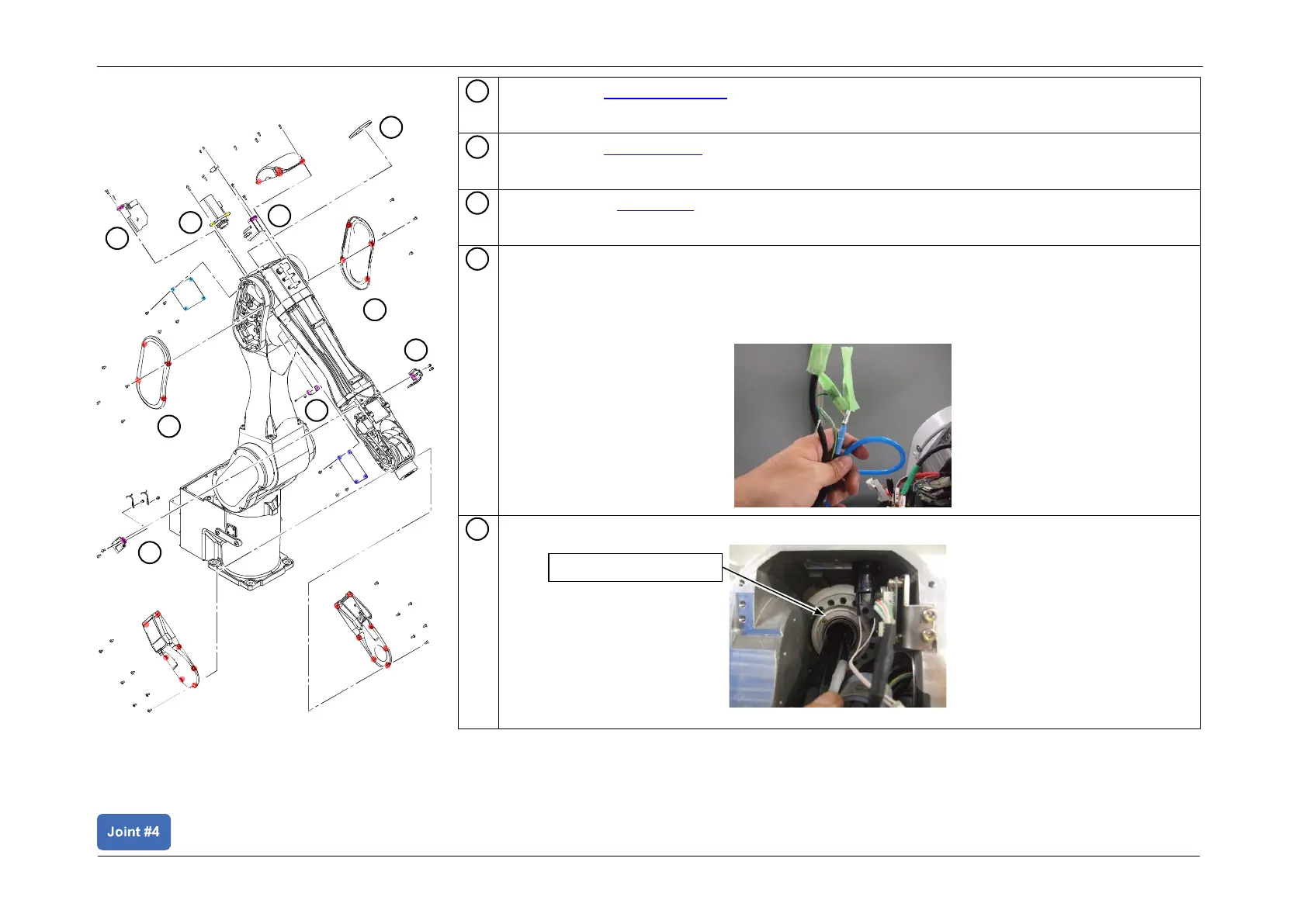

Remove the Arm4 side cover (both sides).
Remove the J4 Motor unit.
Removing the Cable unit.
Perform step  through 11 of step .
Protect pulled-out connectors with masking tape or similar.
POINT
This protects connector clips from breaking and adherence of grease during subsequent
work.
Remove the J4 Timing Belt from Arm3.
4
5
6
7
8
J4 Timing Belt
4
8
5
4
6
6
6
6
6
Removing the Timing Belt
