C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-135 Rev.1

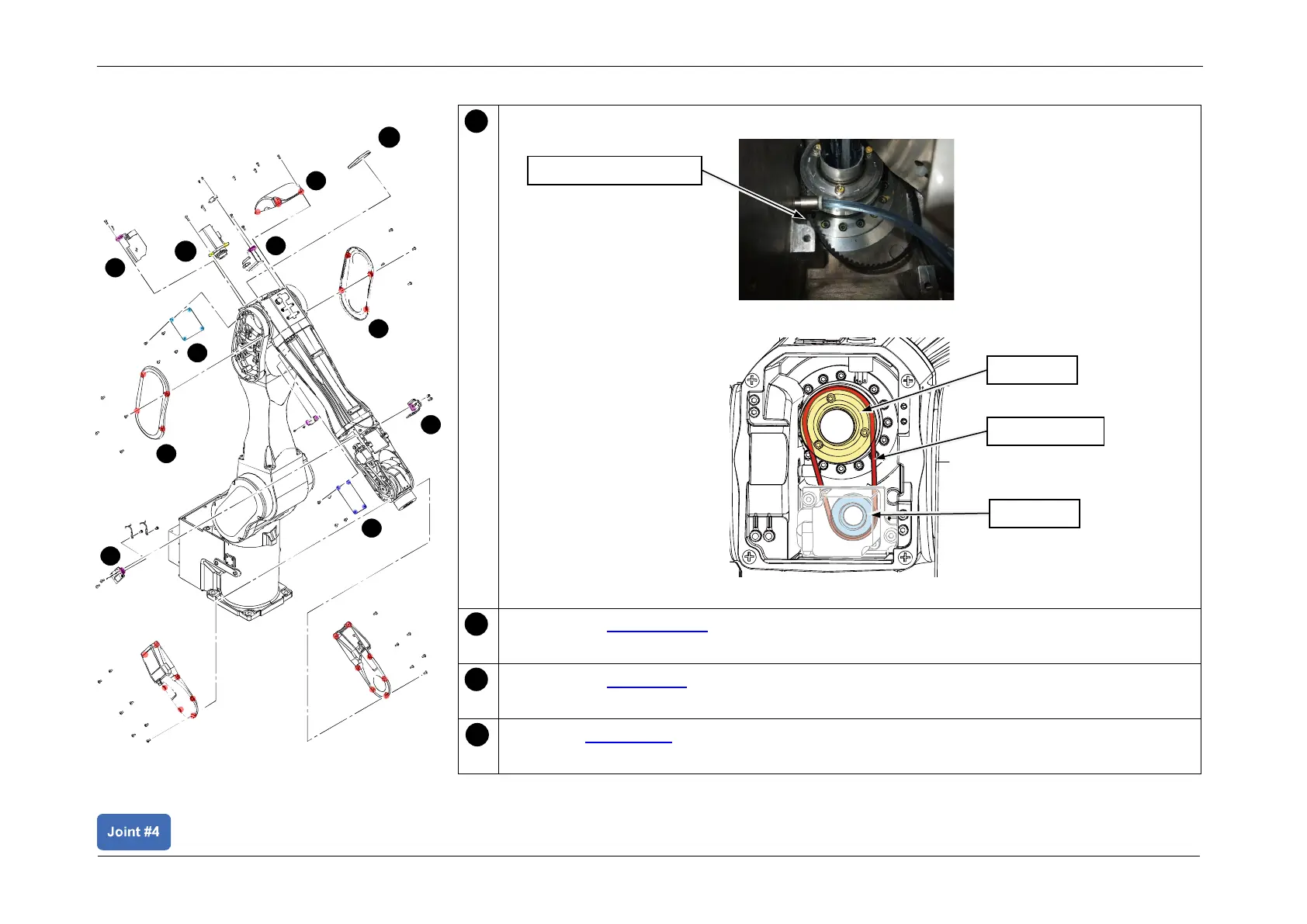

Installing the Timing Belt
Set the J4 Timing Belt on pulley 2.
Installing the J4 Motor Unit.
Perform steps  and .
Installing the Cable Unit.
Perform 3 of step  through step .
Install the Arm3 cover.
1
J4 Timing Belt
Timing Belt
Pulley 2
Pulley 1
2
3
4
1
2
3
4
5
6
7
3
3
3
6
