C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-141 Rev.1

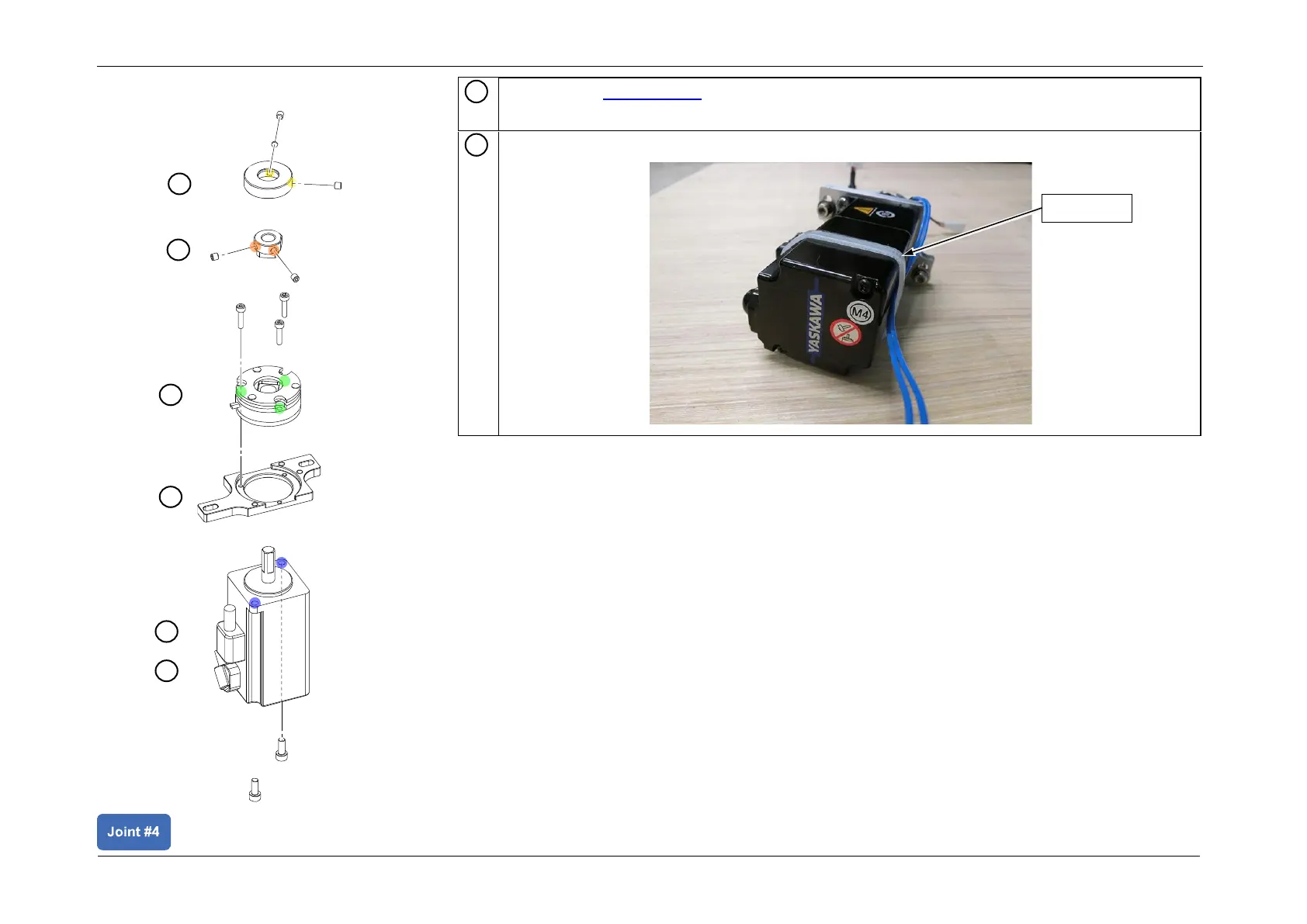

Remove the J4 Motor unit.
Cut the wire tie (AB100) securing the brake and motor cable to the motor.
1
2
Wire tie
1
2
3
4
5
6
Motor Unit Disassembly
