C8-B/C12-B Service Manual Maintenance Disclosure Scope: Maintenance Trained Personnel Only
(C) Seiko Epson Corporation 2-142 Rev.1

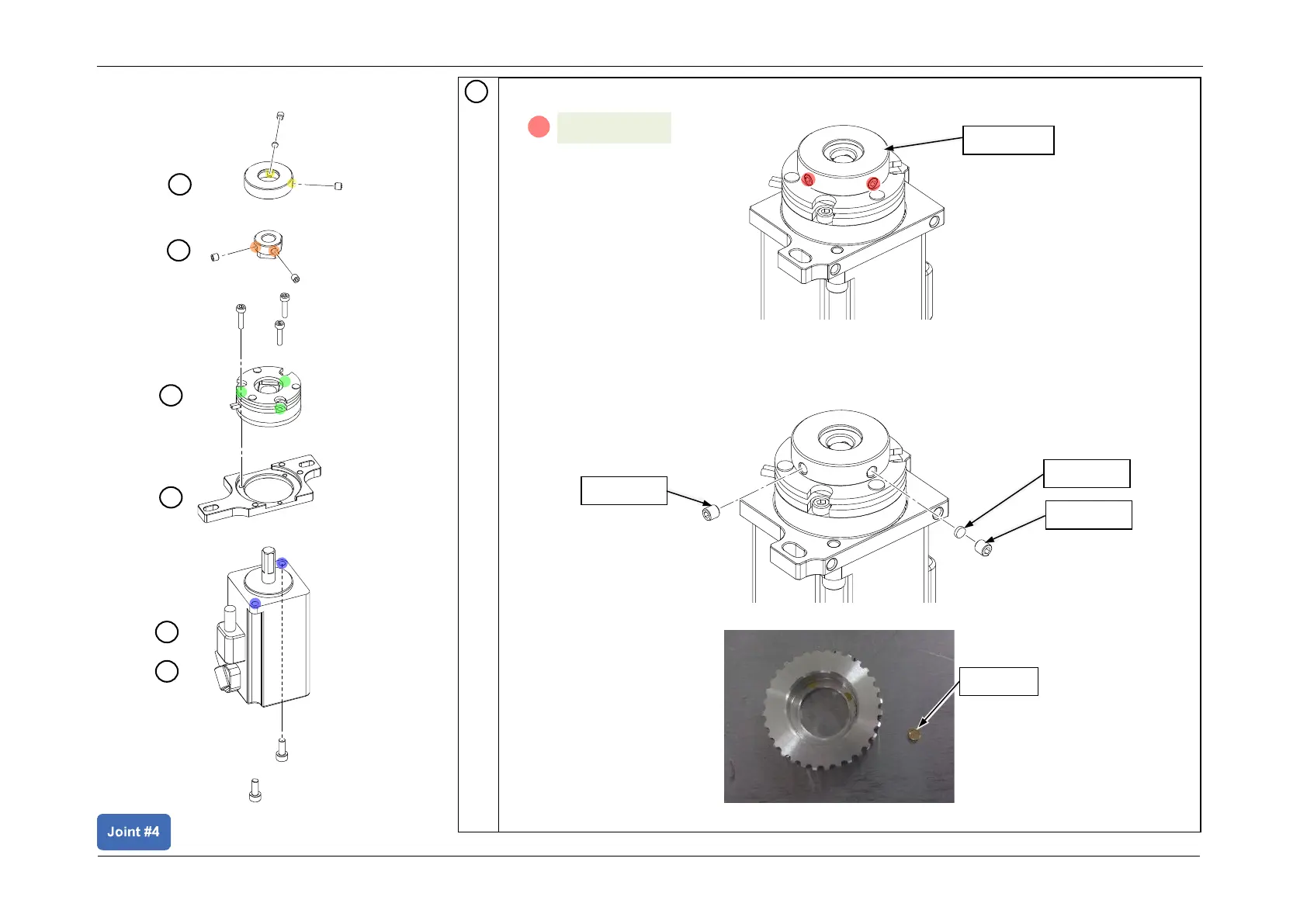

Remove pulley 1.
CAUTION
A brass bushing is included on one of the set screws. When removing the pulley, be
careful not to drop and lose the bushing.
3
Bushing
Screw
Screw
Bushing
S05: 2-M4x4
A
Pulley 1
1
2
3
4
5
6
Motor Unit Disassembly
